(1)

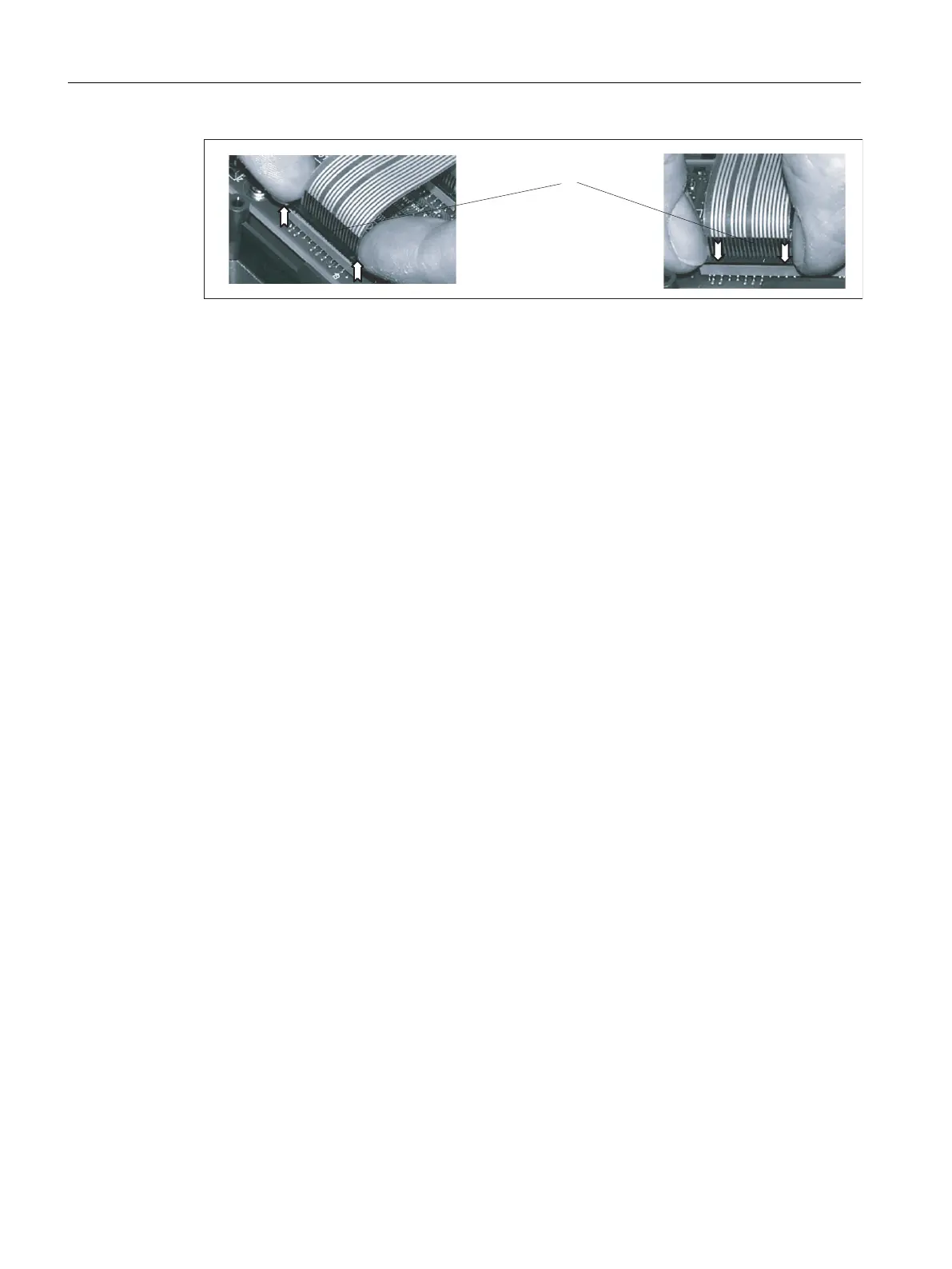

(1) Clamping frame of socket
Figure4-4 Removing (left) and attaching (right) a membrane connector
Unplugging the membrane connector
1. Loosen the dark clamping frame of the socket by pushing it up with your 󹪝ngernails until it
engages in its upper, unlocked position (Fig. left).
2. Carefully pull o󹪜 the membrane connector upward.
Plugging in the membrane connector
1. With the clamping frame in the upper position, carefully plug the membrane connector into
the socket.
2. Lock it in place by pushing down the clamping frame (Figure right).
4.3 Networking
4.3.1 System settings
4.3.1.1 Settings for SINUMERIK solution line
Range of validity
This description is valid for:
• NCU 7x0.3PN with NCU-Basesoftware (Linux-based)
• PCU 50.5 with PCU-Basesoftware (Windows XP, Windows 7)
Introduction
This manual describes the structure and commissioning of the system network with SINUMERIK
solution line control and operator components with Ethernet-based communication. The
fundamentals of the system network are described 󹪝rst, details and special cases are described
in subsequent chapters.
General information and networking
4.3Networking
Handheld Terminal HT 8
36 Equipment Manual, 02/2024, A5E52918633B AA
