7.4 Connecting cable
The connecting cable is an industrial cable, can tolerate bending in-line with what is required in
practice – and is resistant to many solvents and lubricants.
The connecting cable is available in various lengths. You will nd detailed information in
Section: "Accessories".

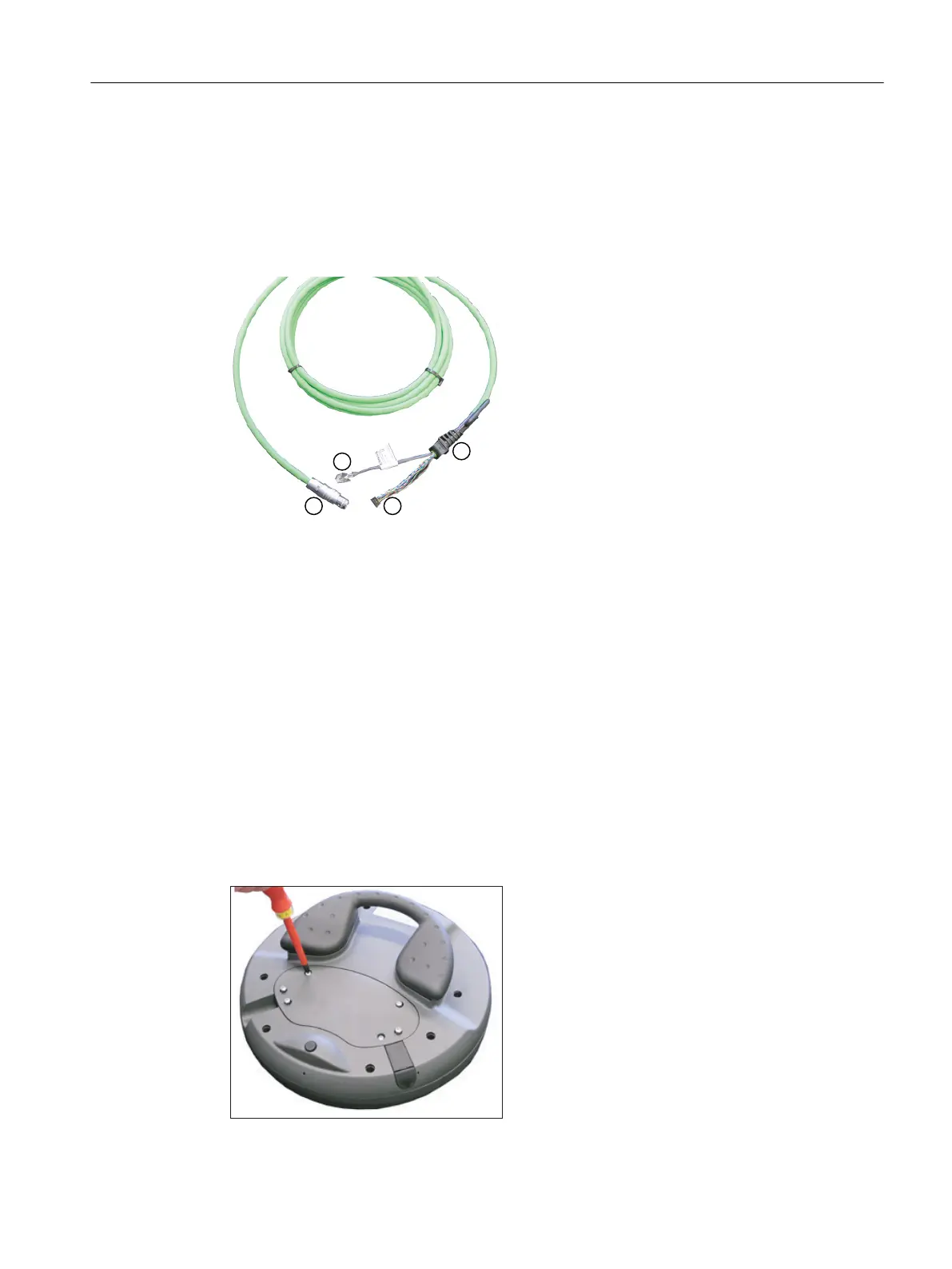

① Metallic push-pull round connector (ODU connector)
② RJ45 plug to connect to the Ethernet
③ Plug connector for enabling button, Emergency Stop, 24 V and safety signals
④ Strain relief device and kink protection
Figure7-9 Connecting cable for the HT 8
The connecting cable is connected to the HT8 using the RJ45 plug connector ② and plug
connector ③. ODU plug connector ① is used to connect the connecting cable with the
terminal box/connecting module MPP. The tightening torque for the nut of the ODU socket is
6.5 Nm.
The HT 8 has two cable entries at the rear for connecting the cable. This makes it possible to
attach the connecting cable at either the right or left side.
One of the cable entries is closed at the factory by a connector in which a USB connection is
integrated (with IP65 cover).
Routing the connecting cable
1. Open the cover by unscrewing the six PT screws
(4 x 20 mm) approximately 1 cm.
To do this, use a Phillips size 2 screwdriver.
Connecting
7.4Connecting cable
Handheld Terminal HT 8
Equipment Manual, 02/2024, A5E52918633B AA 111
