Operating the Touch Panel
To operate the Touch Panel, use the integrated keyboard:

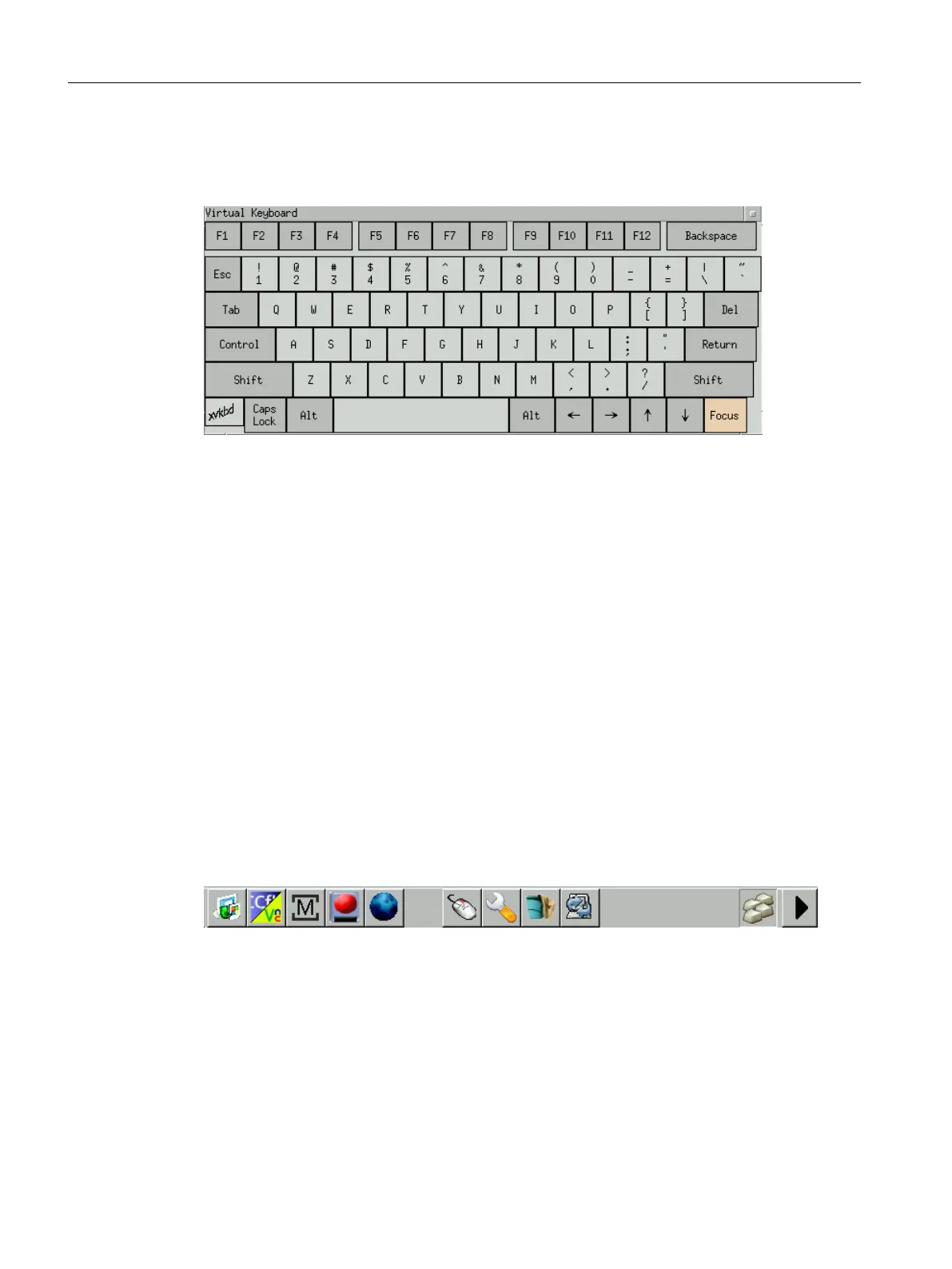

Figure4-20 Virtual Keyboard
The integrated keyboard is activated using the button to the far right on the start bar.
See also
How to register a TCU on the system network (Page55)
Using the TCU's main menu (Page42)
Reference
SIMATIC HMI, Operating instructions: Thin Client, Thin Client PRO
4.3.2.6 This is how you con󹪝gure the SIMATIC Thin Client Touch Panel
Operating the start bar
The following functions are available in the start bar of the SIMATIC Thin Client:
To select the SINUMERIK mode, press the button:
General information and networking
4.3Networking
Handheld Terminal HT 8
62 Equipment Manual, 02/2024, A5E52918633B AA
