Max. data transfer rate: 10/100/1000 Mbit/s
Max. cable length: 100 m

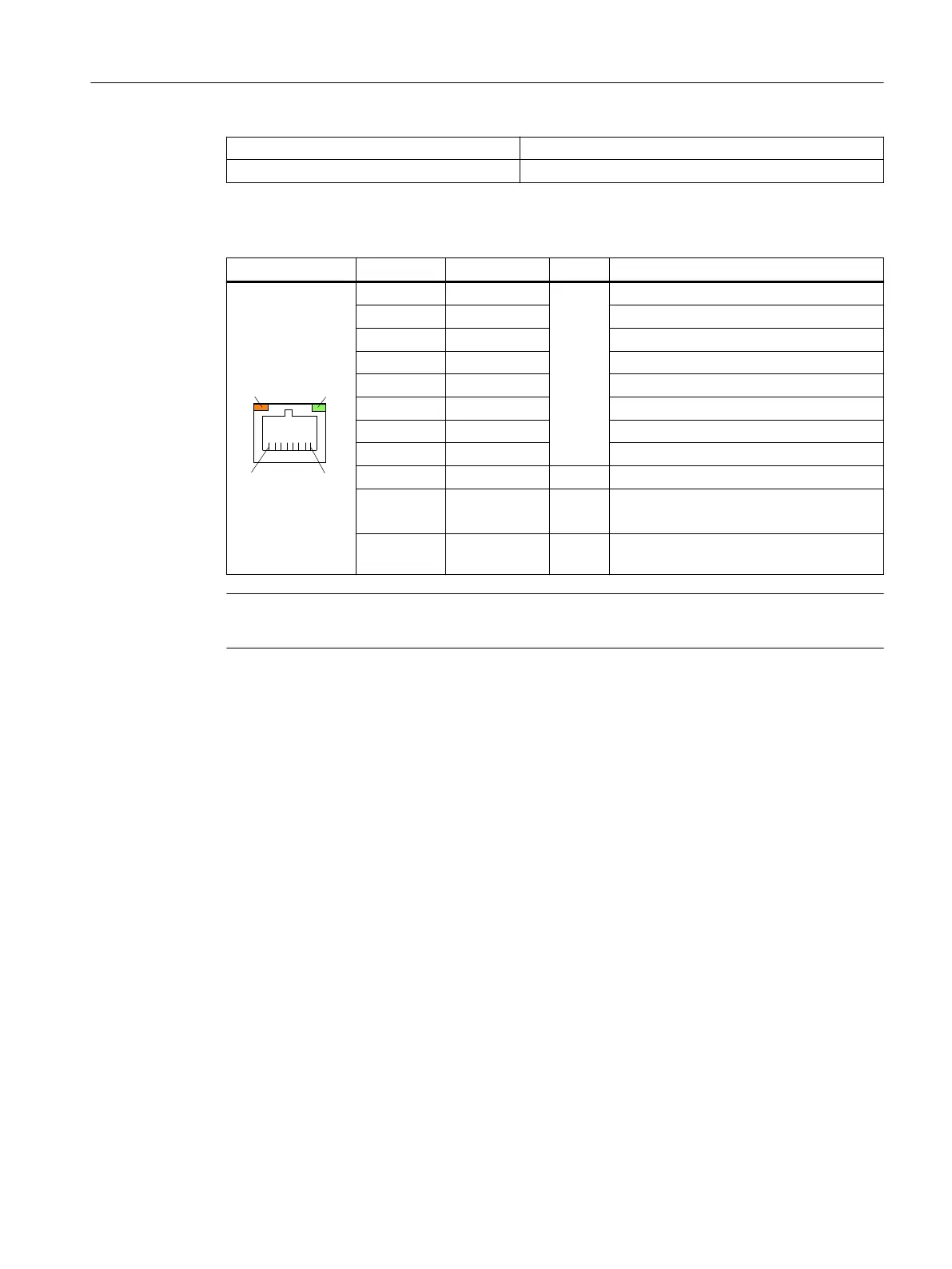

Table 4-4 Assignment of the Ethernet RJ45 interface 1000 Mbit/s
Connector Pin Name Type Remark
1 DA+ B Bidirectional pairA+
2 DA- Bidirectional pairA-
3 DB+ Bidirectional pairB+
4 DC+ Bidirectional pairC+
5 DC- Bidirectional pairC-
6 DB- Bidirectional pairB-
7 DD+ Bidirectional pairD+
8 DD- Bidirectional pairD-
Shield - - On connector housing
- Green LED
(right)
- Illuminated orange: 1000 Mbps
O: No or faulty connection
- Orange LED
(left)
- Illuminated: Data exchange
O: No data exchange
Note
Connection is only possible on an LAN, not on telecommunication networks.
4.2.2 Interfaces for virtual direct connected keys (VDCK)
The PCU Base Software extends the direct key conguration options to include virtual direct
connected keys. VDCK supports multi-touch operation and therefore supplements the new
SINUMERIK and SIMATIC operating concept to include the corresponding virtual direct
connected keys.
You will nd a more detailed description in the Commissioning Manual PCU Base
Software/IPC for SINUMERIK ONE.
4.2.3 Handling membrane connectors
When replacing parts it can sometimes be necessary to disconnect membrane connectors from
the boards and reconnect them again.
This should be done as follows:
General information and networking
4.2Connecting
Handheld Terminal HT 8
Equipment Manual, 02/2024, A5E52918633B AA 35
