Siemens SINUMERIK 804D sl Equipment Manual

Operator control and display elements
5
5.1 View

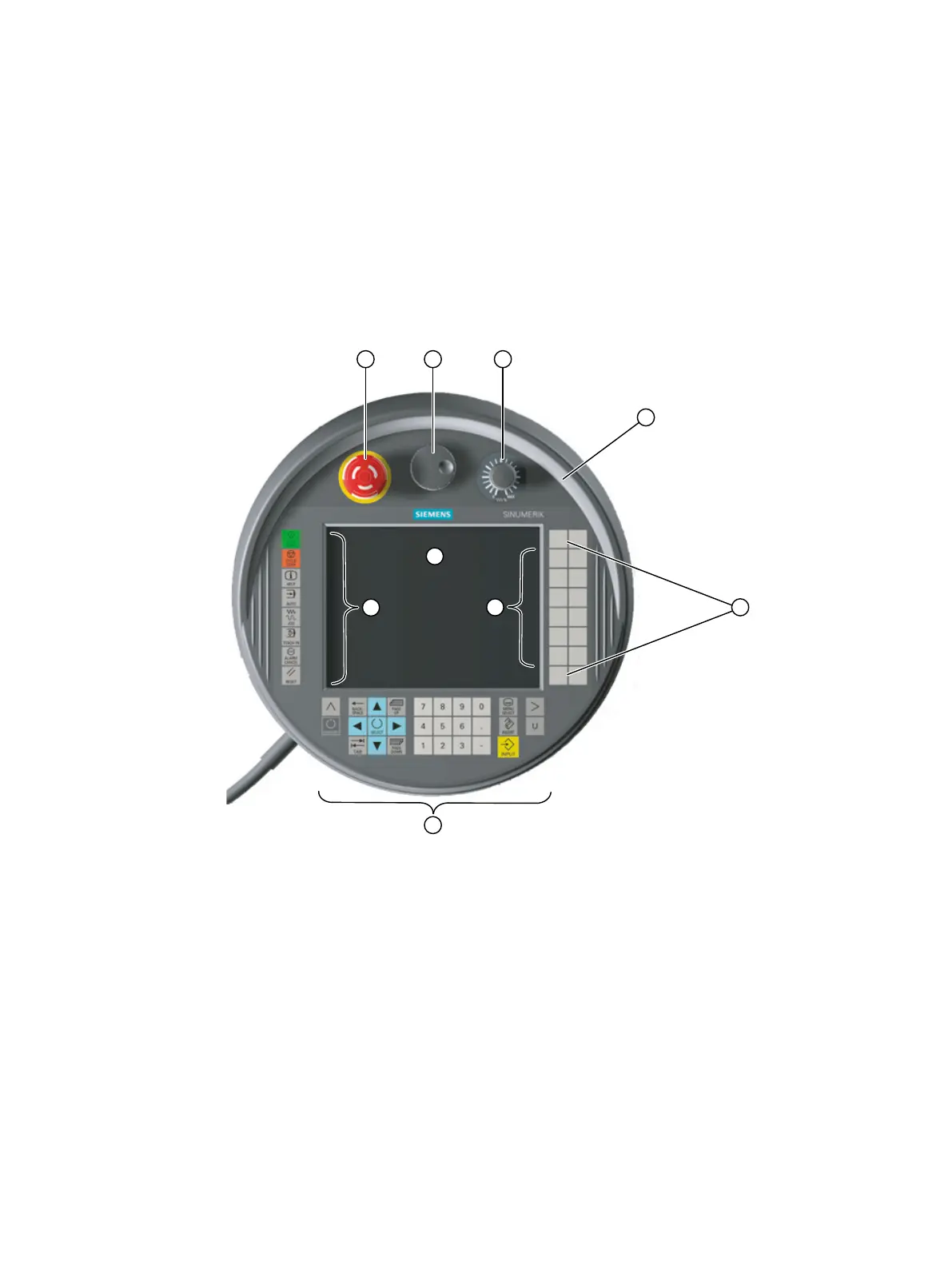

Front







① Emergency Stop button
② Handwheel
③ Rotary override switch
④ Protective collar
⑤ Customer keys (user-de󹪝ned)
⑥ HMI control keys
⑦ Function keys machine control panel
⑧ Display / touch screen
⑨ Traversing keys
Figure5-1 User interface of the HT 8 with handwheel
Handheld Terminal HT 8
Equipment Manual, 02/2024, A5E52918633B AA 89
