Rear






① Handle
② Cover
③ Connector with integrated USB connection
④ Sleeve for the connecting cable
⑤ Connecting cable
⑥ Enabling buttons (left and one right on the handle)

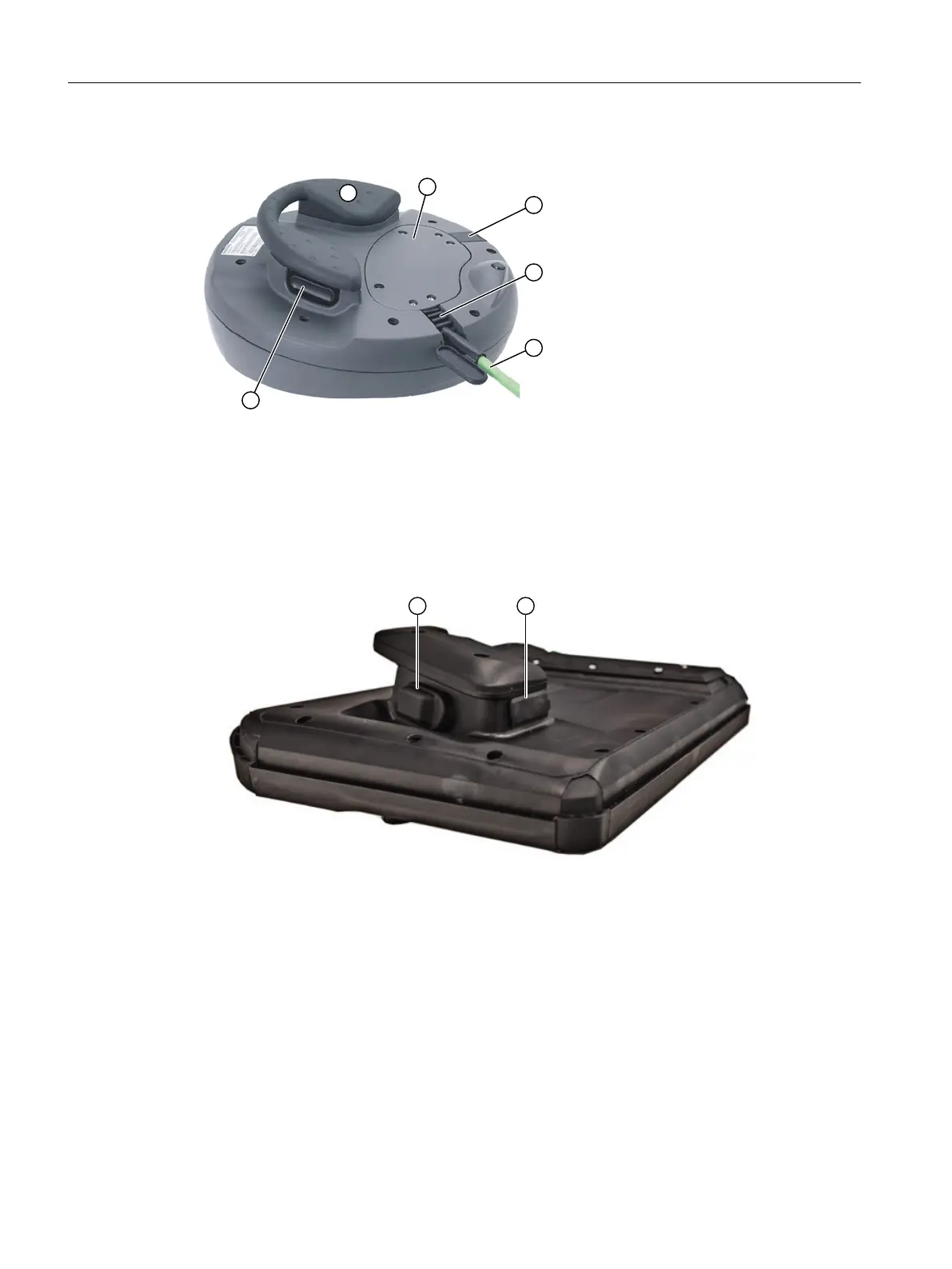

Figure5-2 Connections and operator controls at the rear of the HT 8

① Connector with integrated USB connection
② USB protective cap
Figure5-3 USB connection of the HT 8
Operator control and display elements
5.1View
Handheld Terminal HT 8
90 Equipment Manual, 02/2024, A5E52918633B AA
