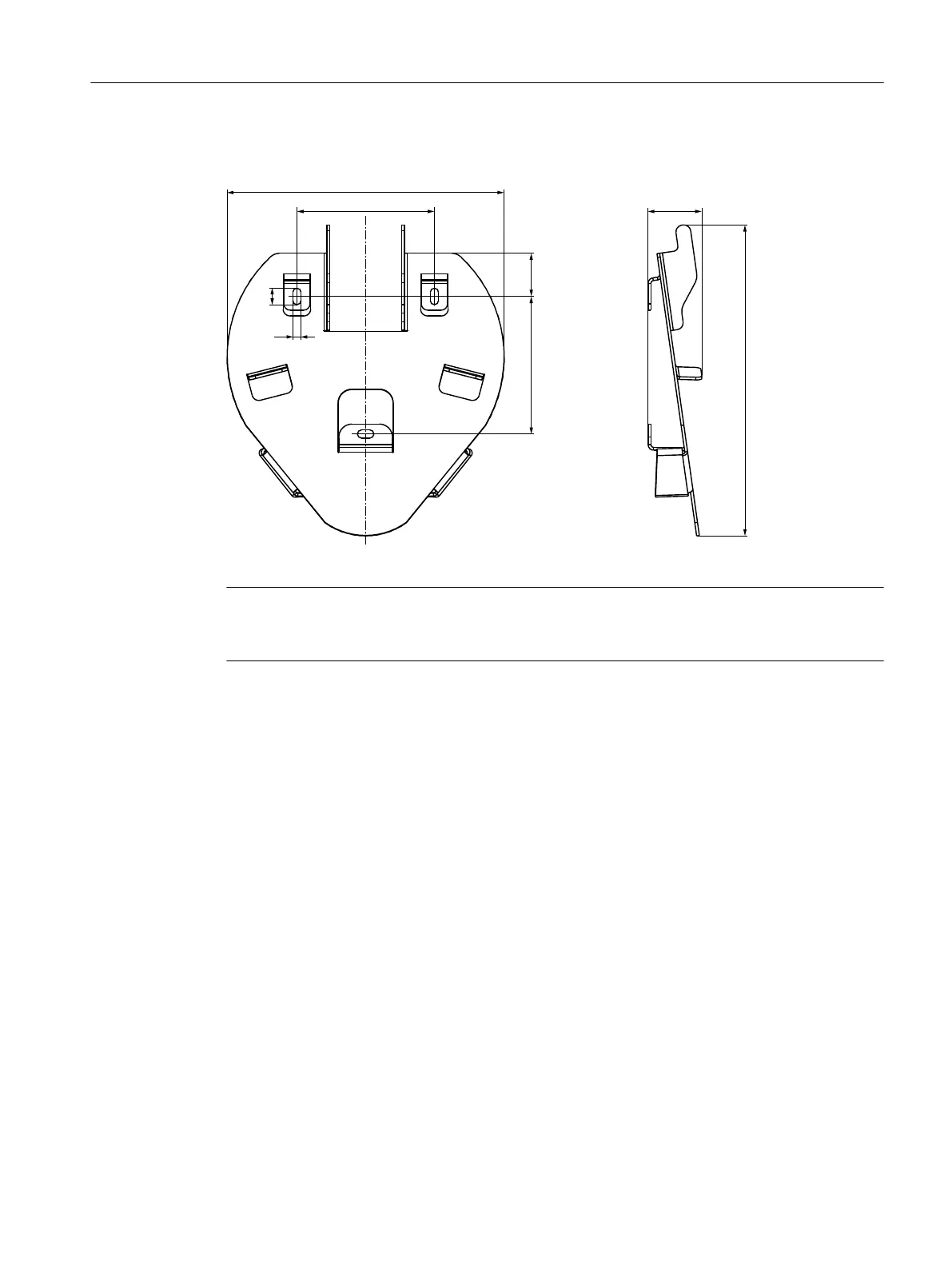

Dimension drawing






Figure12-2 HT8 wall holder - dimension drawing
Note
Please note that the holder is smaller than the HT 8 (∅ approx. 290 mm). You must keep
su󹪟cient clearance around the holder to ensure convenient handling.
Accessories
12.2Wall holder
Handheld Terminal HT 8
Equipment Manual, 02/2024, A5E52918633B AA 139
