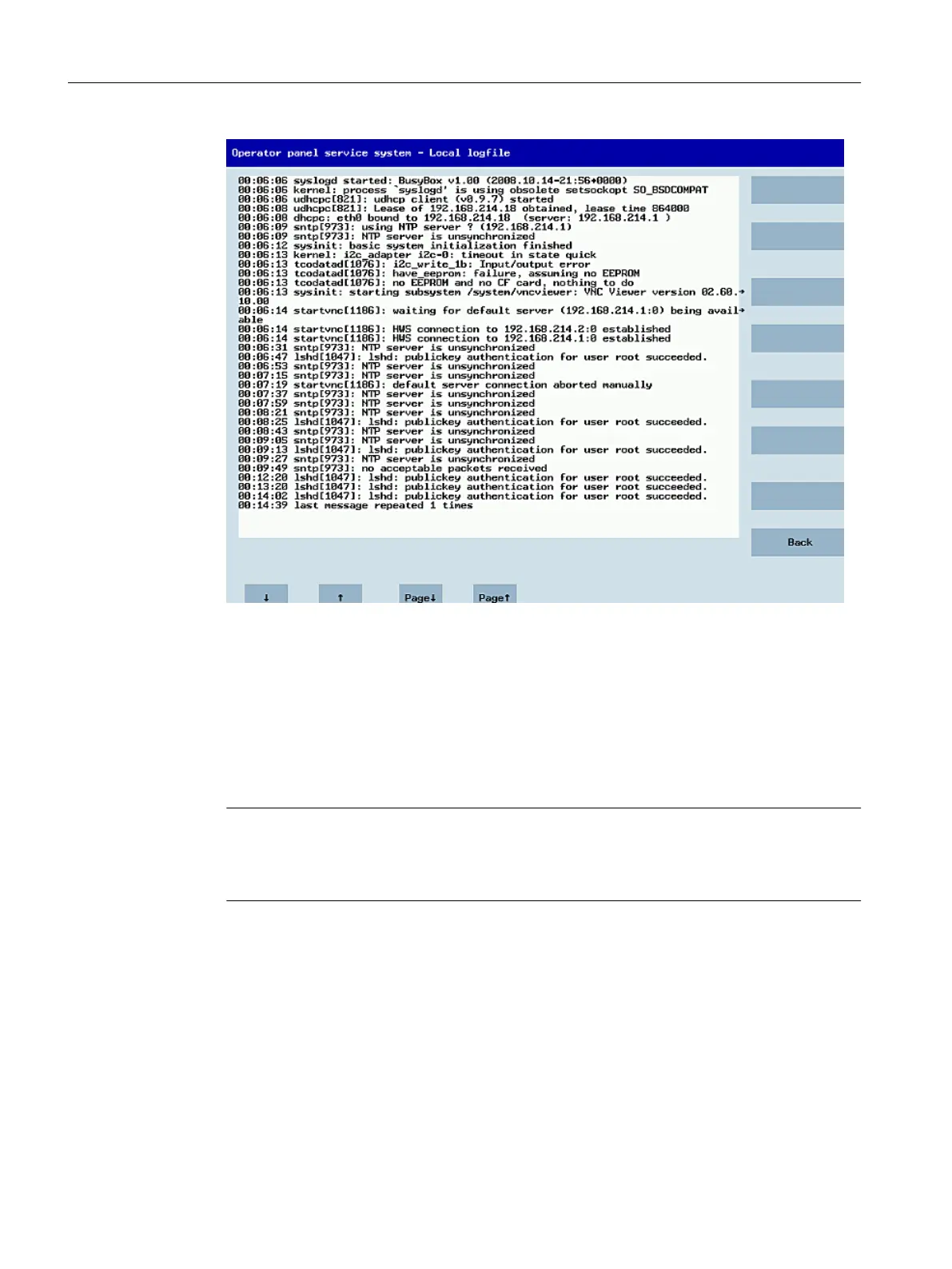

Figure4-11 TCU menu: Local log󹪝le
• "Show log󹪝le of remote devices" displays the log󹪝le of the other devices in the network:
The syslog messages of devices in the system network which send syslog messages by
broadcast, such as NCU7x0, ...
• "Modify operator panel settings" calls a further submenu. Please refer to the next section.
• "Calibrate touch screen" is only active if there is a touch screen. This menu item recalibrates
the touch screen.
• "Reboot" restarts the TCU.
Note
Where the contents of a line exceed the space available, the remaining text runs onto the
next line so that you do not have to waste time scrolling across. When this occurs, the line has
a right-facing arrow at its right edge.
General information and networking
4.3Networking
Handheld Terminal HT 8
50 Equipment Manual, 02/2024, A5E52918633B AA
