• "Electronic key system index - EKS" (0-255)"
This species the index of the associated EKS. It matches the [Station] eksIndex setting from
cong.ini.
• "Enable direct keys" (yes/no)
This species whether direct keys (if present) should communicate with the PLC (yes) or be
treated as ordinary keys (no).
"OK" saves any modied values to the cong.ini le or to the Flashstore (HT8 individual
mode).
Parameters for the "cong.ini" le
Two steps need to be performed:
1. Select "New" or "Replacement for existing panel".
2. Select what is to be replaced.
When an unknown TCU (i.e. not yet registered with the boot server) is started, a selection
menu containing both the "New" and "Replacement for existing panel" items will appear. The
accessibility of all the registered TCUs is tested in the background.
The status of this test process appears in the message line: "(0/3 panels inactive)".

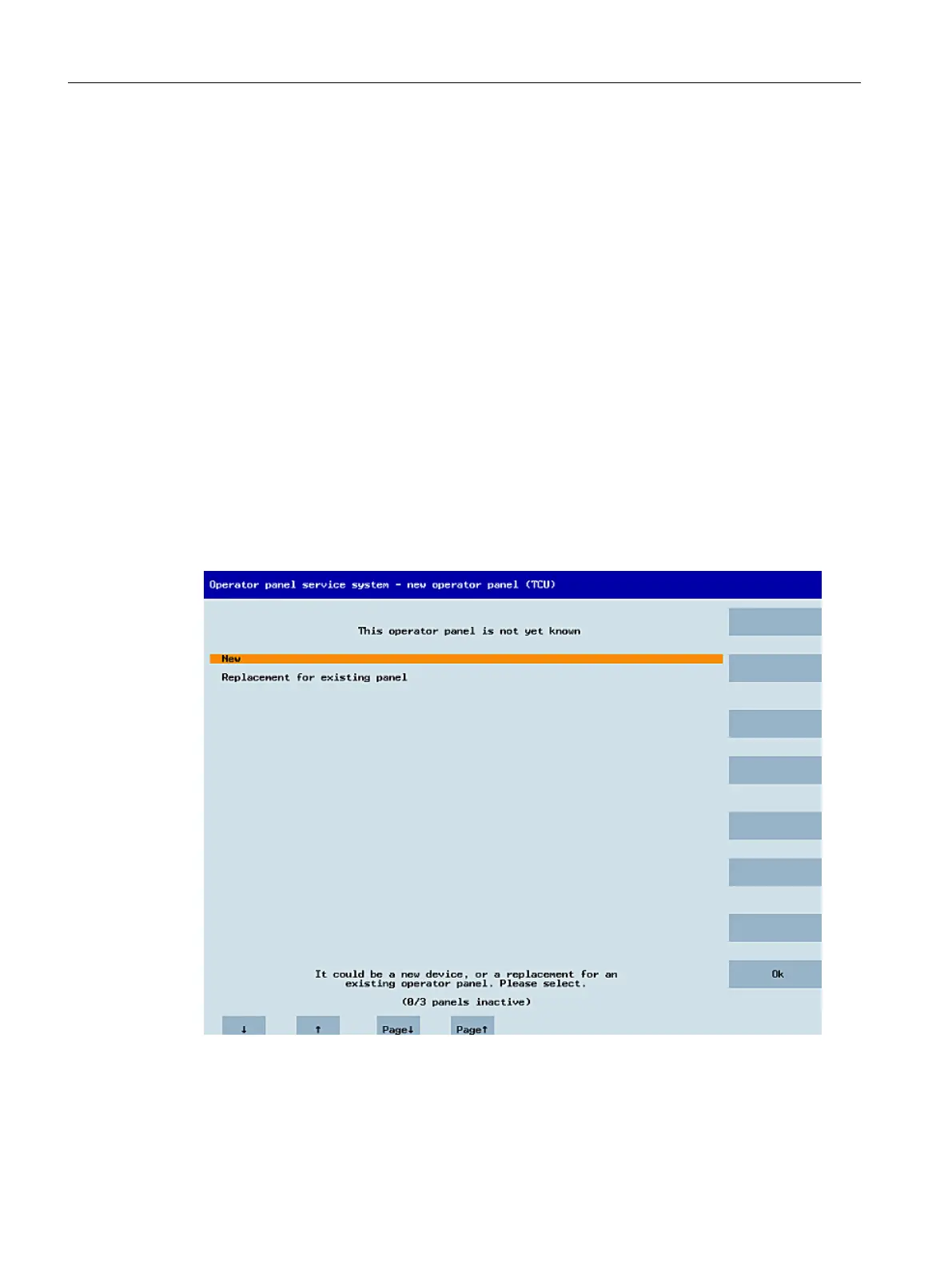

Figure4-13 TCU menu: New TCU
If all the TCUs are active, the new one cannot be a replacement. The system will then
automatically switch to the name assignment phase after a set period of time has elapsed.
General information and networking
4.3Networking
Handheld Terminal HT 8
52 Equipment Manual, 02/2024, A5E52918633B AA
