• Retraction with position patterns:
When working with optimized retraction, the tool travels in
relation to the contour across the workpiece at machining feedrate
and safety clearance (SC). On retraction
to RP, the tool is
retracted to the retraction plane when the machining step is
complete and infeeds at the new position. Collisions with
workpiece obstacles are thus prevented when the tool is retracted
and fed in, e.g. when holes in pockets or grooves are machined at
different levels and positions.

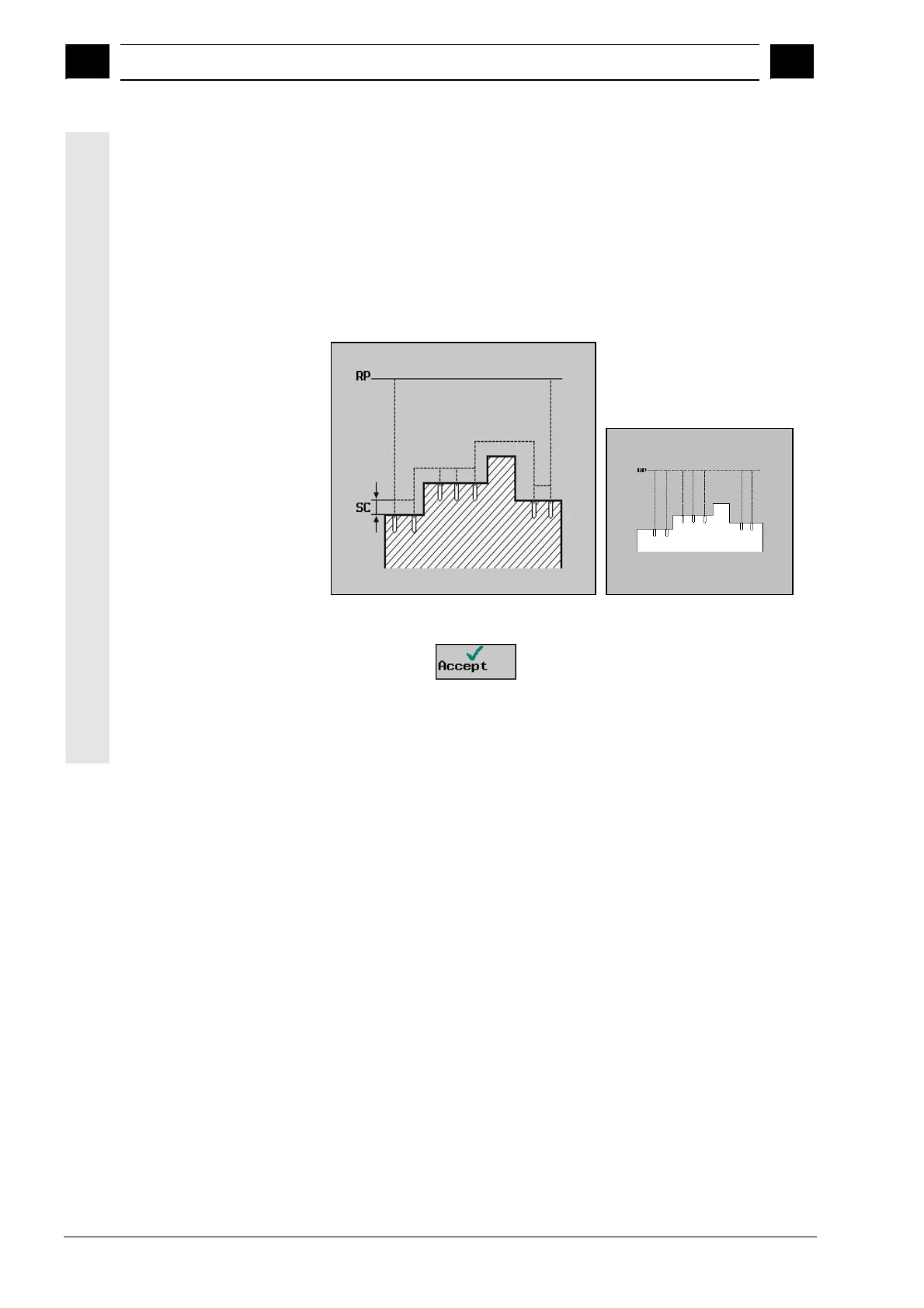

Optimized retraction Retraction to retraction plane RP
Storing parameters
Select with the
softkey.
The parameters you have entered are stored. The machining plan is
then displayed.
Program end
ShopMill has automatically defined the program end.
