7
10.04 Mold Making
7.5 Exam
le
7
ï›™ Siemens AG, 2004. All rights reserved
SINUMERIK 840D/840Di/810D Operation/Programming ShopMill (BAS) – 10.04 Edition 7-393

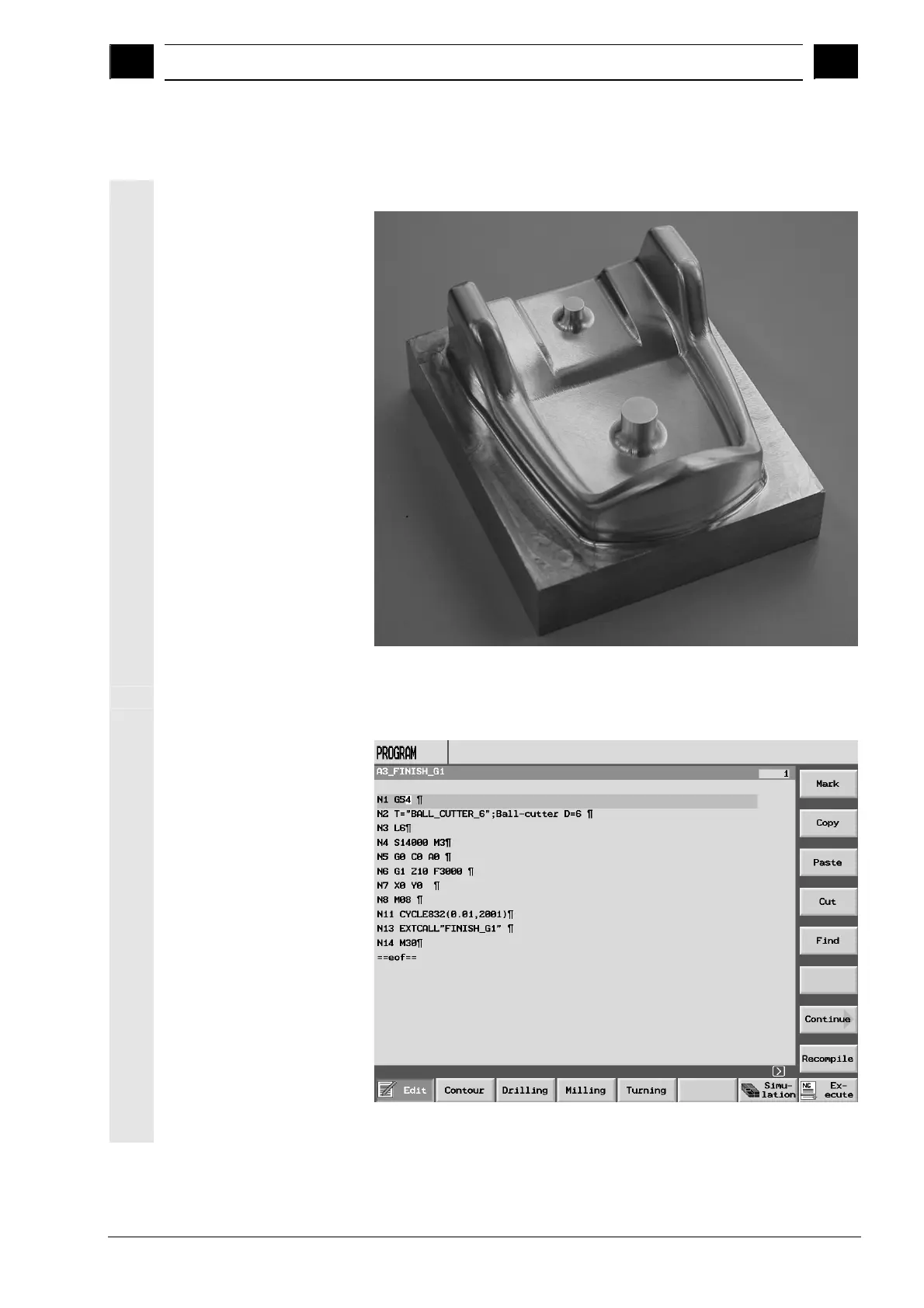

7.5 Example
Workpiece
The task is to machine a mobile phone holder on a 3-axis machine.
Workpiece to be machined
Program structure
The mold-making program is split into a technology program and a
geometry program.
Technology program for the finishing operation
