10.04 Programming with ShopMill
3.7 Drillin
g
3
 Siemens AG, 2004. All rights reserved
SINUMERIK 840D/840Di/810D Operation/Programming ShopMill (BAS) – 10.04 Edition 3-239
• Exit motion along a circular path in the same rotational direction at
programmed feedrate
• Retract to thread center point and then to retraction plane in rapid
traverse
External thread Sequence:
• Position on starting point in retraction plane at rapid traverse
• Infeed at rapid traverse to reference plane shifted forward by
amount corresponding to safety clearance
• Approach along an approach circle calculated in the control at
programmed feedrate
• Approach motion to thread diameter on circular path
• Cut thread along a spiral path in clockwise or counterclockwise
direction (depending on whether it is left-hand or right-hand thread)
• Exit motion along a circular path in opposite rotational direction at
programmed feedrate
• Retract to retraction plane at rapid traverse
Call help display with
the
key

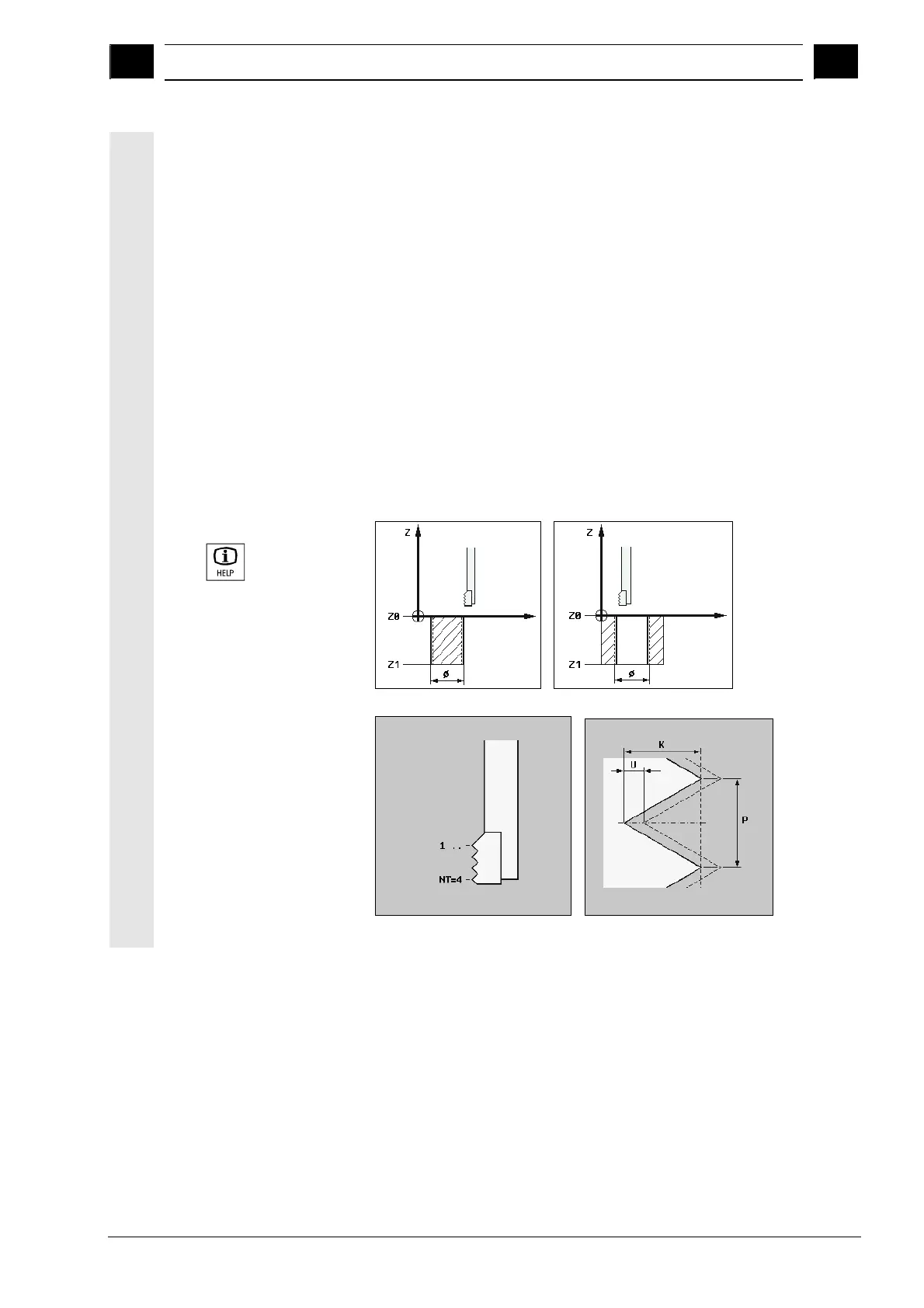

Help displays for thread cutting
