1.2 Workstation
1
 Siemens AG, 2004. All rights reserved
SINUMERIK 840D/840Di/810D Operation/Programming ShopMill (BAS) – 10.04 Edition 1-25

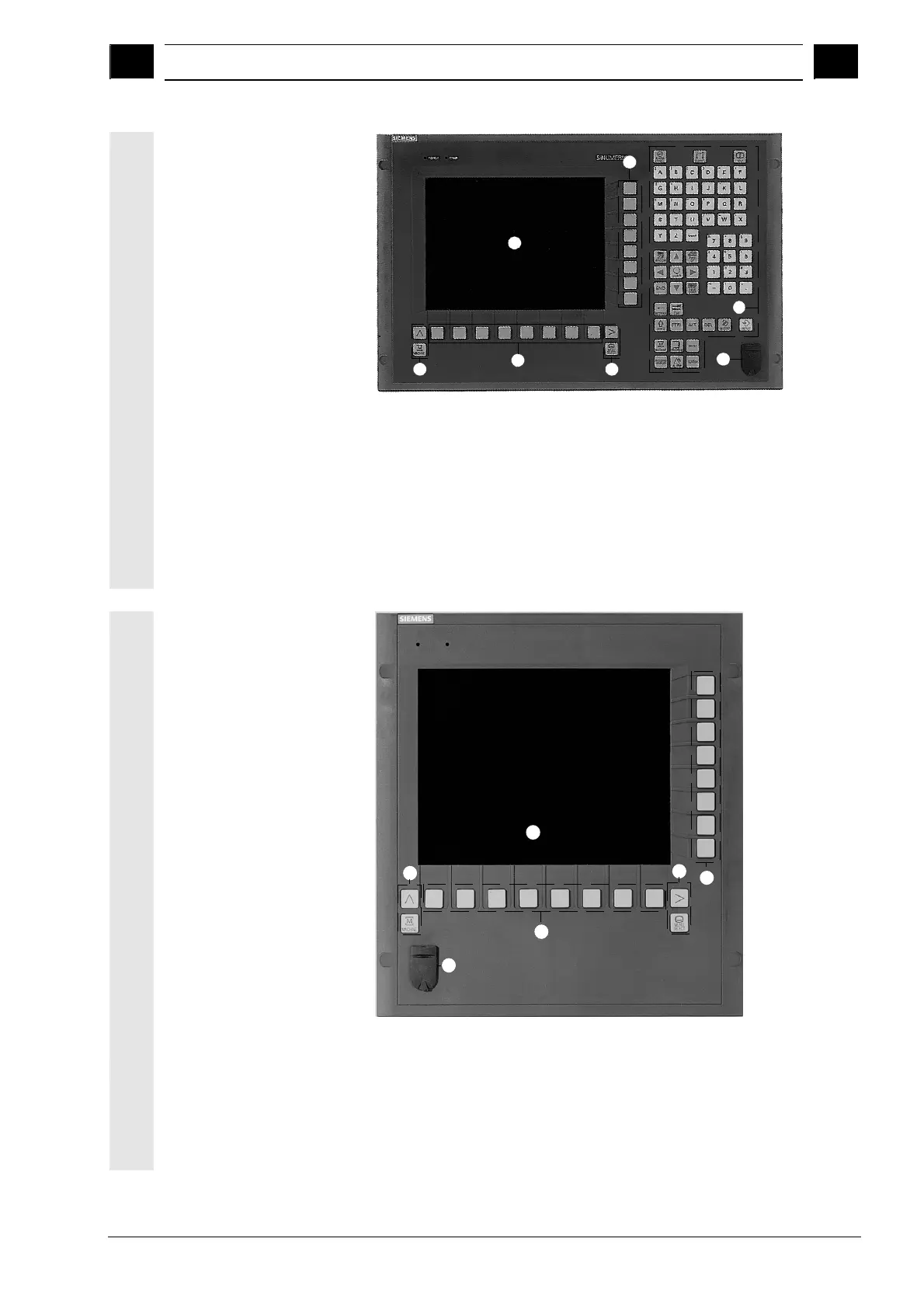

Operator panel OP 010C
3
4
2
1
6
.
5
2
Operator panel OP 010C
1 10" screen
2 Screen keys
3 Horizontal softkey bar
4 Vertical softkey bar
5 Alphanumeric keypad
Correction/cursor pad with control keys and input key
6 USB interface
OP 010S slimline
operator panel
1
A3
A4
A2
5
A2
OP 010S operator panel
1 10" screen
2 Screen keys
3 Horizontal softkey bar
4 Vertical softkey bar
5 USB interface
