Siemens SINUMERIK 810D Operation/Programming

3
10.04 Programming with ShopMill
3.7 Drillin
g
3
 Siemens AG, 2004. All rights reserved
SINUMERIK 840D/840Di/810D Operation/Programming ShopMill (BAS) – 10.04 Edition 3-259

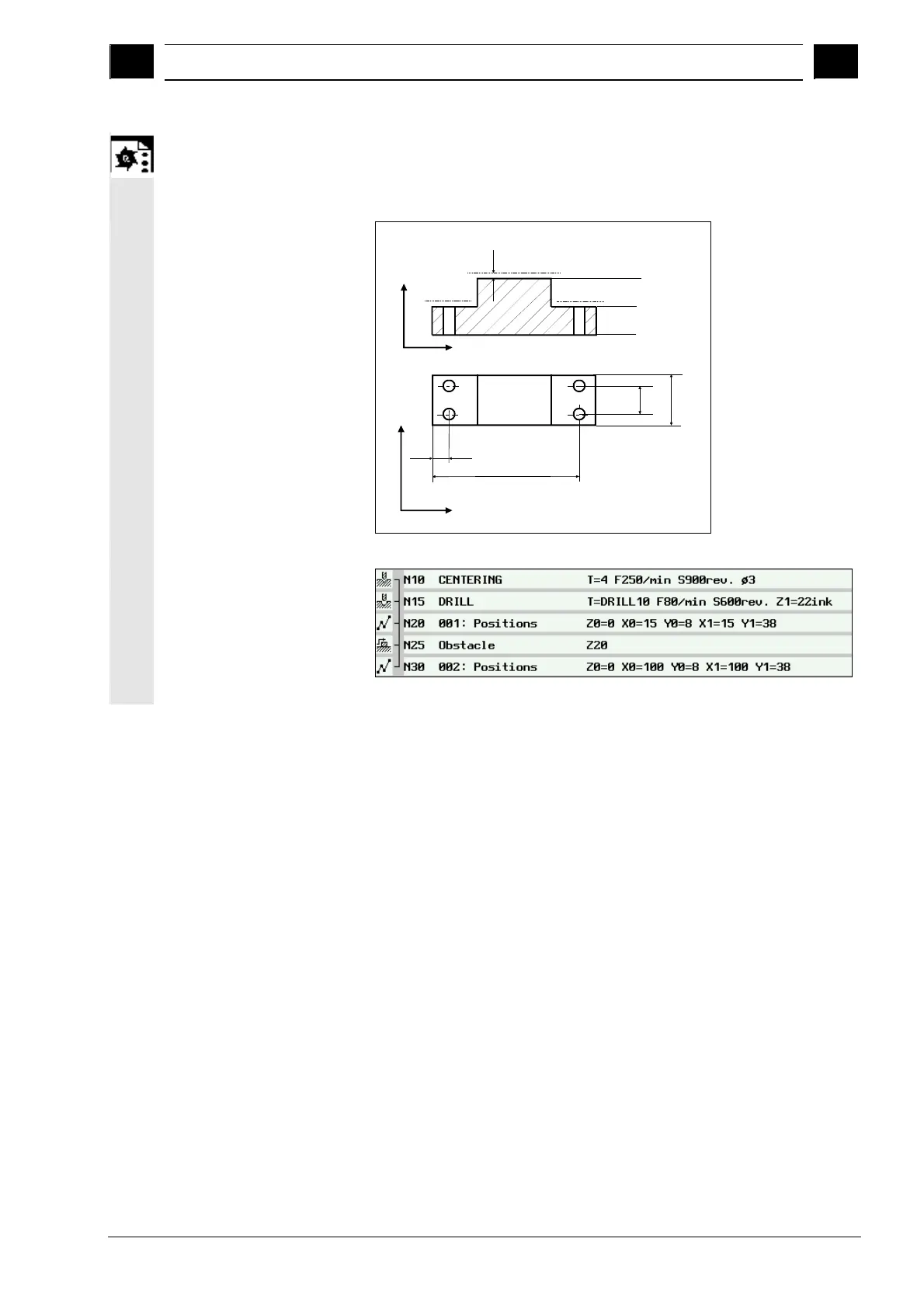

Programming example
Drilling 4 positions with an obstacle in-between.
The holes are first centered and then drilled. When you have
programmed the first two positions at X=15, you need to program the
obstacle. The remaining positions are then programmed at X=100.
Z=-20
Z=20
30
15
100
46
X
Y
X
Z
Z=0
Safety clearance (SC)
Workshop drawing
Extract from machining plan for "Obstacle" programming example
