Siemens SINUMERIK 810D Operation/Programming

3
Programming with ShopMill 10.04
3.8 Millin
g
3
 Siemens AG, 2004. All rights reserved
3-276 SINUMERIK 840D/840Di/810D Operation/Programming ShopMill (BAS) – 10.04 Edition
Y
X
Contour retraction
Contour approach

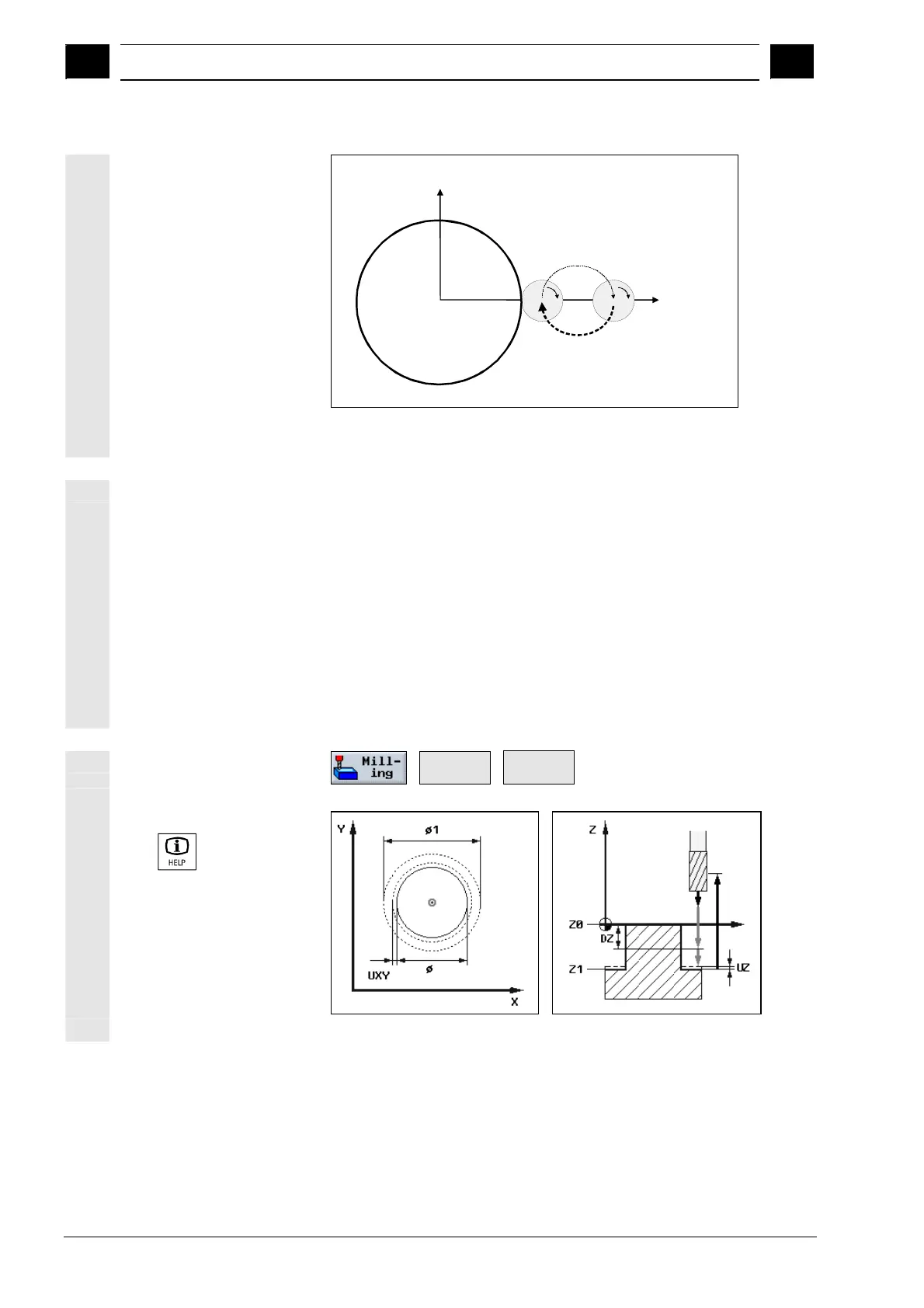

Contour approach/retraction along semi-circle with CW rotating spindle and
conventional milling operation
Machining type
You can select the machining mode for milling the circular spigot as
follows:
• Roughing
Roughing involves moving round the spigot until the programmed
finishing allowance has been reached.
• Finishing
If you have programmed a finishing allowance, the spigot is
moved round until depth Z1 is reached.
• Chamfer
Chamfering involves edge breaking at the upper edge of the
circular spigot.
Select with softkey
Spigot >
Circular
spigot
Call help display with
the
key
Help display for milling a circular spigot
