3
10.04 Programming with ShopMill
3.10 Miscellaneous functions
3
ï›™ Siemens AG, 2004. All rights reserved
SINUMERIK 840D/840Di/810D Operation/Programming ShopMill (BAS) – 10.04 Edition 3-303

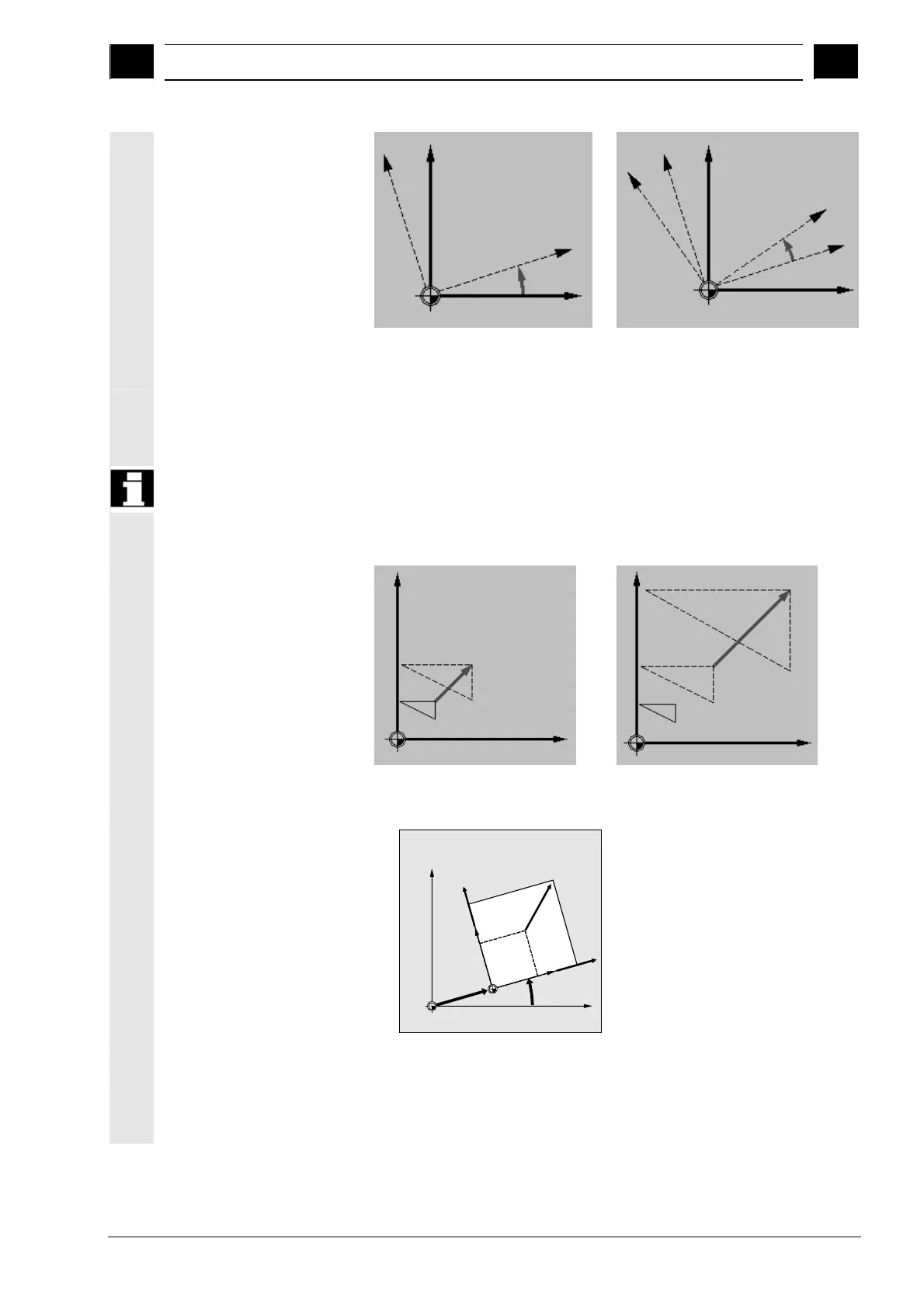

New rotation
Additive rotation
• Scaling
You can specify a scale factor for the active machining plane as
well as for the tool axis. The programmed coordinates are then
multiplied by this factor.
Note that the scaling always refers to the zero point of the workpiece.
For example, if you increase the size of a pocket whose center point
does not coincide with the zero point, scaling will shift the center of
the pocket.
New scaling
Additive scaling
O
f
f
s
e
t
n
e
w
S
c
a
l
i
n
g
Rotation
additive
a
d
d
i
t
i
v
e
Offset, rotation, and scaling
• Mirroring
Furthermore, you can mirror all axes.
Enter the axis to be mirrored in each case.
