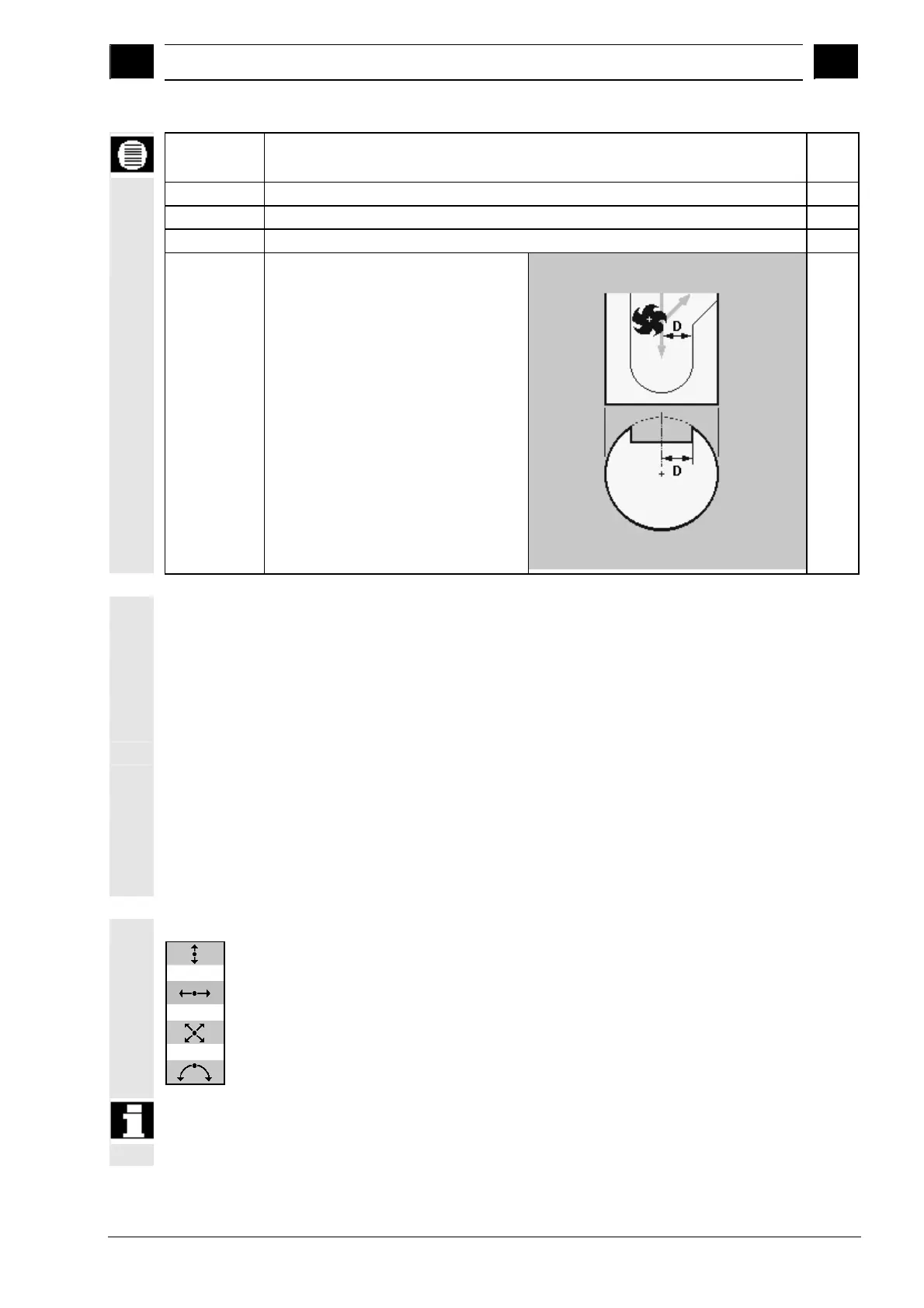

Parameters Description Unit
Transformation
ctivate/deactivate cylinder peripheral surface transformation (see also example below)
∅
Cylinder diameter (only when transformation is active) mm
Slot wall offset
ctivate/deactivate slot side compensation (only when transformation is active)
D Offset to the programmed path (only
with groove wall offset ON)
mm
Options for free contour programming
General information
For contours (e.g. slots) on a cylinder, lengths in the circumferential
direction of the cylinder peripheral surface (e.g. Y axis) are often
specified as angles.
Several options are available under the "Mill contour" function in free
contour programming for this purpose.
Depending on the selected axis (selection is made via a display
machine data), you can enter the length as an angle.
Start point
In the screen form for selecting the starting point, you can also
activate or deactivate the cylinder surface transformation function via
the "Alternat." softkey. When the function is active, you are offered the
diameter ∅ of the cylinder.
Contour elements
Depending on the axis and the relevant element, angle parameters α,
Iα or Yα, Jα are added to the "Horizontal/vertical/diagonal line" and
"Arc" when the cylinder surface transformation function is active.
Notes
The dimensions of the developed surface are specified in mm in the
graphics!
