6-366 SINUMERIK 840D/840Di/810D Operation/Programming ShopMill (BAS) – 10.04 Edition
6.3 Program management with PCU 50
The ShopMill variant with PCU 50 has its own hard disk in addition to
the NC main memory. This makes it possible to store all programs
that are not currently required in the NC on the hard disk.
Display of the directory management of a floppy disk or network drive
and programs is also possible, as are the import and export of data
via an RS-232 interface.
ShopMill user interface PCU 50
NC main memory
edit
RS-232
interface
Data manage-
ment list on
hard disk
ShopMill programs
ShopMill subroutines
G code programs
edit
edit
load
unload
save
Diskette drive
edit
Network drive
ShopMill programs
ShopMill subroutines
G code programs.
ShopMill programs
ShopMill subroutines
G code programs

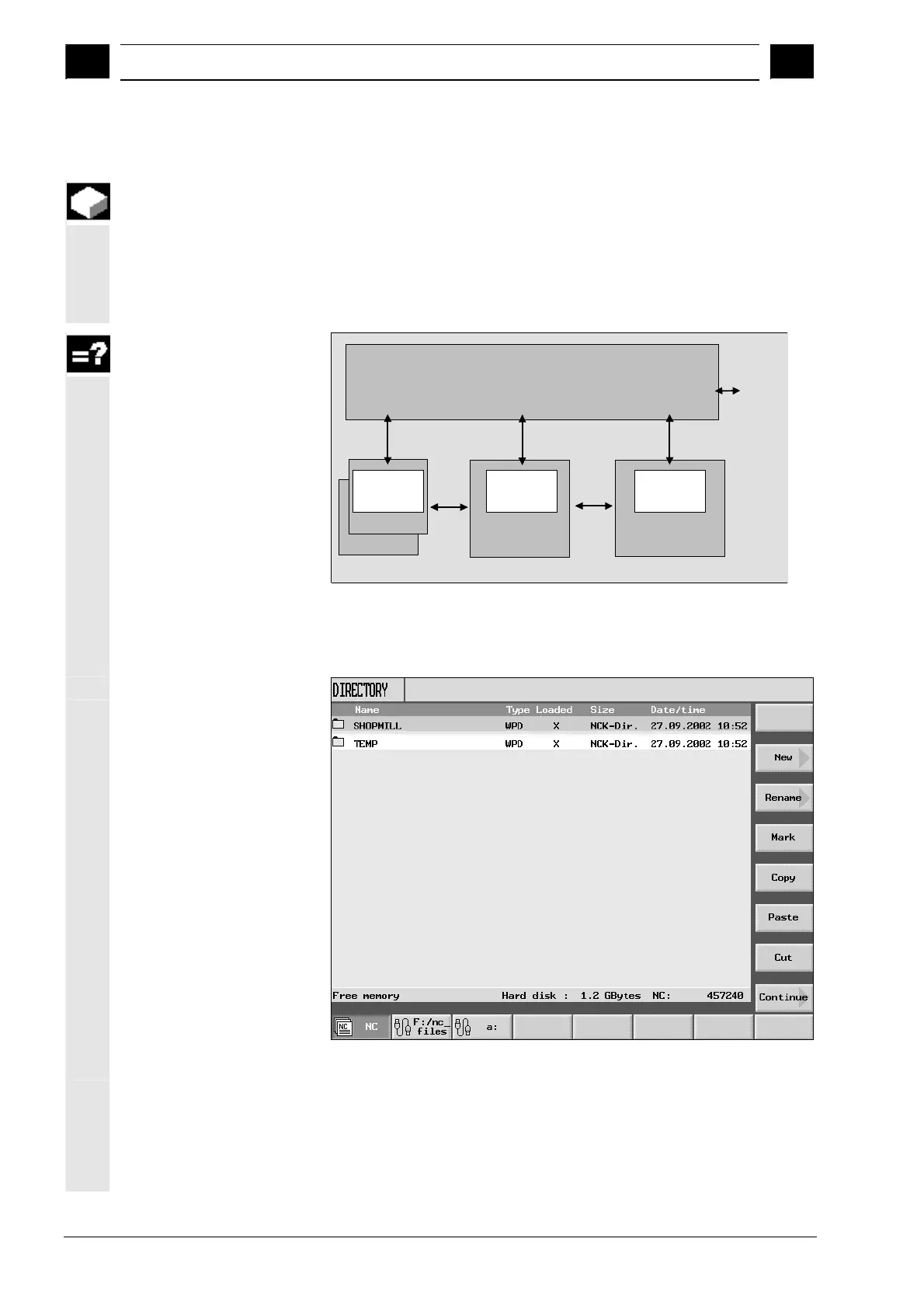

Data storage with PCU 50
You will find an overview of all directories and programs in the
Program Manager.
PCU 50 program manager
In the horizontal softkey bar, you can select the storage medium that
contains the directories and programs that you want to display. In
addition to the "NC" softkey, via which the data in the NC main
memory and the data management directories on the hard disk can
be displayed, a further 4 softkeys can also be assigned.
