Process plan

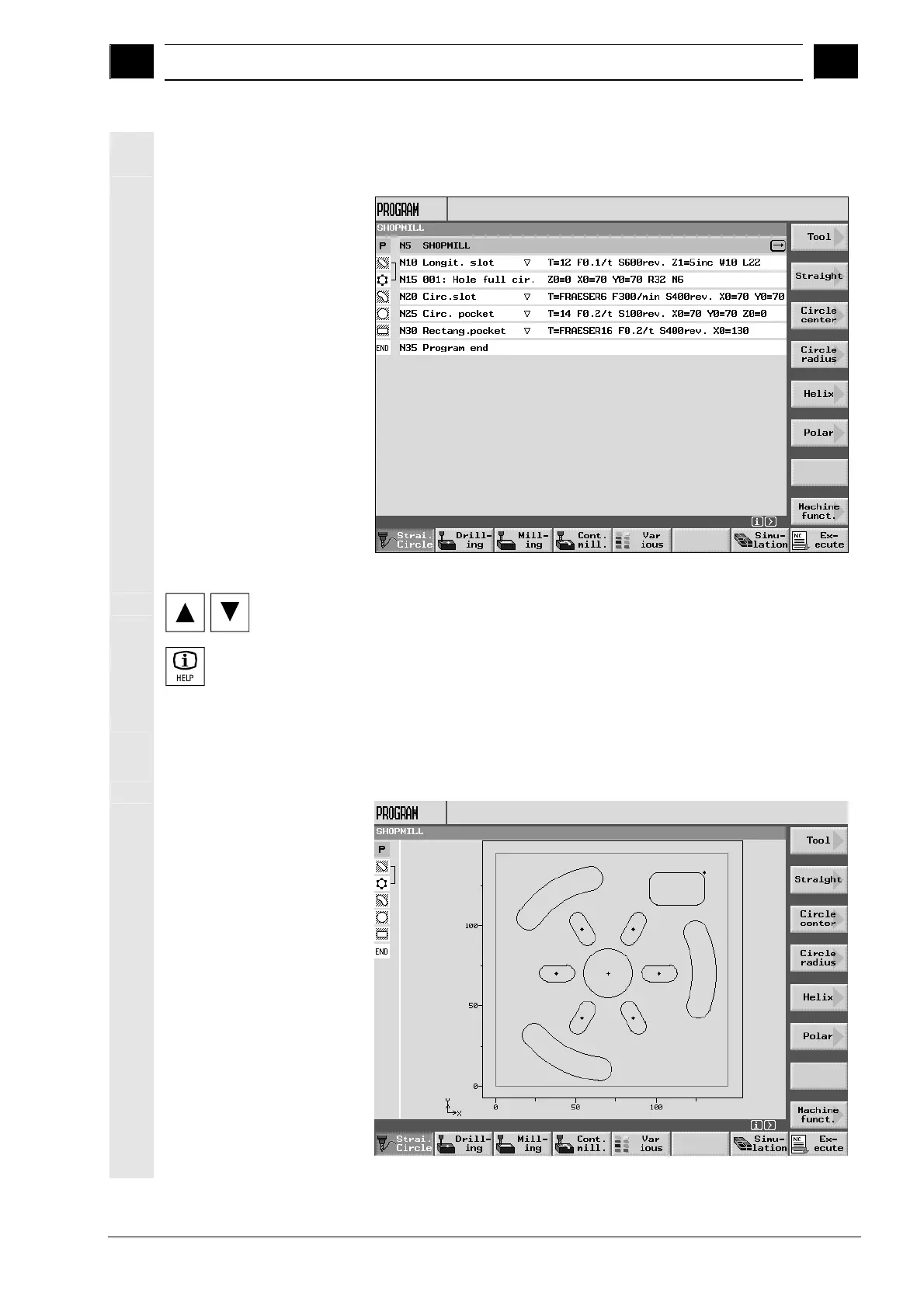

The process plan provides an overview of the separate machining
steps of a program.
Process plan
You can move between the program blocks in the process plan using
the "Cursor up" and "Cursor down" keys.
Use the "Help" key to switch between the process plan and the
programming graphics.
Programming graphics
The programming graphics display a dynamic broken-line top view of
the workpiece. The program block selected in the process plan is
color-highlighted in the programming graphics.
