Siemens SINUMERIK 810D Operation/Programming

9
Examples 10.04
9.5 Exam
p
le 5: Swivelin
g
9
 Siemens AG, 2004. All rights reserved
9-438 SINUMERIK 840D/840Di/810D Operation/Programming ShopMill (BAS) – 10.04 Edition

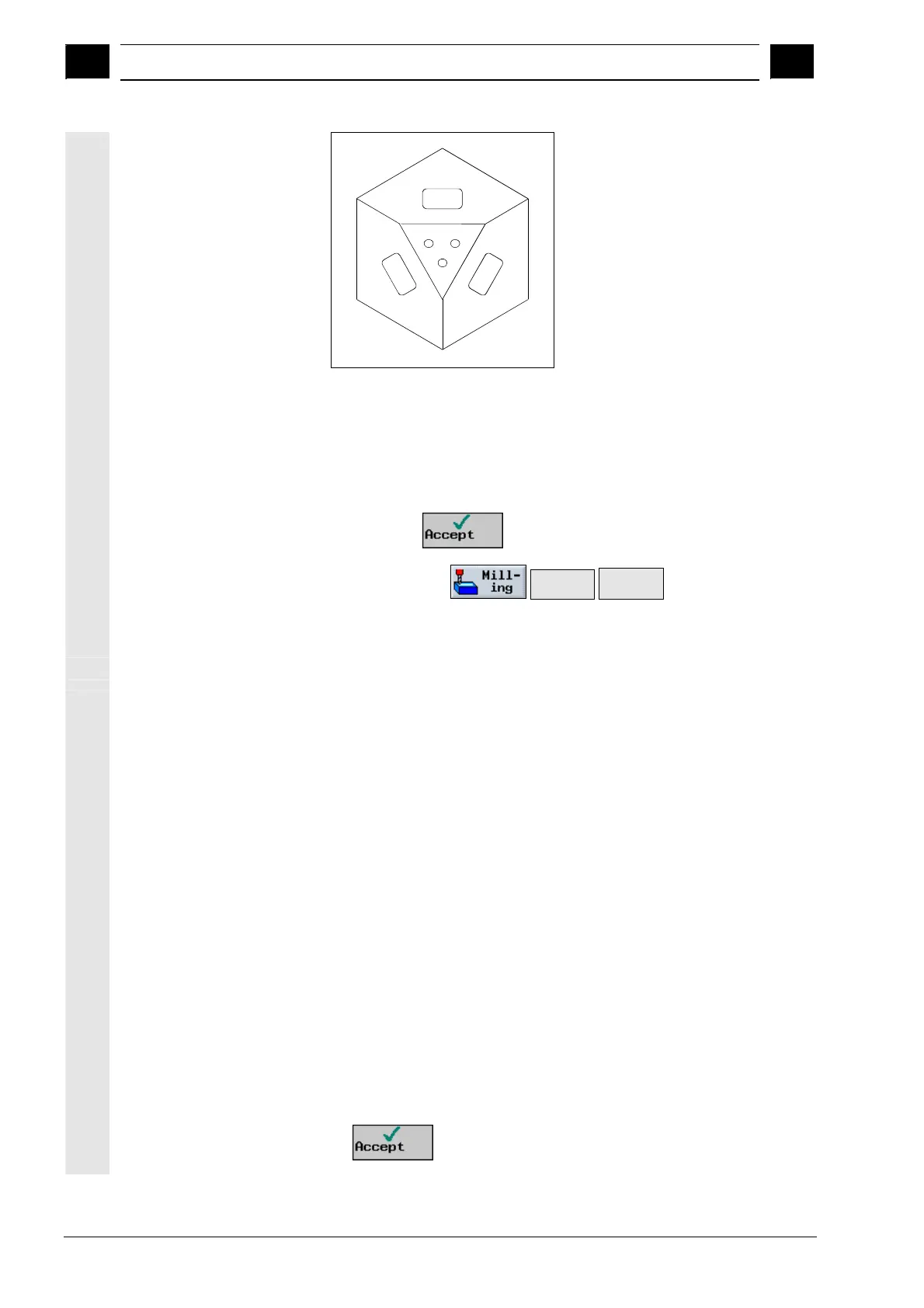

This example involves multiple swiveling of the machining plane.
Program example 4
1. Program header
• Define the blank:
X0 0 abs Y0 0 abs Z0 0 abs
X1 -50 abs Y1 -50 abs Z1 -50 abs
• Press the
softkey.
2. Rectangular pocket
• Select via the
Pocket
>
Rectang.
pocket
softkeys
• Example of technological data:
T MILL_4 D 1 F 0.1 mm/tooth V 200 m/min
• Enter the following parameters:
Position of
reference point
Center
Machining type
Roughing
Type of position
Single position
X0
-25 abs
Y0
-25 abs
Z0
0 abs
W
10
L
20
R
2
α0
-45°
Z1
5 inc.
DXY
3 mm
DZ
2.5
UXY
0 mm
UZ
0
Insertion
Center
FZ
0.05 mm/tooth
Remove stock
Complete mach.
•
