Siemens SINUMERIK 810D Operation/Programming

9
Examples 10.04
9.5 Exam
p
le 5: Swivelin
g
9
 Siemens AG, 2004. All rights reserved
9-442 SINUMERIK 840D/840Di/810D Operation/Programming ShopMill (BAS) – 10.04 Edition
Y0
-20.413 abs
Z0
14.434 abs
X1
17.678 abs
Y1
10.206 abs
Z1
0 abs
DXY
80 %
DZ
2.5
UZ
0
•
10. Boring

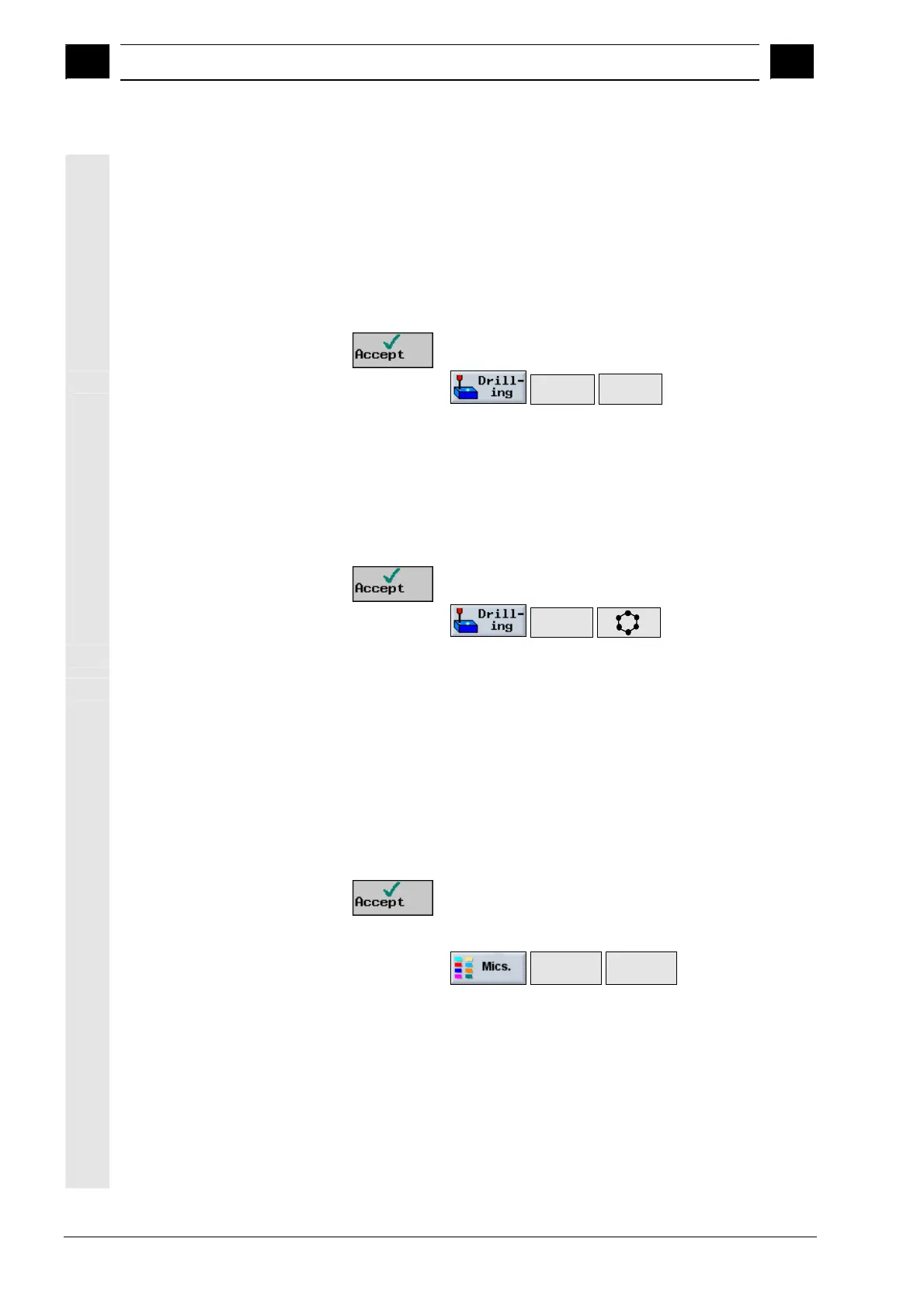

• Select via the
Drilling
Reaming >
Drilling
softkeys
• Example of technological data:
T DRILL_3 D 1 F 0.1 mm/rev S 2000 rev/min
• Enter the following parameters:
Shank/tip
Shank
Z1
5 inc.
DT
0 s
•
11. Position pattern
• Select via the
Positions
>
softkeys
• Enter the following parameters:
Full circle/pitch
circle
Full circle
Z0
0 abs
X0
0 abs
Y0
0 abs
α0
-90°
R
5
N
3
Positioning
Straight line
•
12. Swiveling Return swivel head or swivel table to original position:
• Select via the
Transfor-
mations
Swiveling
>
softkeys
• Example of technological data:
T 0 D 1
• Enter the following parameters:
Retraction
Yes
Swiveling
Yes
Transformation
New
X0
0
