12.95

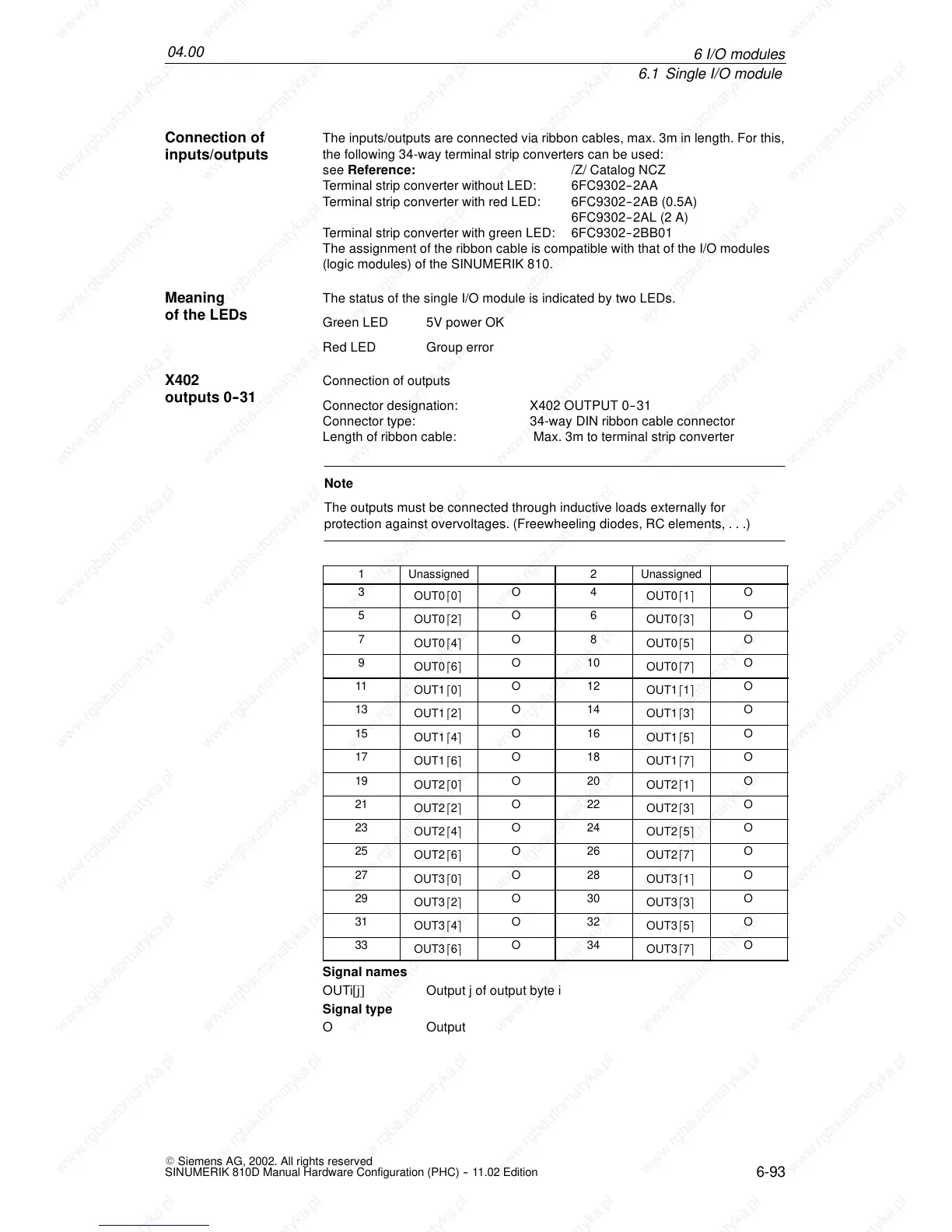

6.1 Single I/O module
6-93
E Siemens AG, 2002. All rights reserved
SINUMERIK 810D Manual Hardware Configuration (PHC) -- 11.02 Edition
The inputs/outputs are connected via ribbon cables, max. 3m in length. For this,
the following 34-way terminal strip converters can be used:
see Reference: /Z/ Catalog NCZ
Terminal strip converter without LED: 6FC9302 --2AA
Terminal strip converter with red LED: 6FC9302--2AB (0.5A)
6FC9302--2AL (2 A)
Terminal strip converter with green LED: 6FC9302--2BB01
The assignment of the ribbon cable is c ompatible with that of the I/O modules
(logic modules) of the SINUMERIK 810.
The status of the single I/O module is indicated by two LEDs.
Green LED 5V power OK
Red LED Group error
Connection of outputs
Connector designation: X402 OUTPUT 0--31
Connector type: 34-way DIN ribbon cable connector
Length of ribbon cable: Max. 3m to terminal strip converter
Note
The outputs must be connected through inductive loads externally for
protection against overvoltages. (Freewheeling diodes, RC elements,...)
1 Unassigned 2 Unassigned
3
OUT00
O 4
OUT01
O
5
OUT02
O 6
OUT03
O
7
OUT04
O 8
OUT05
O
9
OUT06
O 10
OUT07
O
11
OUT10
O 12
OUT11
O
13
OUT12
O 14
OUT13
O
15
OUT14
O 16
OUT15
O
17
OUT16
O 18
OUT17
O
19
OUT20
O 20
OUT21
O
21
OUT22
O 22
OUT23
O
23
OUT24
O 24
OUT25
O
25
OUT26
O 26
OUT27
O
27
OUT30
O 28
OUT31
O
29
OUT32
O 30
OUT33
O
31
OUT34
O 32
OUT35
O
33
OUT36
O 34
OUT37
O
Signal names
OUTiξjζ Output j of output byte i
Signal type
O Output
Connection of
inputs/outputs
Meaning
of the LEDs
X402
outputs 0--31
6I
/
O modu
l
e
s
04.00
