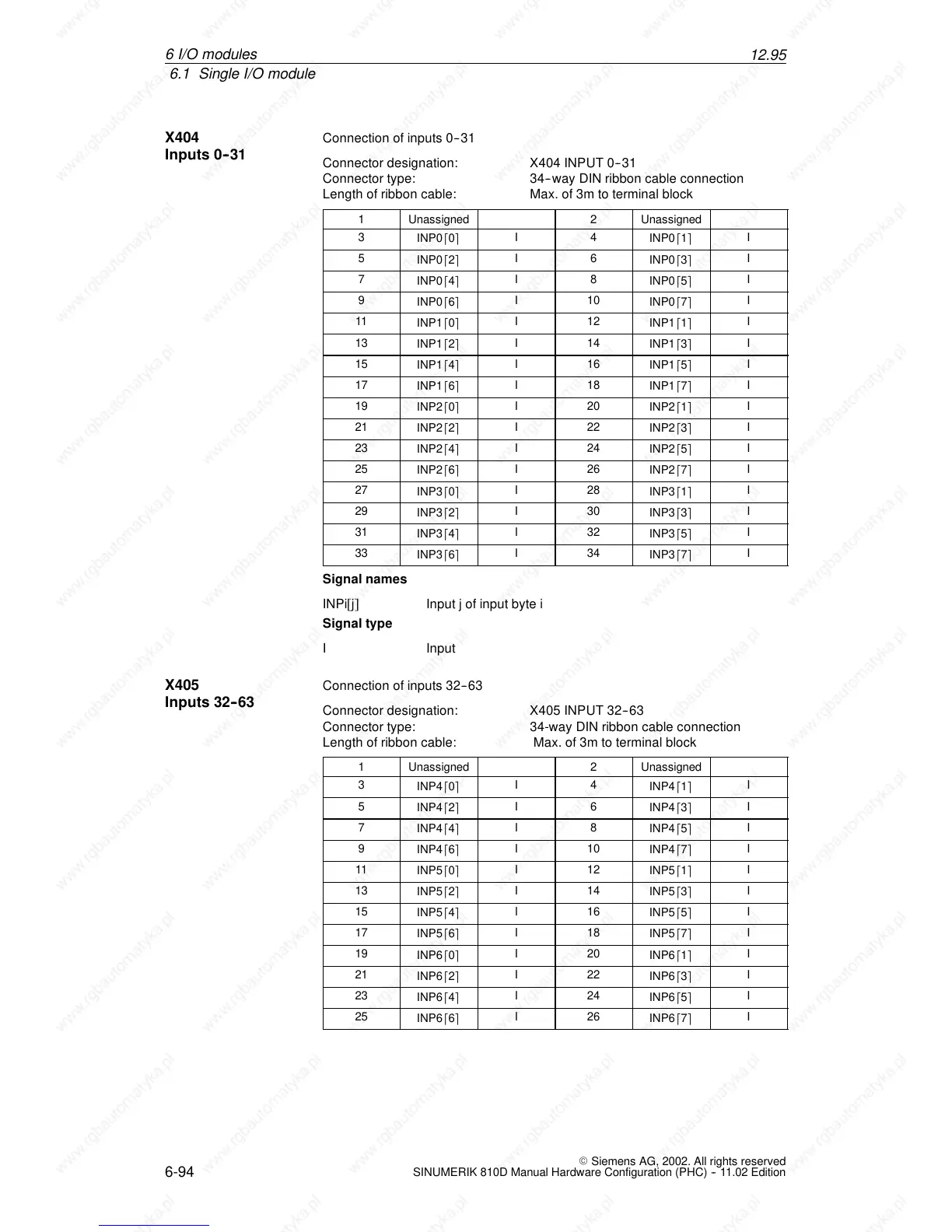

6.1 Single I/O module

6-94

SINUMERIK 810D Manual Hardware Configuration (PHC) -- 11.02 Edition

Connection of inputs 0--31

Connector designation: X404 INPUT 0--31

Connector type: 34--way DIN ribbon cable connection

Length of ribbon cable: Max. of 3m to terminal block

1 Unassigned 2 Unassigned

INP00

I 4

INP01

INP02

I 6

INP03

INP04

I 8

INP05

INP06

I 10

INP07

INP10

I 12

INP11

INP12

I 14

INP13

INP14

I 16

INP15

INP16

I 18

INP17

INP20

I 20

INP21

INP22

I 22

INP23

INP24

I 24

INP25

INP26

I 26

INP27

INP30

I 28

INP31

INP32

I 30

INP33

INP34

I 32

INP35

INP36

I 34

INP37

Signal names

INPiξjζ Input j of input byte i

Signal type

I Input

Connection of inputs 32--63

Connector designation: X405 INPUT 32--6 3

Connector type: 34-way DIN ribbon cable connection

Length of ribbon cable: Max. of 3m to terminal block

1 Unassigned 2 Unassigned

INP40

I 4

INP41

INP42

I 6

INP43

INP44

I 8

INP45

INP46

I 10

INP47

INP50

I 12

INP51

INP52

I 14

INP53

INP54

I 16

INP55

INP56

I 18

INP57

INP60

I 20

INP61

INP62

I 22

INP63

INP64

I 24

INP65

INP66

I 26

INP67

X404

Inputs 0 --31

X405

Inputs 32--63

O modu
