Dimension drawings

5



























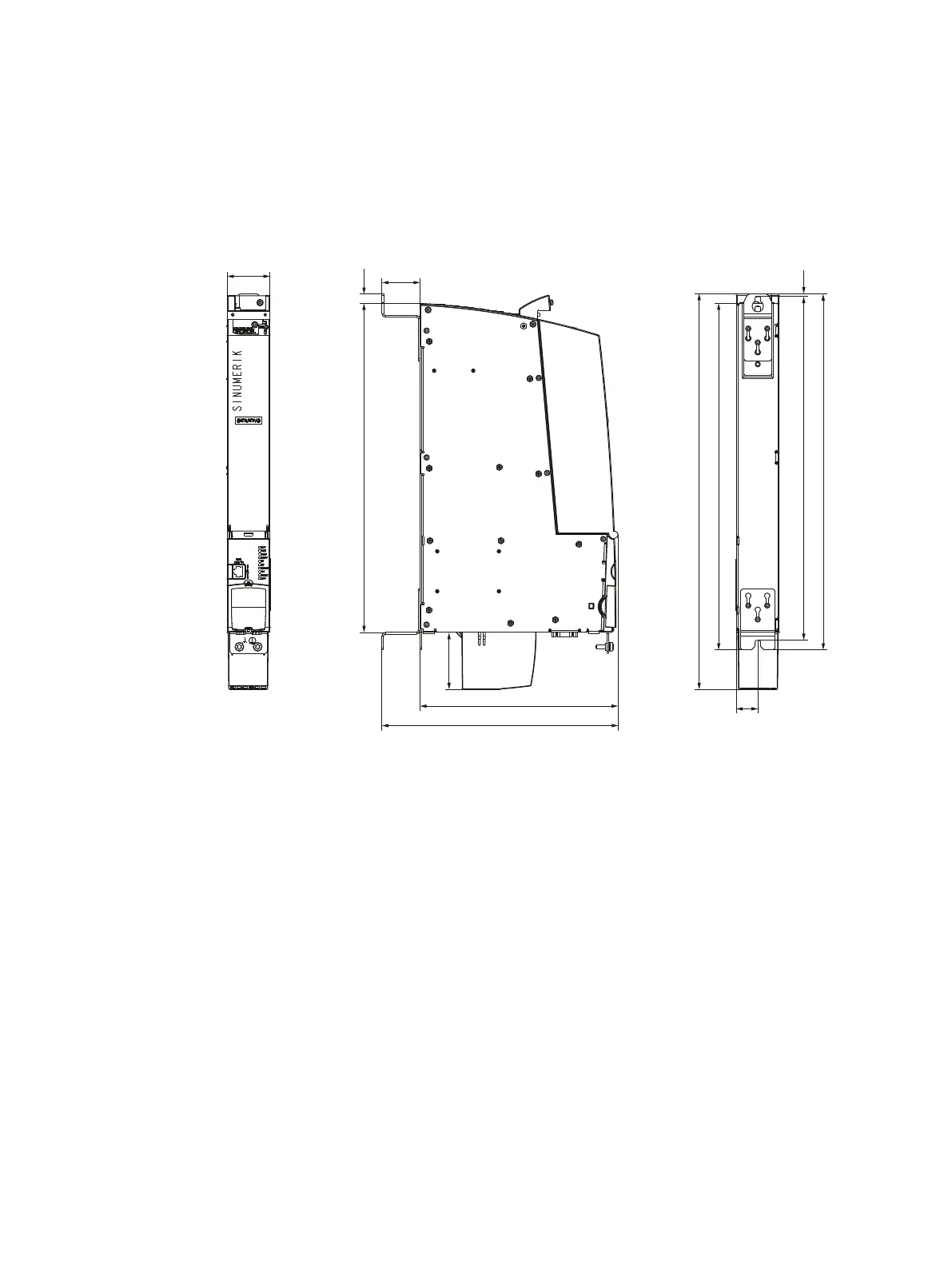

Figure 5-1 Dimension drawing NCU 710.3B PN, NCU 720.3B PN and NCU 730.3B PN; dimensions in mm

NCU 7x0.3B PN

Equipment Manual, 10/2020, 6FC5397-1EP40-6BA1 39
