Siemens SINUMERIK 840D sl Equipment Manual

Procedure
1. Release the latch on the inside of the front cover (the front cover is open and in the up
position) through slight pressure on it from the top.
2. Fold the front cover down to the front and bottom to give access to the interfaces.
+RRN
)URQWFRYHU
8QORFNLQJKRRN
%ODQNLQJSODWH
3LYRWLQJKLQJH

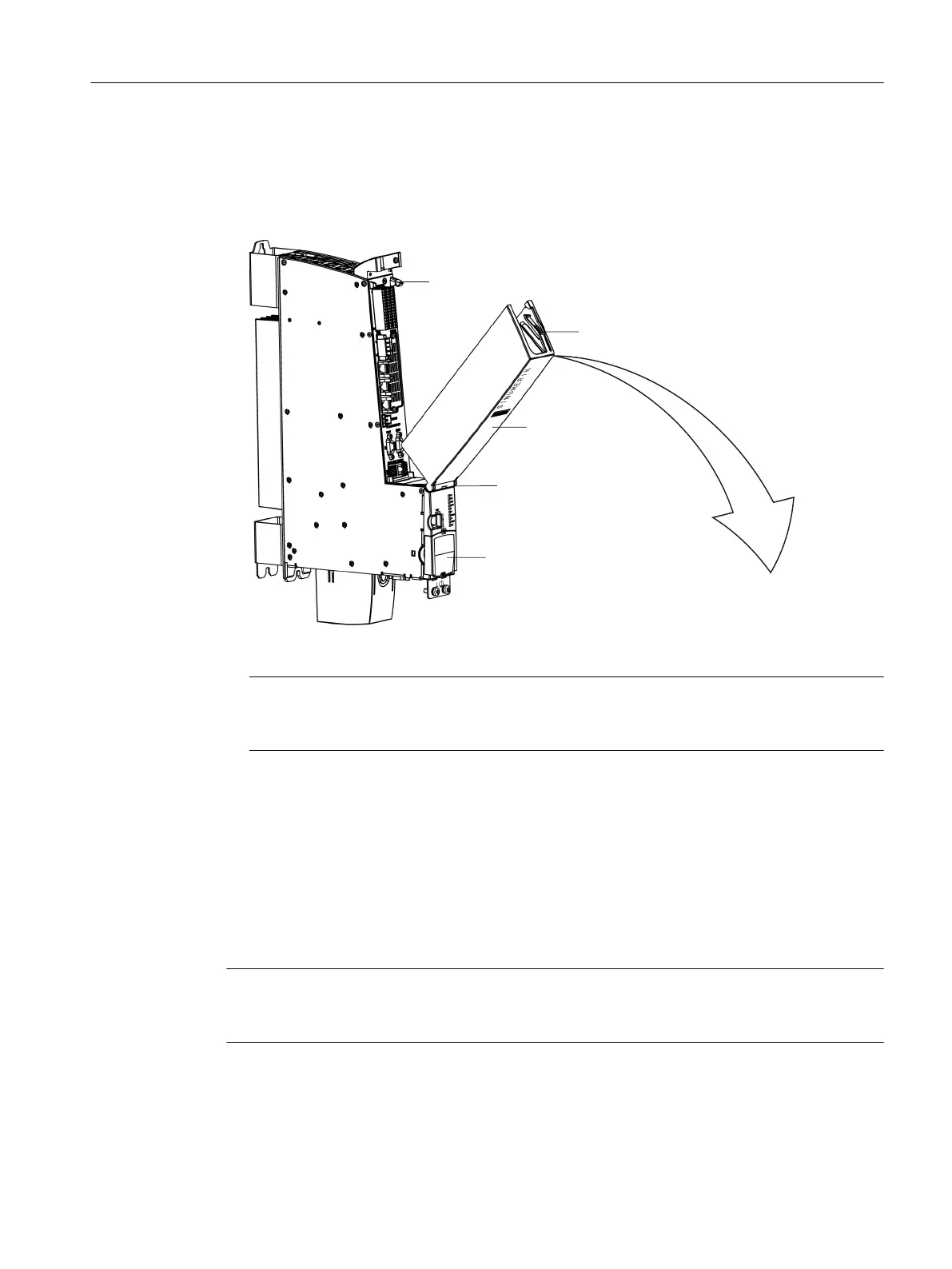

Figure 7-2 Removing the front cover
Note
All cables must be routed vertically upwards to the fullest extent possible so that the front
cover can be closed.
7.5 Power supply
7.5.1 Application
This interface is provided exclusively for connection of the external power supply.
Note
When using external power supplies (e.g. SITOP), the ground potential must be connected with
the protective ground terminal (PELV).
Connecting
7.5 Power supply
NCU 7x0.3B PN
Equipment Manual, 10/2020, 6FC5397-1EP40-6BA1 51

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
