7.12 Measuring sockets
Application
The measuring sockets are used to output analog signals. Any interconnectable signal can be
output on any measuring socket of the NCU.
Max. output range of the test signal: 0 ... 5 V
Measuring sockets have to be parameterized before use, as there is no default setting on
delivery.
Note
The measuring sockets should be used exclusively for servicing purposes.
The measurements may only be carried out by appropriately trained specialists.
Interface assignments
Table 7-32 Measuring sockets T0, T1, T2
Socket Function Technical data
T0 Test socket 1 Resolution: 8 bit.
Load current: max. 3 mA
continuous short-circuit-proof
The reference potential is terminal M
T1 Measuring socket 2
T2 Measuring socket 3
M Ground
The measuring sockets are only suited for banana plugs with a diameter of 2 mm.
Test socket position
;
7
7
0
7

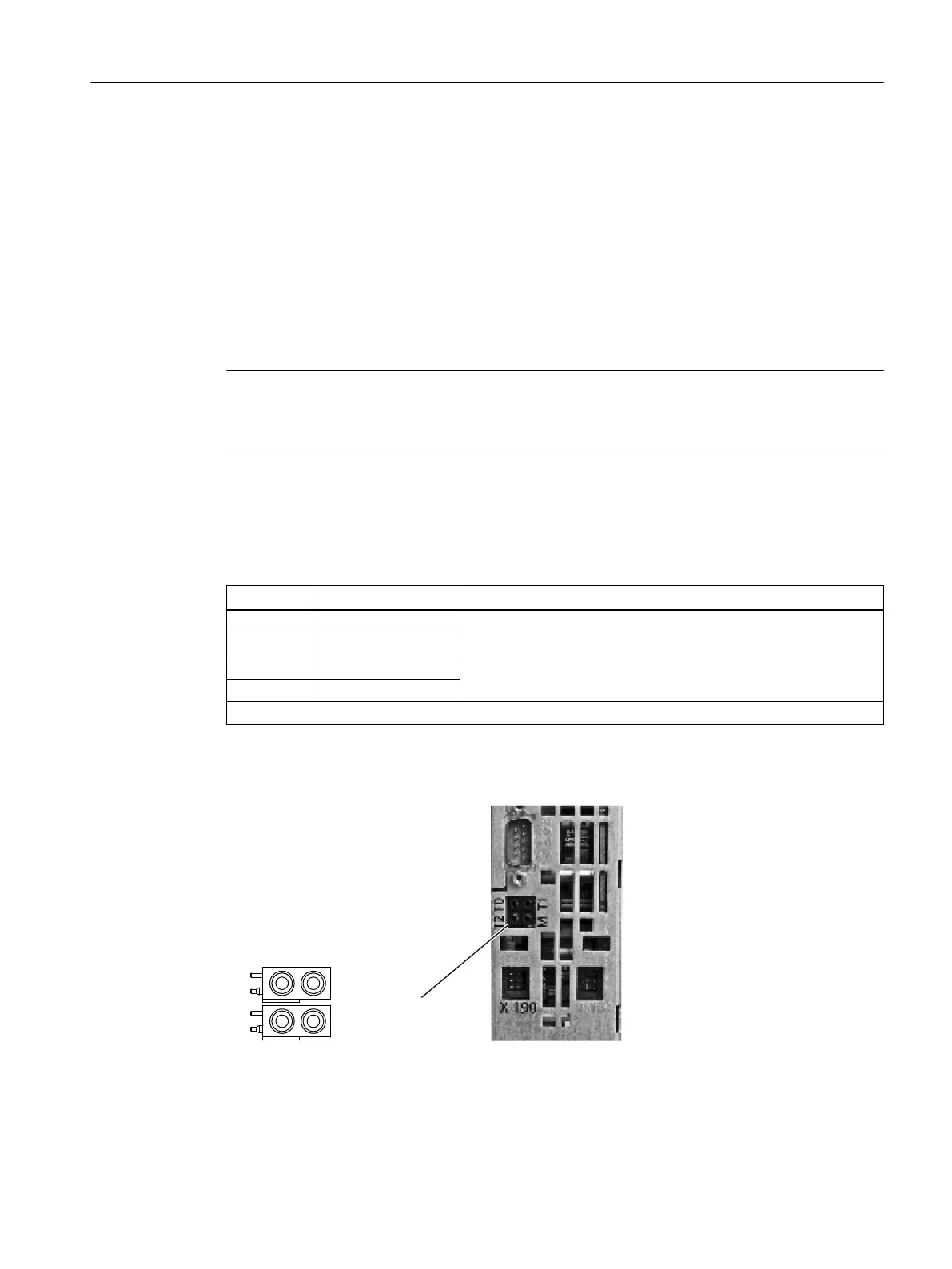

Figure 7-15 Arrangement of the measuring sockets on the lower side of the NCU
Connecting
7.12 Measuring sockets
NCU 7x0.3B PN
Equipment Manual, 10/2020, 6FC5397-1EP40-6BA1 83
