Figure 7-6 PROFINET interface
Cable speci󹪝cation
For PROFINET, you always require a data transmission rate of 100 Mbit/s (Fast Ethernet) in full
duplex mode. For data transfer purposes, you can use twisted-pair copper cables (4-wire,
100Base-T).
Table 7-15 Cable speci󹪝cation for X150 ports 1, 2
Characteristic Version
Connector type RJ45 jack *)
Cable type Industrial Ethernet cable (CAT5)
Max. cable length 100 m
*) Please use the Fast Connect connector as outlined in the chapter titled "PROFINET cables
(Page 62)".
7.8.2 PROFINET cables
Cable and connector types
Note
For connecting PROFINET to the NCU we recommend using a connector with a 145° cable outlet
(IE FC RJ45 plug 145).

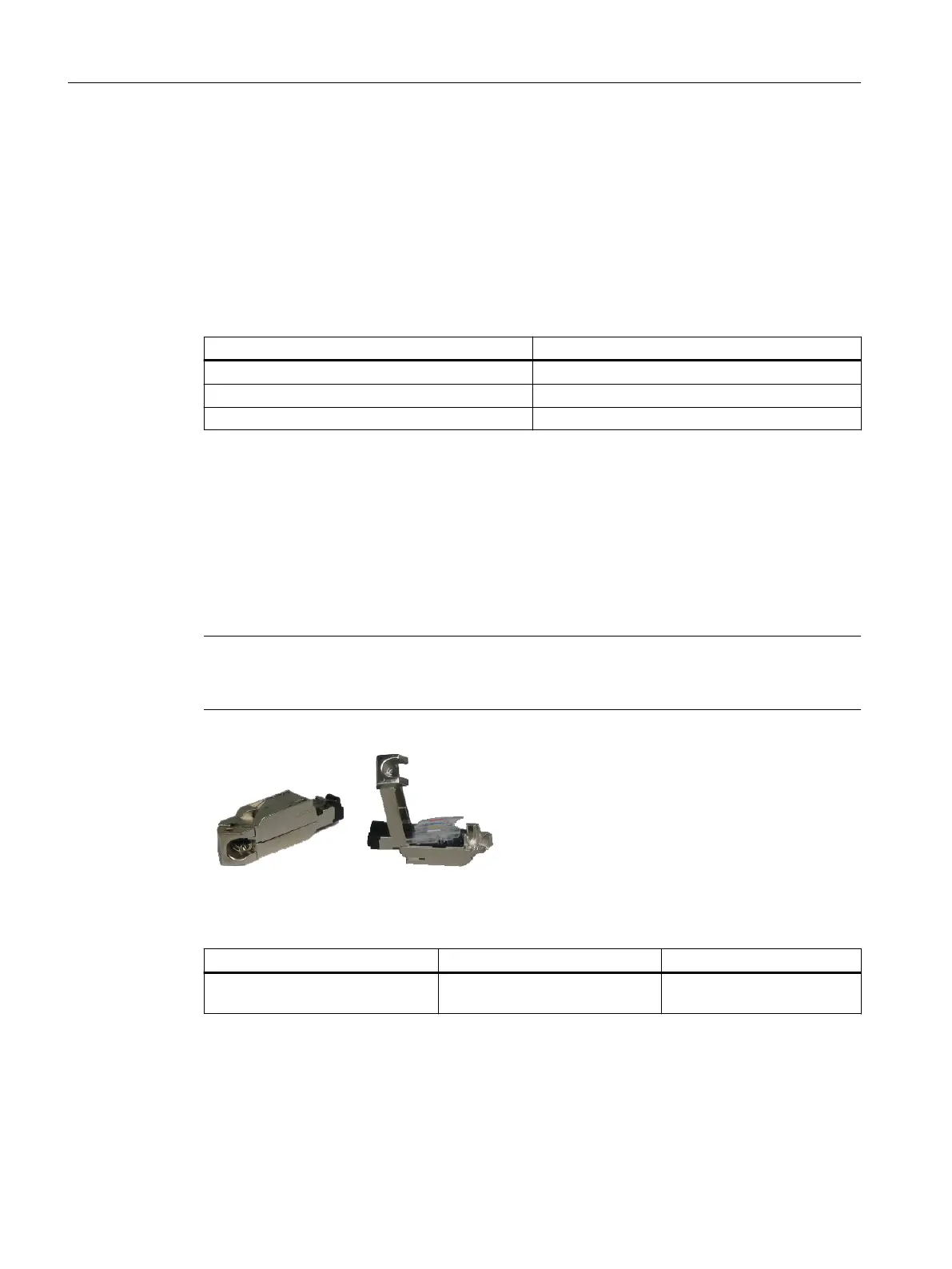

Figure 7-7 RJ45 PN connector with a 145°cable outlet
Table 7-16 Connector types for PROFINET
Connector Designation Order number
IE FC RJ45 plug 145 RJ45 PN connector with angled
exit
6GK1 901-1BB30-0AA0/
6GK1 901-1BB30-0AB0
Connecting
7.8 PROFINET
NCU 7x0.3B PN
62 Equipment Manual, 10/2020, 6FC5397-1EP40-6BA1

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
