Siemens SINUMERIK 840D sl - Connectable DRIVE-Cliq Components

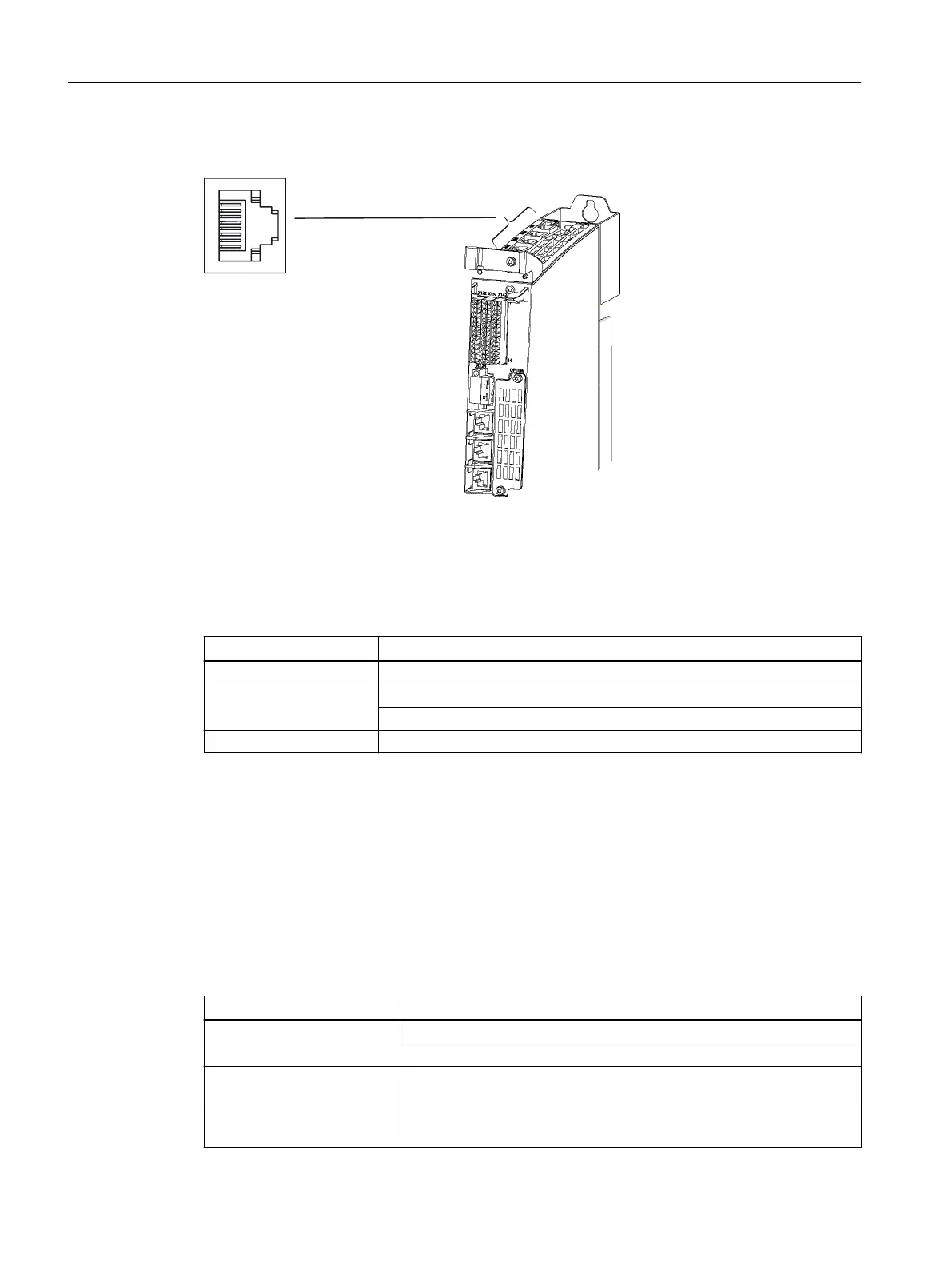

Position of the DRIVE-CLiQ interfaces
B
A
8
1
Figure 7-4 DRIVE-CLiQ interfaces
Cable speci󹪝cation
Table 7-7 Cable speci󹪝cation for X100 - X105
Characteristic Version
Connector type RJ45 socket
Cable type DRIVE-CLiQ standard (inside the control cabinet)
MOTION CONNECT (outside the control cabinet)
Max. cable length 70 m
7.6.2 Connectable DRIVE-CLiQ components
Components
As a rule, all SINAMICS/SIMOTION components approved for SINUMERIK can be connected to an
NCU using DRIVE-CLiQ.
Table 7-8 Components with DRIVE-CLiQ
Component Description
NX10.3 / 15.3 Drive expansion module for up to 6 axes
SINAMICS S120, system components, booksize format
Smart / Active / Basic
Line Module
Line Modules provide the central power supply to the DC link.
Single / Double Motor Module Motor Modules draw their power from the DC link to supply the connec‐
ted motors.
Connecting
7.6 DRIVE-CLiQ components
NCU 7x0.3B PN
56 Equipment Manual, 10/2020, 6FC5397-1EP40-6BA1
