Siemens SINUMERIK 840D sl - Page 98

5DSLGLQSXWV
PXVWEHVKLHOGHG
-XPSHURSHQHOHFWULFDOLVRODWLRQ
IRUGLJLWDOLQSXWV',
&DQEHSDUDPHWHUL]HGDV
LQSXWRXWSXW
H[W
9'&
0
0

','2
','2
','2
0
0
',
',
',
',
','2









;





',
',



0
0

9
0
;
0

0

0
1XPHULFDO([WHQVLRQ1;

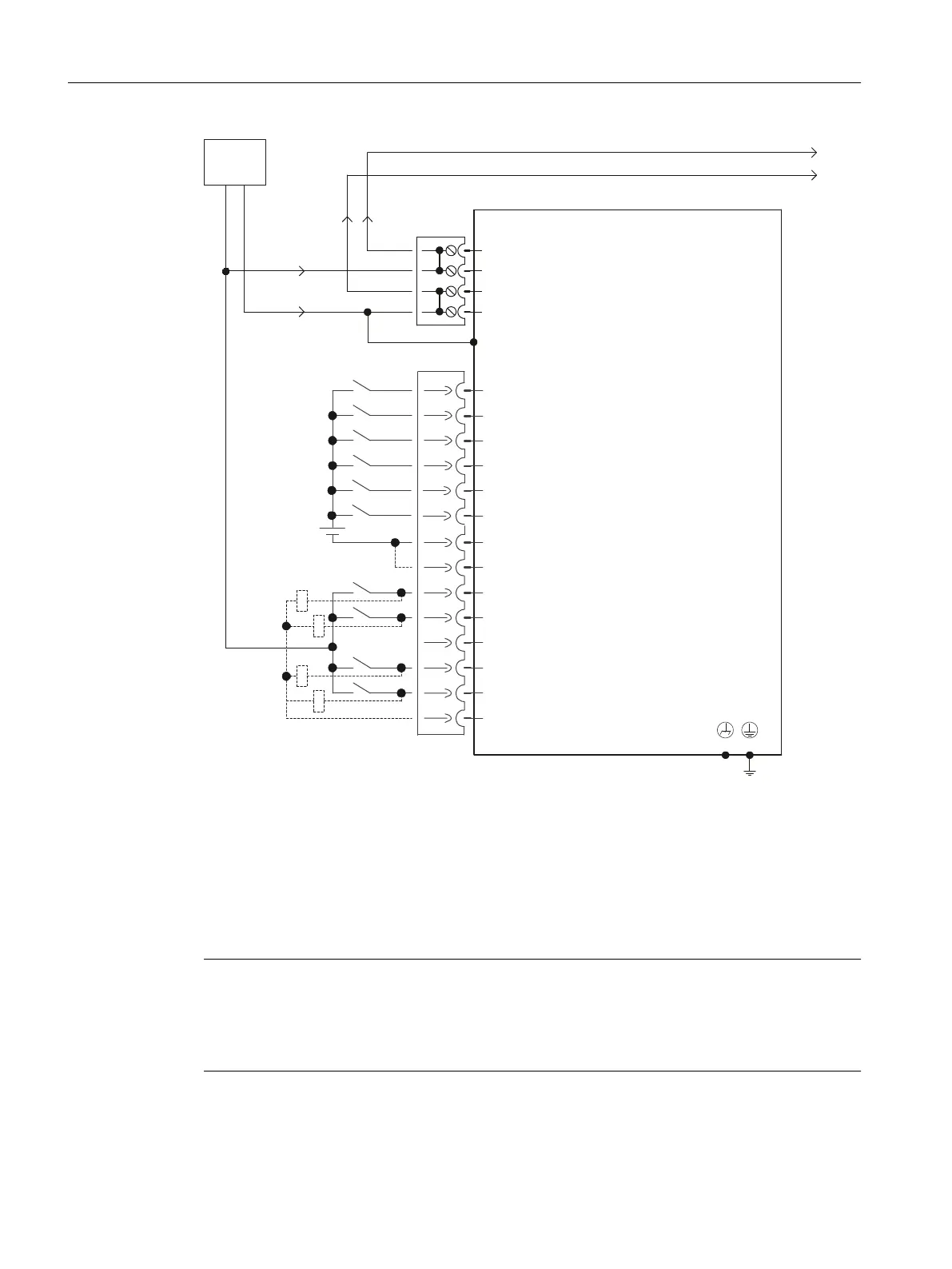

Figure 9-6 Block diagram for digital inputs/outputs
Measuring sockets
Purpose
The T0, T1 and T2 measuring sockets output analog signals. Any signal interconnectable via
SINAMICS can be output on any measuring socket of the NX.
Note
The measuring sockets should be used exclusively for servicing purposes.
The measurements may be performed only by appropriately trained skilled personnel.
The measuring sockets are suitable only for multiple-spring wire plugs with a diameter of 2 mm.
Connectable components
9.1 NX10.3 / NX15.3
NCU 7x0.3B PN
98 Equipment Manual, 10/2020, 6FC5397-1EP40-6BA1
