10.8 Trace function (SW 4.2 and higher)
10-232
 Siemens AG 2000 All Rights Reserved
SINUMERIK 840D Installation and Start-Up Guide (IAD) – 04.00 Edition

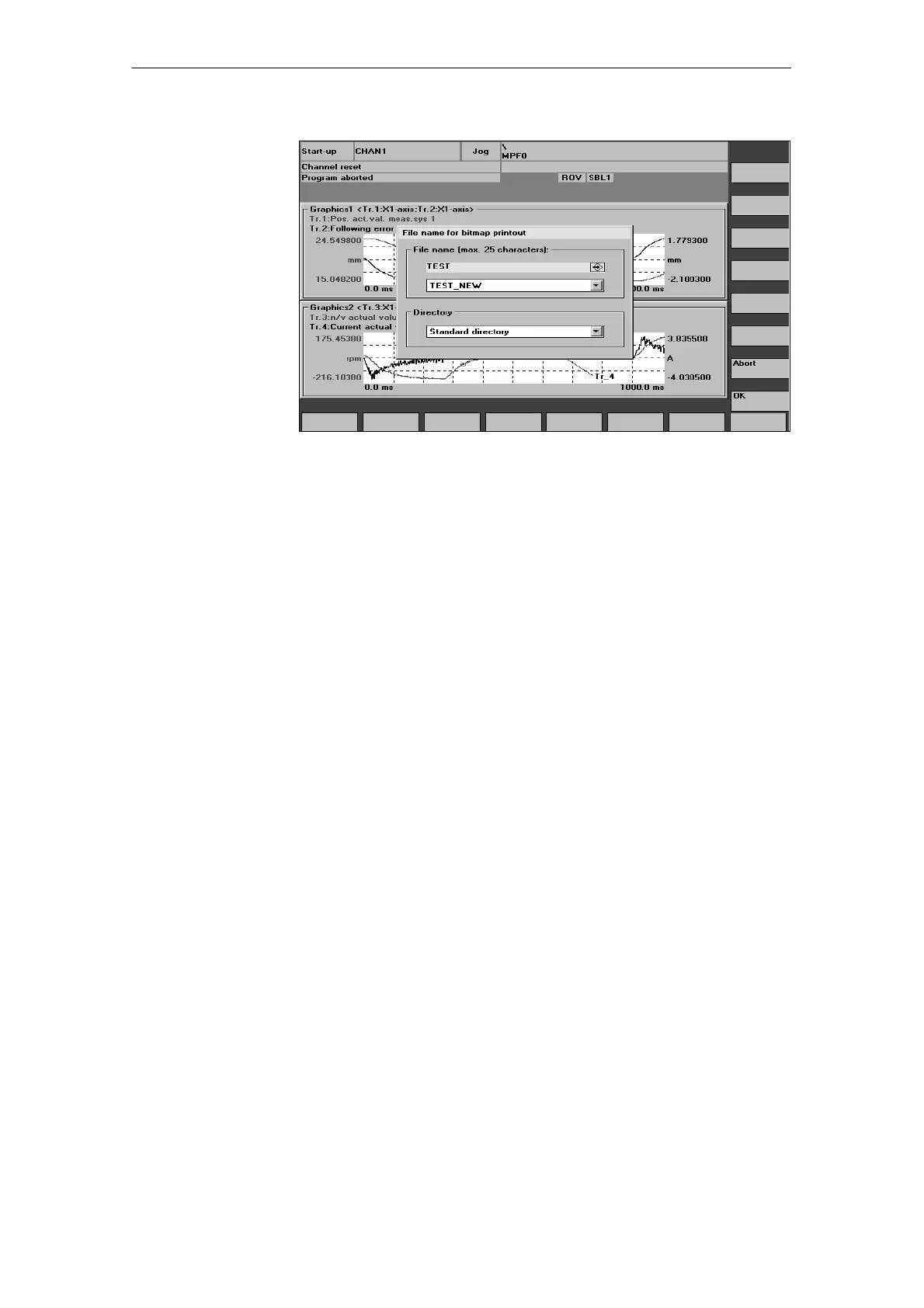

Fig. 10-15 File name assignment for bitmap printing
In the “File name” box, you can select an existing file from the dropdown list or
enter one in the text field underneath.
In the “Directory” box, you can select the directory under which you want to
save the file.
This can also be a directory under “Services” or the basic directory of data man-
agement (list entry: standard directory).
With the softkey OK, the file is saved.
With the softkey Cancel you can return to the current graphic display.
Assigning
file names
Selecting the
directory
10 Drive Optimization with Start-Up Tool
05.98

Siemens SINUMERIK 840D Specifications

General

Series	SINUMERIK 840D
Axes	Up to 31
Channels	Up to 10
Operating System	Windows-based
Power Supply	24 V DC
Control Unit Type	CNC
Interface	Ethernet, PROFIBUS
Display	TFT color display
Interpolation	Spline
PLC	Integrated PLC
Data Storage	CompactFlash, USB
