10.10 Automatic controller setting (only MMC 103, SW 4.3 and higher)
10-236
 Siemens AG 2000 All Rights Reserved
SINUMERIK 840D Installation and Start-Up Guide (IAD) – 04.00 Edition

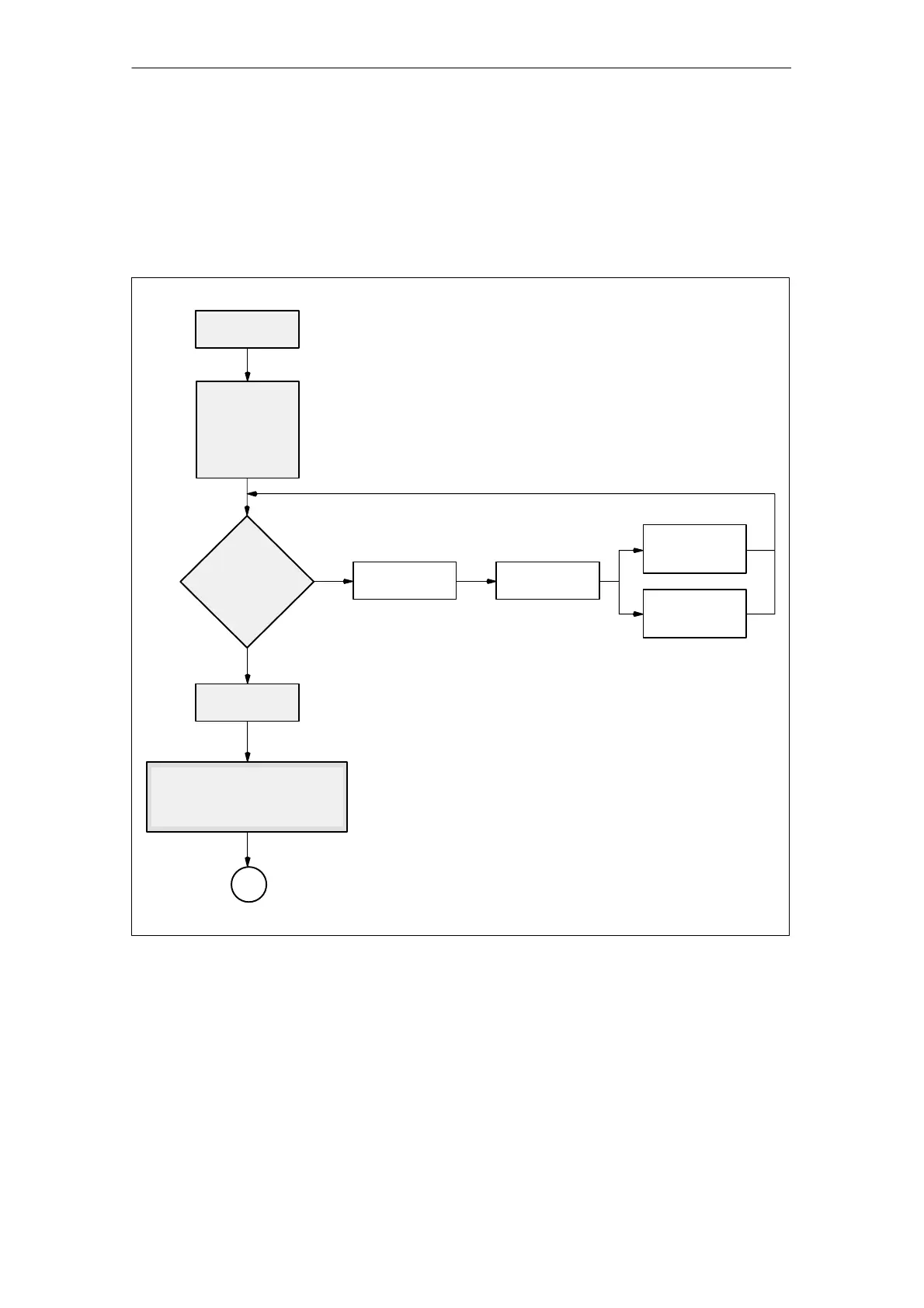

10.10.1 Flow chart for self-optimization
Self-optimization can be terminated at any time by pressing the “Cancel” soft-
key.
1
SK “Start”
Load current
drive MD
and write stan-
dard values
Start mech.
measurement
part 1?
SK “OK”
Confirm NC Start prompt
Caution:
When you activate NC Start, the
axis starts to move!
SK “Parameter”
Enter measur.
parameters
SK “Cancel”
(discard
changes)
SK “OK”
(accept
values)
10 Drive Optimization with Start-Up Tool
05.9805.98

Siemens SINUMERIK 840D Specifications

General

Series	SINUMERIK 840D
Axes	Up to 31
Channels	Up to 10
Operating System	Windows-based
Power Supply	24 V DC
Control Unit Type	CNC
Interface	Ethernet, PROFIBUS
Display	TFT color display
Interpolation	Spline
PLC	Integrated PLC
Data Storage	CompactFlash, USB
