Siemens SINUMERIK ONE 6FC5317-5AA00-0AA0 - NX10.3;NX15.3 Mounting

12.1.3 Mounting
Mounting aids







① Fixing lug
② Angle plate
③ Holding plate
④ Cutouts for side mounting
⑤ Fixing lug
⑥ Bracket
⑦ Pin

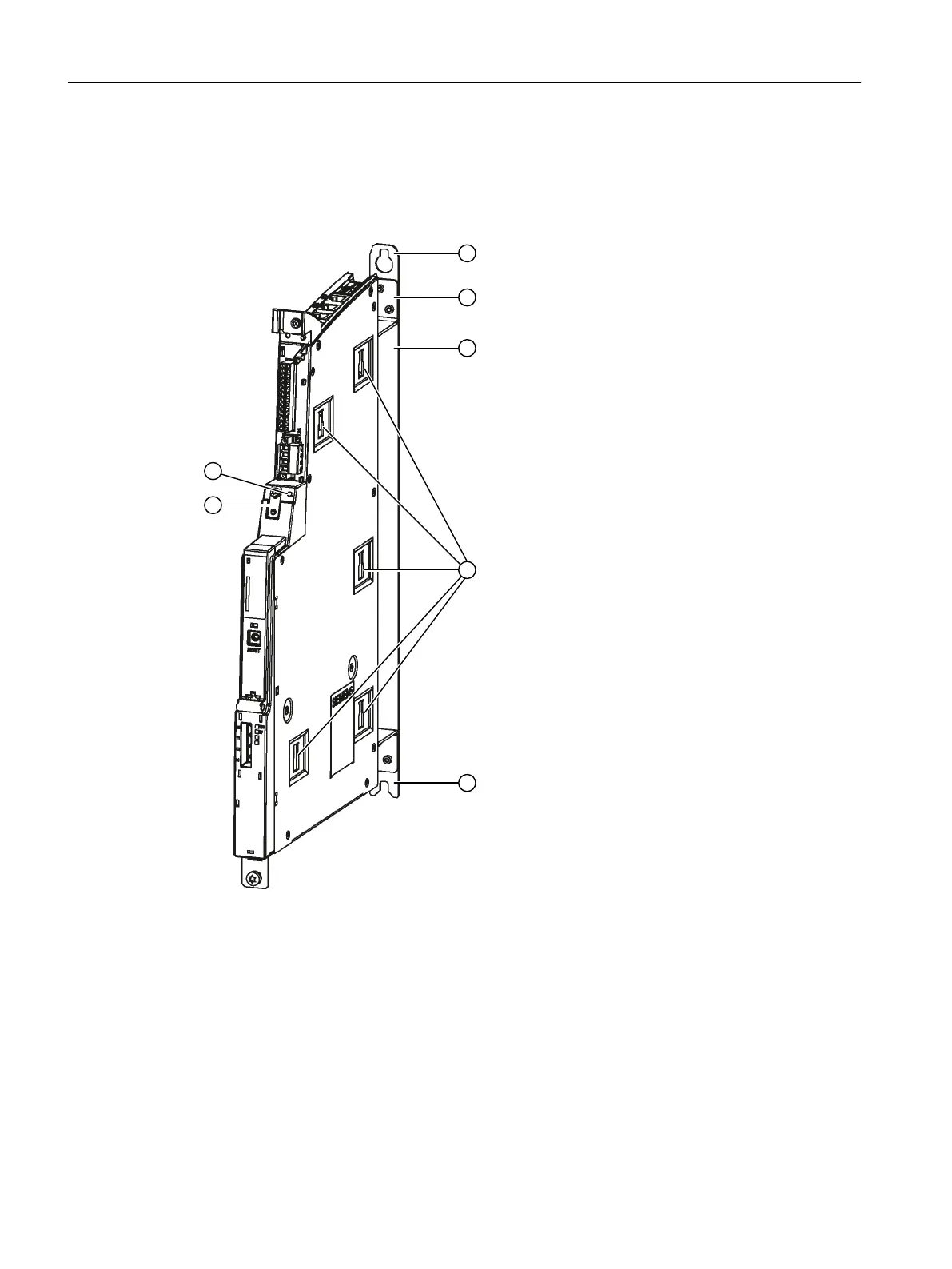

Figure12-4 Mounting aids for the NX module
