([WHUQDO352),%86'3

'5,9(&/L4FRPSRQHQWVRIWKH1&8

1;VXEWRSRORJ\

1;VXEWRSRORJ\

'3DGGUHVV

'3DGGUHVV

1&8

;

;



;



;

;



;

(7

1;

1;

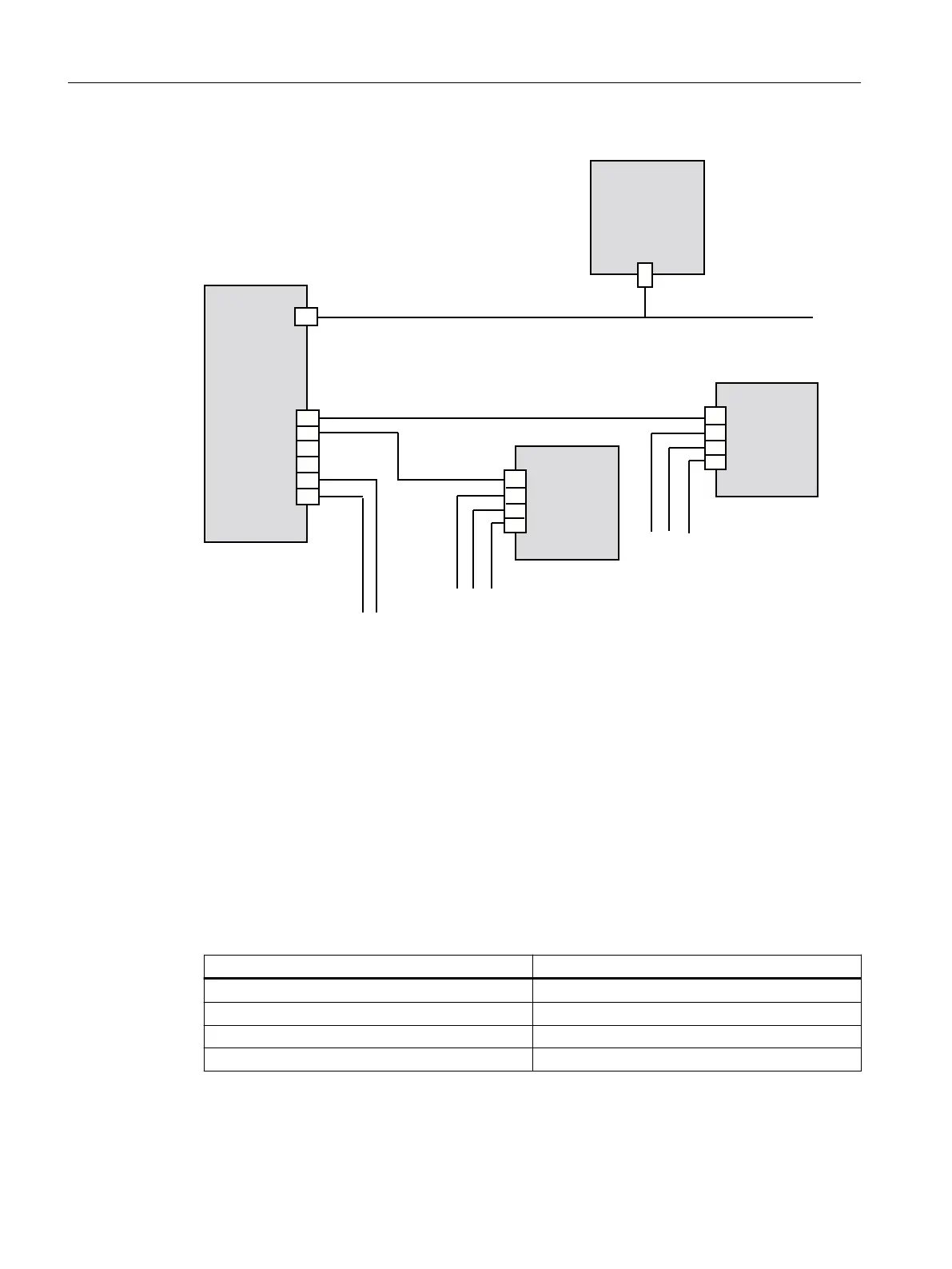

Figure12-5 NX topology

X122 digital inputs/outputs

When commissioning the drive wizard, the digital inputs/outputs are correspondingly

preassigned functions.

For more information about terminal assignment, see:

• "Guidelines for machine con󹪝guration" System Manual, Chapter "Interfaces and their

terminal assignment"

• Commissioning Manual "IBN CNC: NCK, PLC, drive", Chapter "Communication interfaces and

terminal assignment"

Table 12-7 Interface characteristics of X122

Characteristics Version

Connector type 14-pin spring-loaded terminal

Connection option 0.2 to 1.5 mm

Max. current carrying capacity 6 A

Max. cable length 30m

Connectable components

12.1NX10.3/NX15.3

NCU 1750

108 Equipment Manual, 10/2023, A5E45627807B AH
