PIN Signal name Signal type Meaning
8 - - Reserved, do not use
A + (24 V) VO Voltage supply for DRIVE-CLiQ, 450 mA maximum
B M (0 V) VO Ground to 24 V
Signal type: I = Input; O = Output; VO = Voltage Output

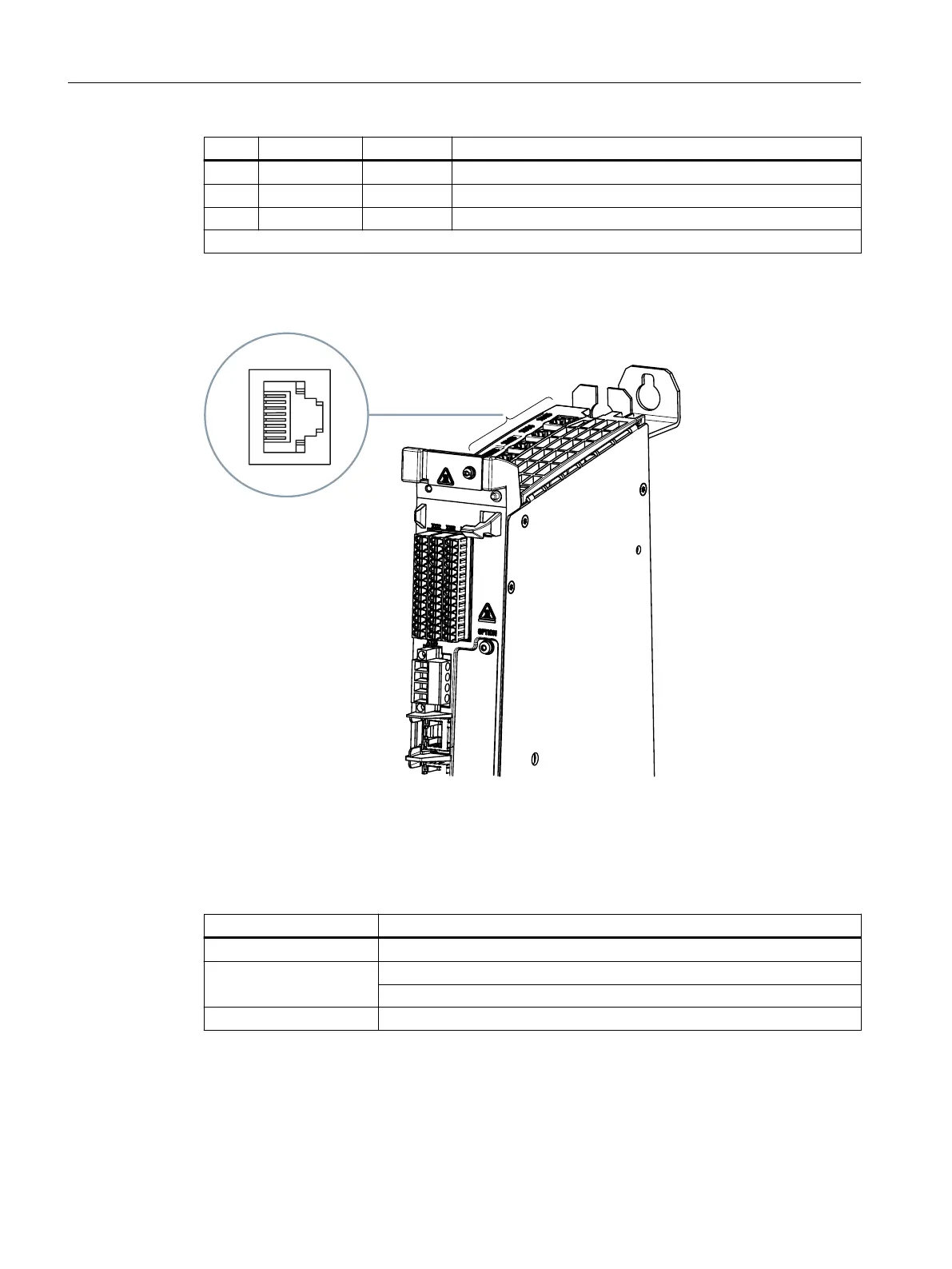

Position of the DRIVE-CLiQ interfaces
Figure8-3 DRIVE-CLiQ interfaces
Cable specication
Table 8-6 Cable specication for X100 - X105
Characteristic Version
Connector type RJ45 socket
Cable type DRIVE-CLiQ standard (inside the control cabinet)
MOTION-CONNECT (outside the control cabinet)
Max. cable length 70 m
Connecting
8.6DRIVE-CLiQ components
NCU 1750
70 Equipment Manual, 10/2023, A5E45627807B AH
