2 Functions
156
7UT613/63x Manual
C53000-G1176-C160-2

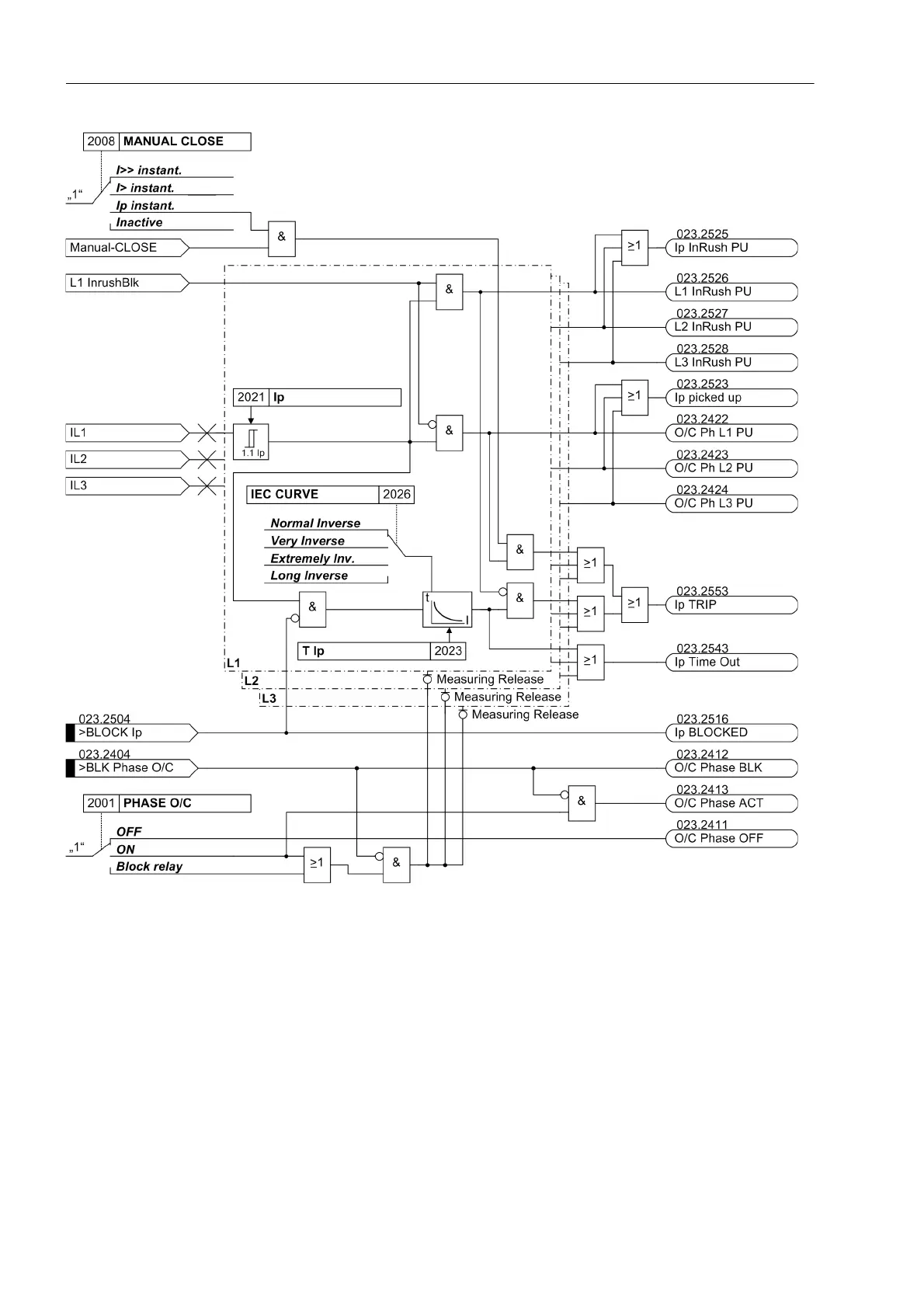

Figure 2-69 Logic diagram of the inverse overcurrent protection for phase currents — example of IEC characteristic
(simplified)
