A Appendix
536
7UT613/63x Manual
C53000-G1176-C160-2
A.3.2
V
oltage T
ransformer Connection Examples
Figure
A-27

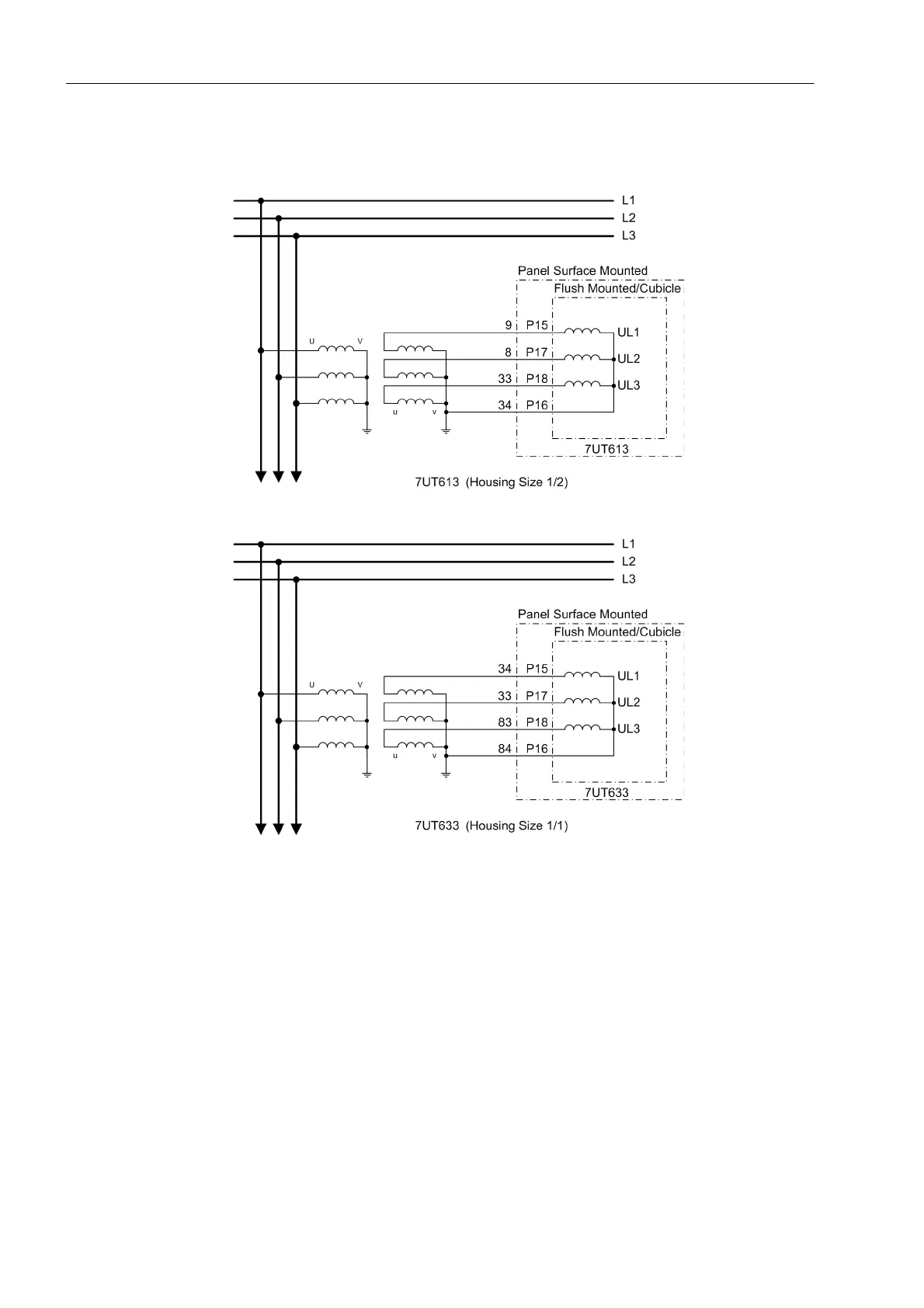

V
oltage connections to
three wye-
con
nected voltage transformers (only in
7UT613 and 7UT633)
