A.3 Connection Examples
535
7UT613/63x Manual
C53000-G1176-C160-2

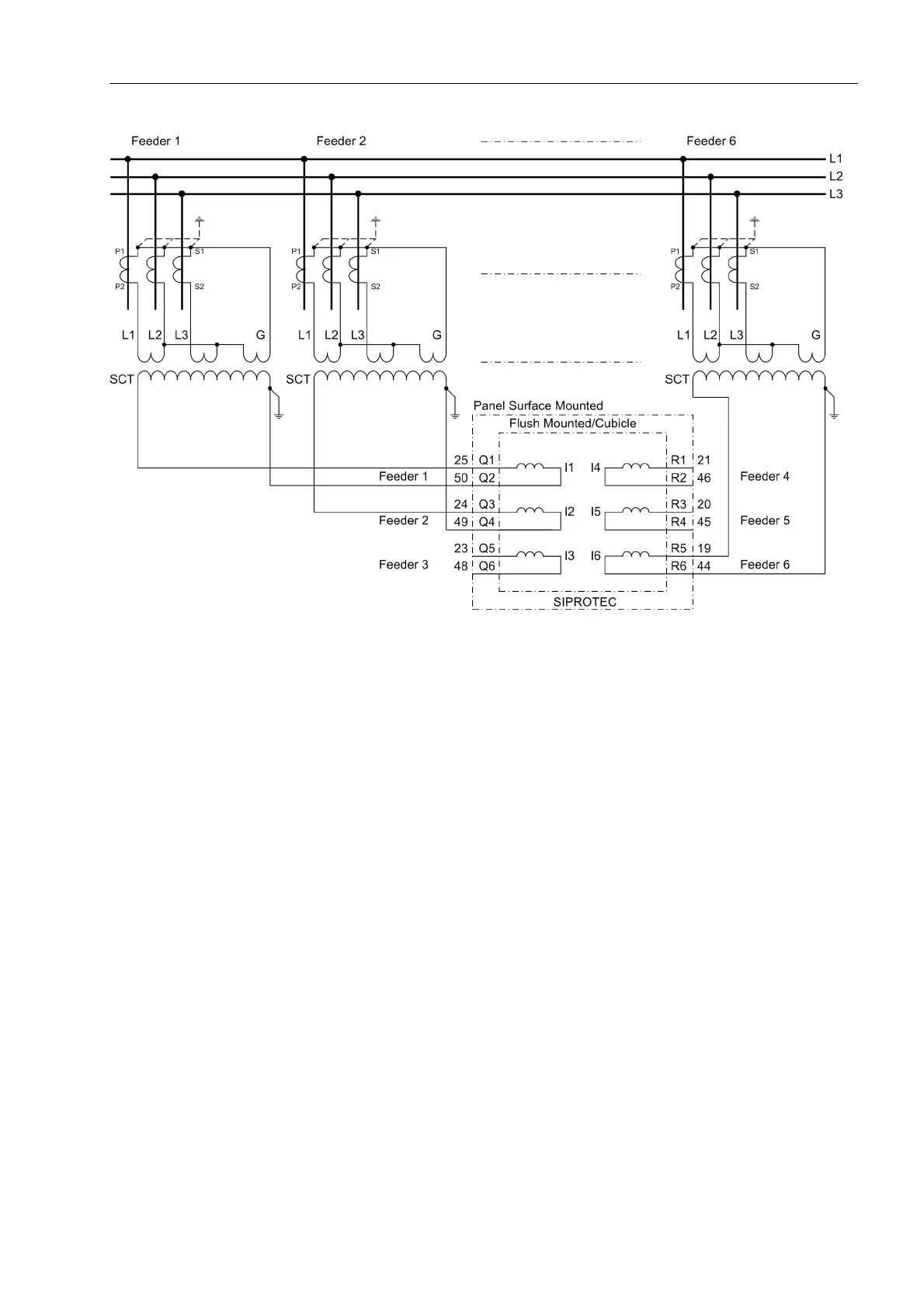

Figure A-26 Connection example 7UT613 as busbar protection for 6 feeders, connected via external summation trans-
formers (SCT) — partial illustration for feeders 1, 2 and 6
