3.1 Mounting and Connections
359
7UT613/63x Manual
C53000-G1176-C160-2
Input/Output Board
C-I/O-9 (all models)
The input/output board C-I/O-9 is used in the versions 7UT613, 7UT633 and 7UT635.
Mounting location: for 7UT613 slot 33, for 7UT633 and 7UT635 slot 33 right side

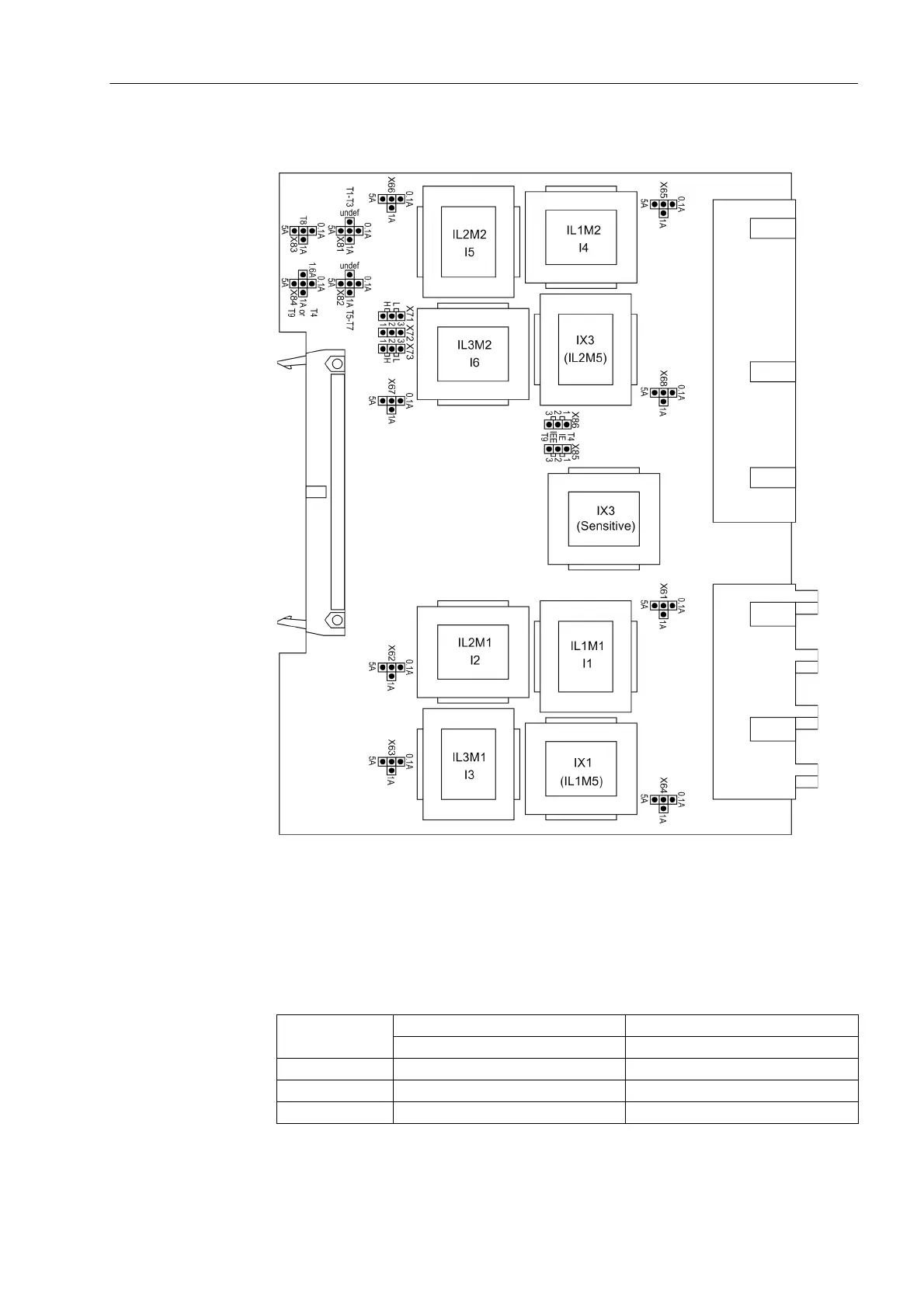

Figure 3-9 Input/output boards with representation of the jumpers required for checking the
settings
Jumpers X71 through X73 serve for module identification and must not be changed.
The following table shows the preset jumper positions.
Table 3-15 Jumper settings of the module addresses of input/output boards C-I/O-9; slot
33 in 7UT613 or slot 33 right in 7UT633 and 7UT635
Jumper
7UT613 7UT633 and 7UT635
Slot 33 Slot 33 right side
X71 2-3 (L) 2-3 (L)
X72 1-2 (H) 1-2 (H)
X73 2-3 (L) 2-3 (L)
