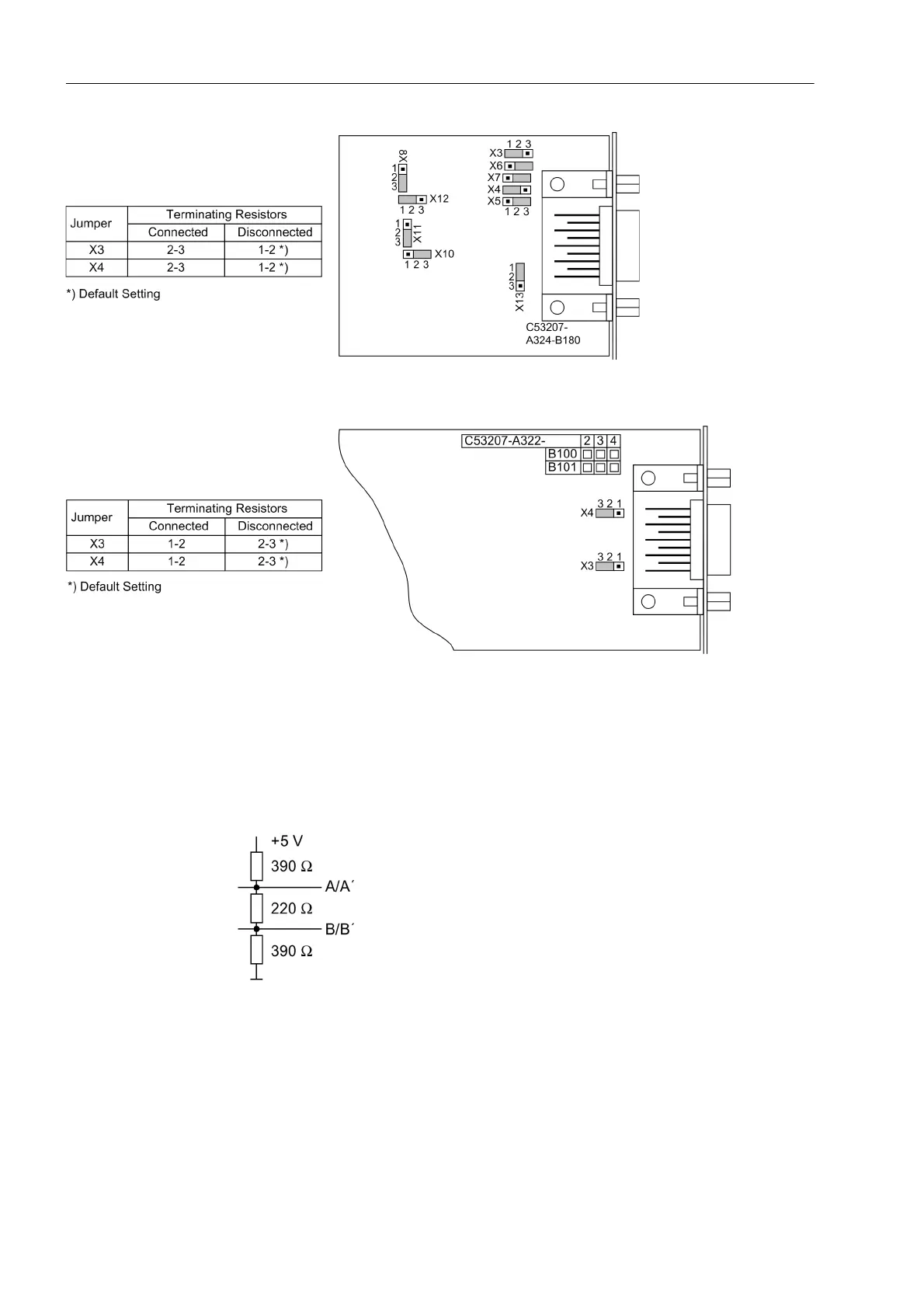

Figure 3-13 Position of terminating resistors and the plug-in jumpers for configuration of the RS485 interface
Figure 3-14 Position of the plug-in jumpers for the configuration of the terminating resistors at the Profibus (FMS and
DP), DNP 3.0 and Modbus interfaces
Terminating resistors can also be implemented outside the device (e.g. in the plug con-
nectors). In this case, the terminating resistors located on the RS485 or PROFIBUS
interface module must be switched off.
Figure 3-15 Termination of the RS485 interface (external)
