A Appendix
546
7UT613/63x Manual
C53000-G1176-C160-2
For devices with a graphic display, the basic displays shown below may appear: The
device will display only those values that make sense for the current application. For
instance, voltages and powers will only be shown if the device is provided with voltage
inputs and these inputs have been configured; with single-phase transformers there
will be no phase L2.

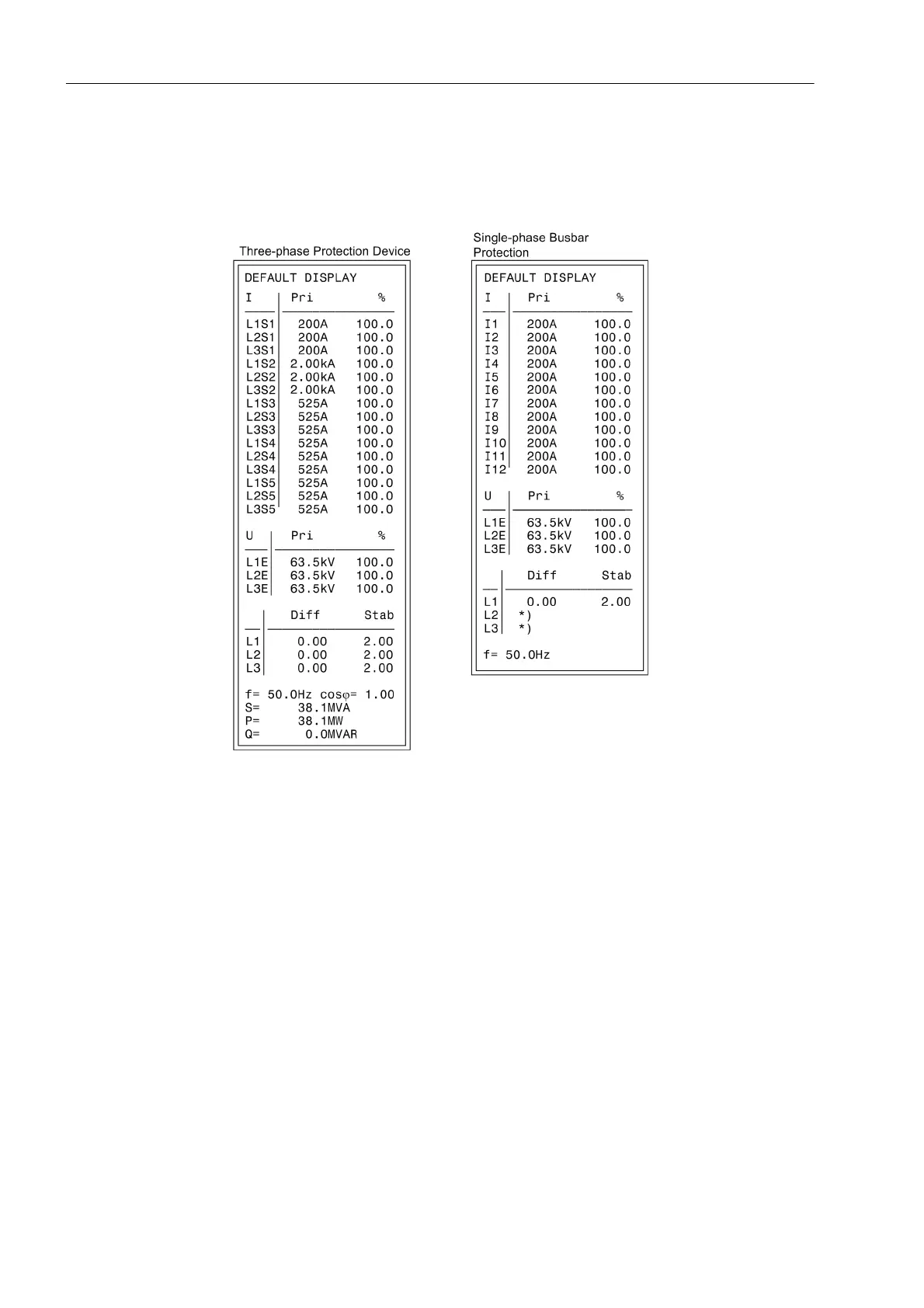

Figure A-32 Basic graphic displays
*) depending on the phase connected (address 396 PHASE SELECTION)
