SIRIUS 3RT2 contactors/contactor assemblies
2.2 Product description
SIRIUS Innovations
108 System Manual, 01/2011, A8E56203870002-03
The illustrations below show example equipment features of the 3RT2 power contactors for
switching motorized loads.
3RT2 power contactors (size S00)
/
/
/
12
$
7
7
7
1
2
$
57
1 Coil terminal on the front
2 Openings for voltage tap of the main circuit (communication-capable power contactor only)
3 Location hole for surge suppression
4 Location hole for 1-, 2-, and 4-pole auxiliary switch blocks
5 Labeling plate
6 1 integrated auxiliary contact
7 Contactor's main circuit terminal to the load/motor connection (T1, T2, T3)
8 Contactor's main circuit terminal to the power network (L1, L2, L3)

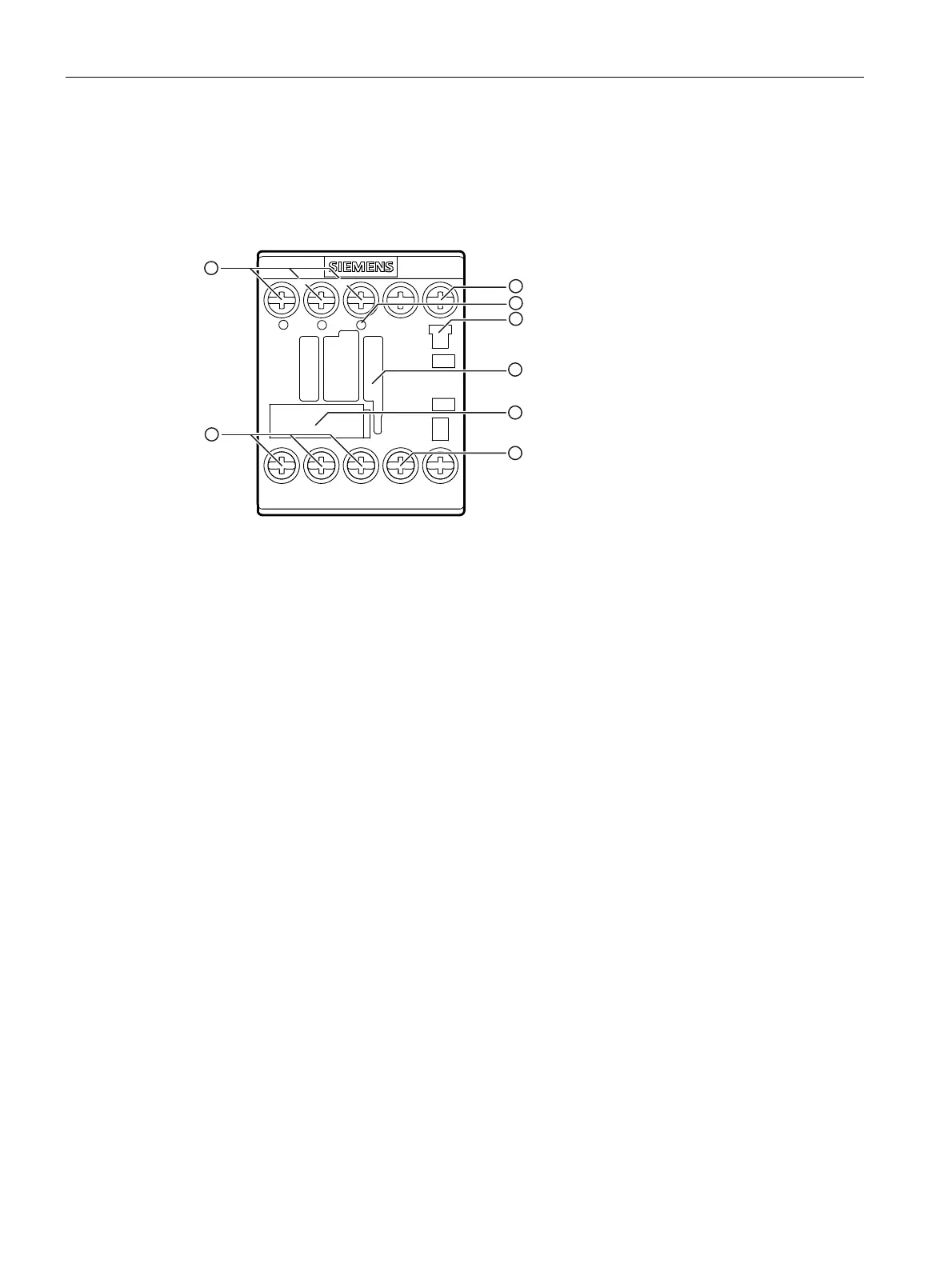

Figure 2-5 3RT201.-.....-.... power contactor, size S00, overview
