System overview
1.10 Connection to the higher-level control
SIRIUS Innovations
System Manual, 01/2011, A8E56203870002-03
97
1.10.3.5 System components
Numerous system components are offered to perform communication. The main
components of a system installation are:
● Master interfaces for central control units such as SIMATIC S5 and SIMATIC S7, ET 200
M distributed I/O, or routers from PROFIBUS/PROFINET to AS-Interface.
● AS-Interface shaped cable
● Network components, e.g. repeater and extension plug
● Power supply unit for powering the slaves
● Modules for connecting standard sensors/actuators
● Actuators and sensors with integrated AS-i slave
● Secure modules for transferring safety-related data over AS-Interface
● Addressing device for setting slave addresses during commissioning
$6,QWHUIDFH0DVWHU
$6,QWHUIDFH/LQNV
&33
6,0$7,&6
6,0$7,&6
&3
,($6L/,1.31,2
'3$6L/,1.$GYDQFHG
'3$6,QWHUIDFH/LQN(
'3$6L)/LQN
6,027,21&
352),1(7
,QGXVWULDO(WKHUQHW
352),%86 $6,QWHUIDFH
&3
&33
$6,QWHUIDFH

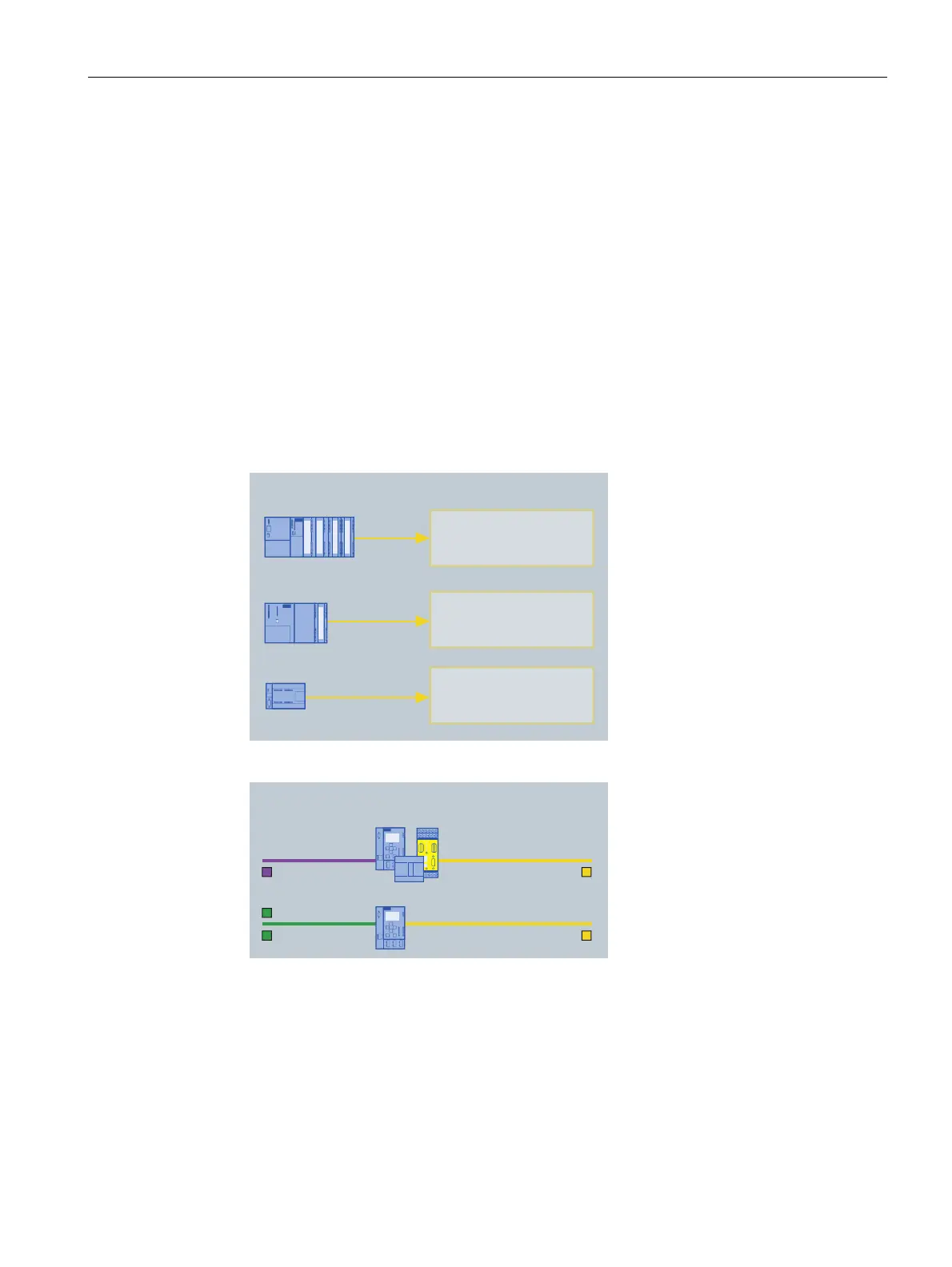

Figure 1-45 AS-Interface master and AS-Interface links
