SIRIUS 3RV2 motor starter protectors
4.9 Accessories
SIRIUS Innovations
System Manual, 01/2011, A8E56203870002-03
411
4.9.3.2 Mounting
Note
The auxiliary switches are mounted in the same way for all sizes.

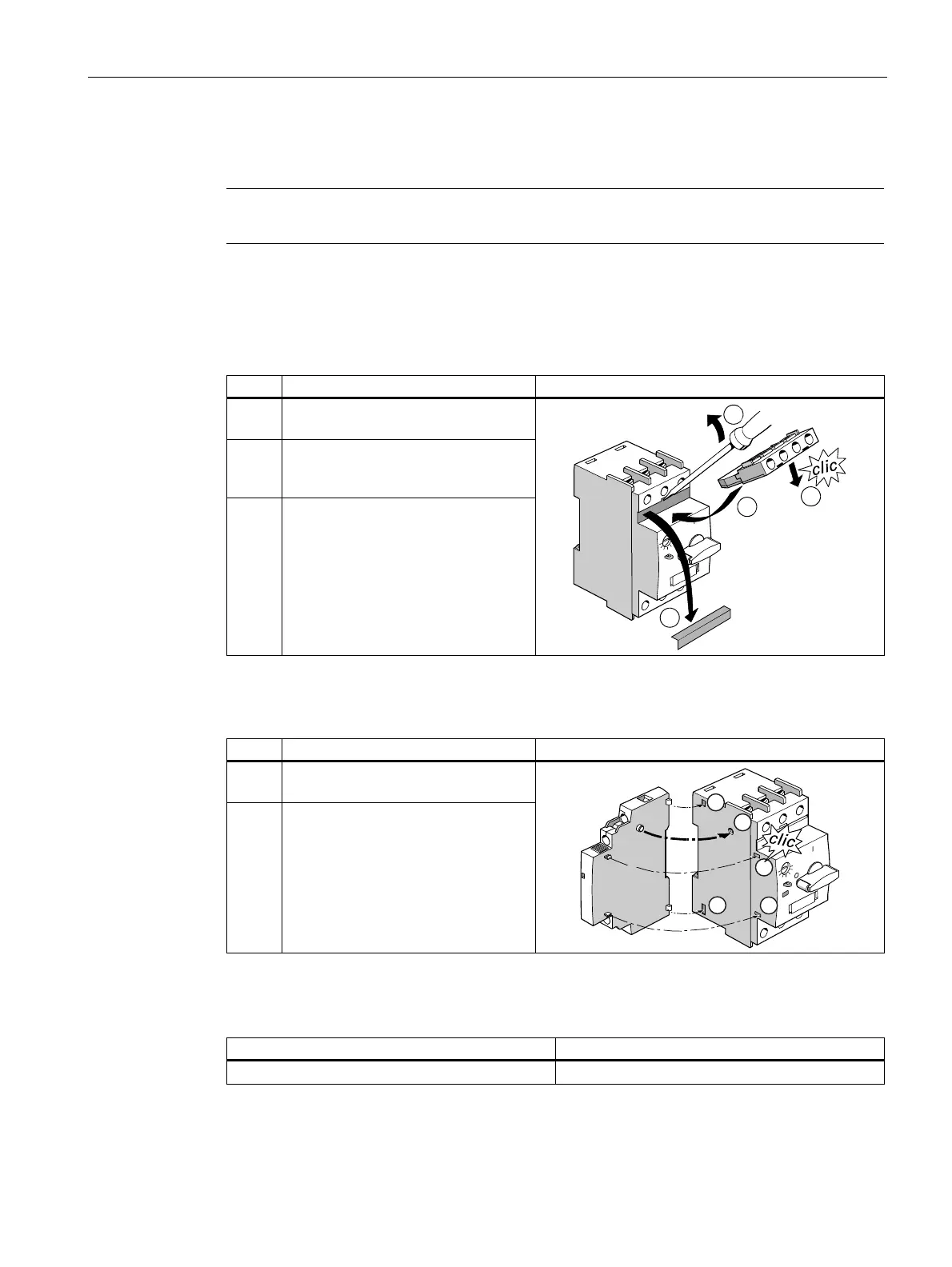

Mounting auxiliary switches
Table 4- 9 Mounting a transverse auxiliary switch
Step Operating instruction Figure
1 / 2 Using a screwdriver, carefully force
off the cover.
3 Slant the transverse auxiliary switch
and push it into the opening on front
of the motor starter protector.
4 Press the transverse auxiliary switch
down until you hear it engage.
Table 4- 10 Mounting a lateral auxiliary switch
Step Operating instruction Figure
1 Attach the lateral auxiliary switch to
the rear of the motor starter protector.
2 Press the auxiliary switch to the
motor starter protector until you hear
it engage.
Reference
More information ... Is available in ...
About connection the chapter titled Circuit diagrams (Page 482)
