1.10.2.3 Applications
Applications
IO-Link can be used in the following applications:
● Simple connection of complex sensors/actuators with a large number of parameters to
the control.
● Optimum replacement of IO-Link modules for sensor/actuator boxes when connecting
binary sensors.
In both cases, all diagnostics data is transmitted to the higher-level control via IO-Link.
Parameter settings can be changed during operation. A sensor/actuator can be replaced
without a programming device/PC thanks to the central data storage feature.
The IO-Link range comprises:
● IO-Link master
● IO-Link module K20
● IO-Link starting controls
● IO-Link switching controls
● IO-Link sensors
$XWRPDWLRQVWUXFWXUHZLWKRXW,2/LQN $XWRPDWLRQVWUXFWXUHZLWK,2/LQN
9LVXDOLVDWLRQ
(QJLQHHULQJ
'LVWULEXWHG
,2
3UR[LPLW\VZLWFK 6ZLWFKLQJGHYLFHV
6ZLWFKLQJGHYLFHJURXSV
'LVWULEXWHG
,2
0(6 9LVXDOLVLHUXQJ
(QJLQHHULQJ
0(6
&RPPXQLFDWLRQ
&RPPXQLFDWLRQ
352),%86
352),1(7,2
352),1(7,2
352),%86

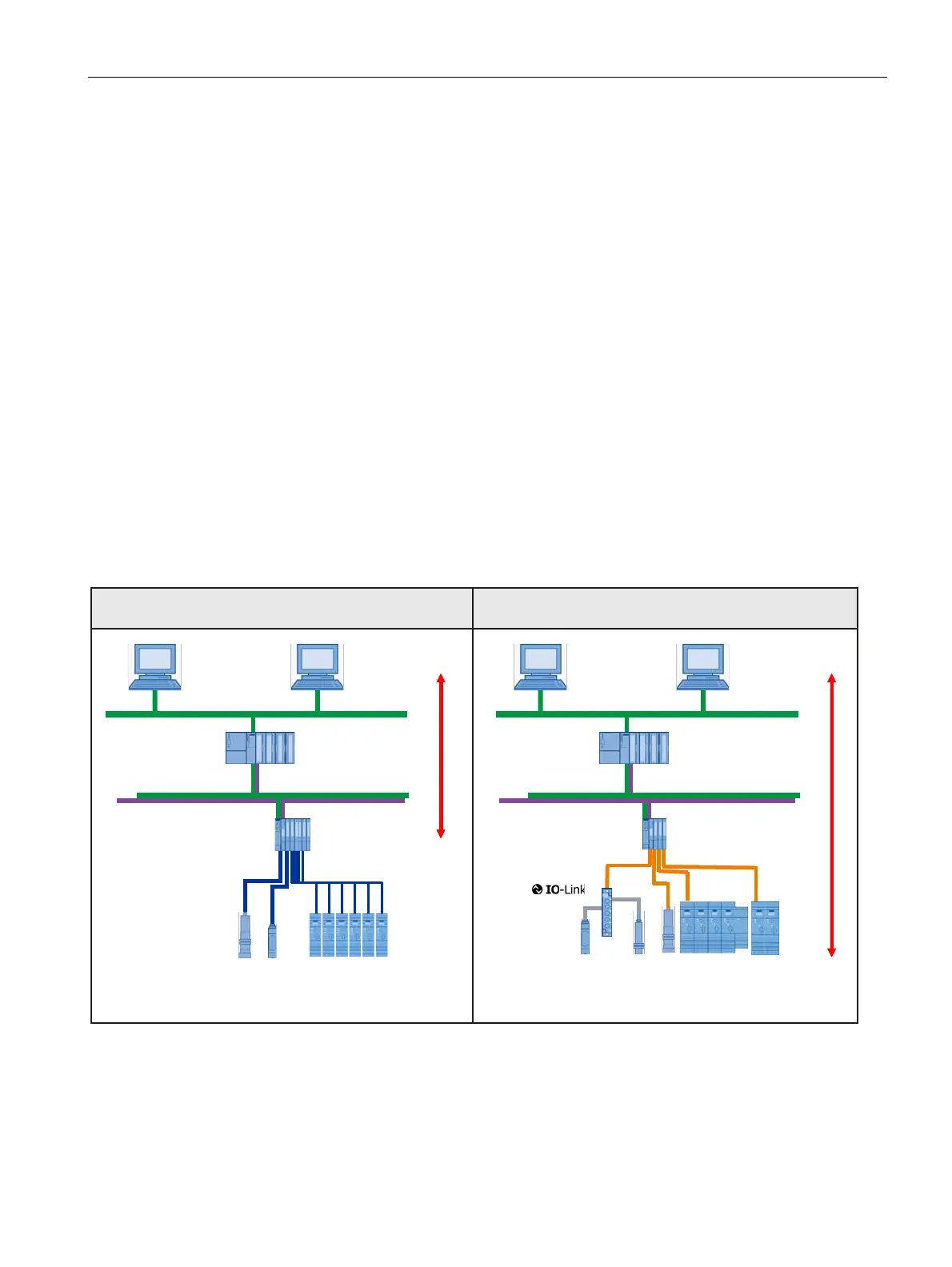

Figure 1-41 Comparison of automation structures with and without IO-Link
