SIRIUS 3RV2 motor starter protectors
4.9 Accessories
SIRIUS Innovations
414 System Manual, 01/2011, A8E56203870002-03
4.9.4.2 Mounting
Mounting signaling switches

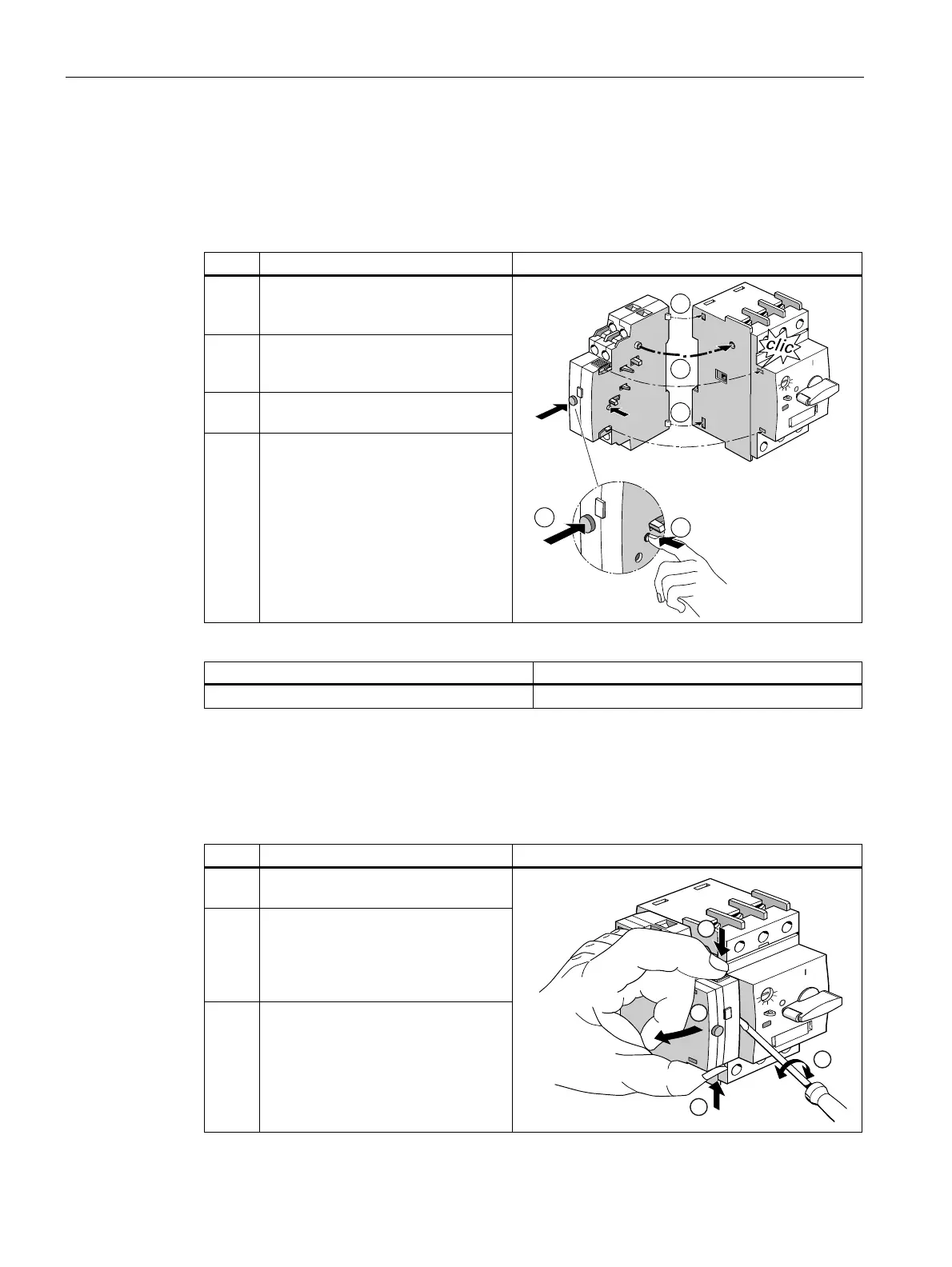

Table 4- 13 Mounting a signaling switch
Step Operating instruction Figure
1 Press and hold down the transport
lock on the inside of the signaling
switch.
2 Then also press the blue RESET
button on the front of the signaling
switch until it engages.
3 Attach the signaling switch to the rear
of the motor starter protector.
4 Press the signaling switch to the
motor starter protector until you hear
it engage.





Reference
More information ... Is available in ...
About connection the chapter titled Circuit diagrams (Page 482)
4.9.4.3 Disassembly
Disassembling signaling switches
Table 4- 14 Disassembling a signaling switch
Step Operating instruction Figure
1 Press the clips on the top and bottom
of the signaling switch together.
2 Run a screwdriver between the motor
starter protector and the signaling
switch. Dislodge the signaling switch
from the motor starter protector by
carefully turning the screwdriver.
3 Remove the signaling switch from the
side of the motor starter protector.




