SIRIUS 3RV2 motor starter protectors
4.9 Accessories
SIRIUS Innovations
412 System Manual, 01/2011, A8E56203870002-03
4.9.3.3 Disassembly
Note
The auxiliary switches are disassembled in the same way for all sizes.
Disassembling auxiliary switches

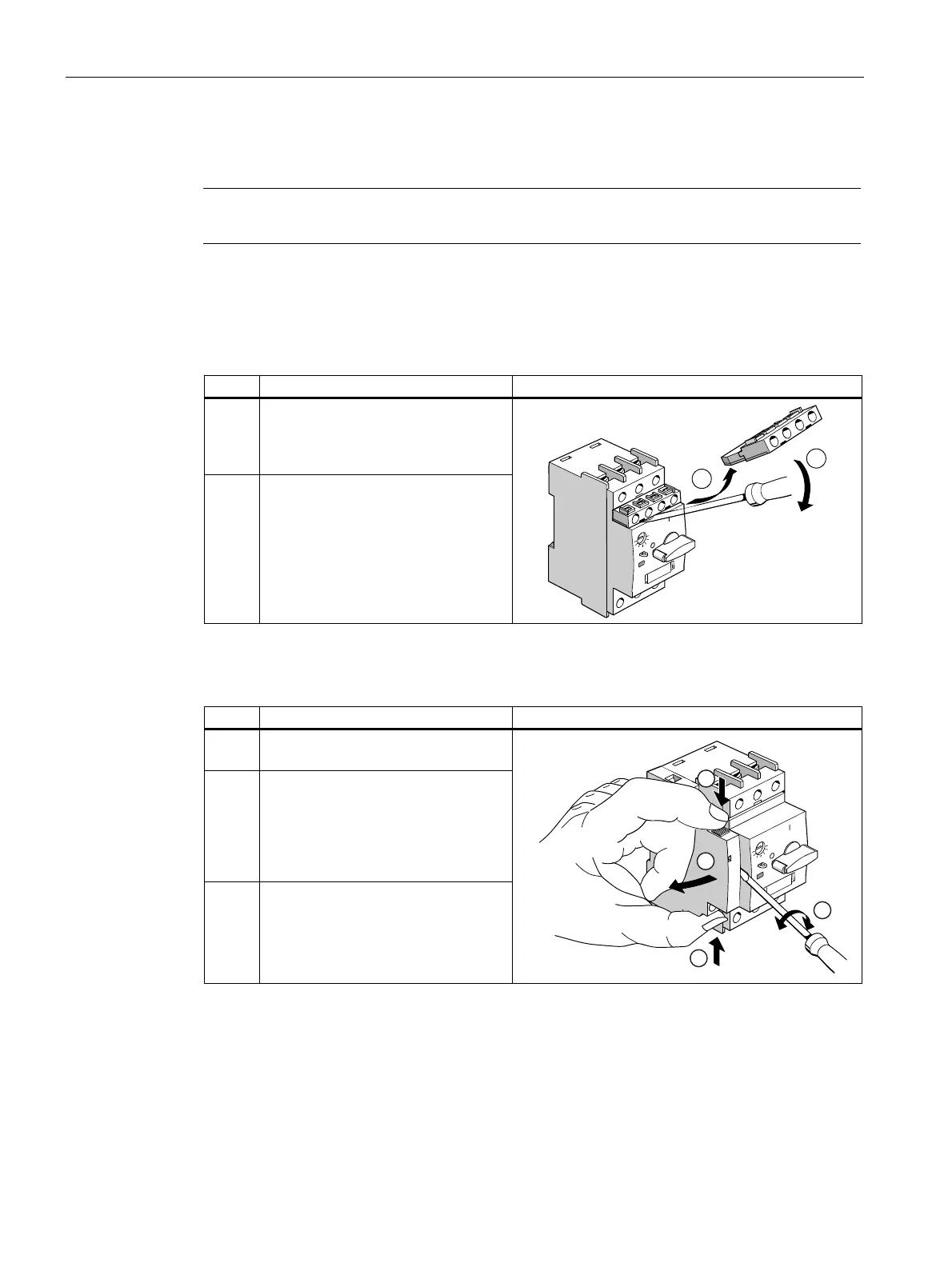

Table 4- 11 Disassembling a transverse auxiliary switch
Step Operating instruction Figure
1 Slide a screwdriver underneath the
transverse auxiliary switch. Using the
screwdriver, carefully dislodge the
auxiliary switch.
2 Pull the transverse auxiliary switch
out at an angle and remove it from
the motor starter protector.


Table 4- 12 Disassembling a lateral auxiliary switch
Step Operating instruction Figure
1 Press the clips on the top and bottom
of the lateral auxiliary switch together.
2 Run a screwdriver between the motor
starter protector and the lateral
auxiliary switch. Dislodge the auxiliary
switch from the motor starter
protector by carefully turning the
screwdriver.
3 Remove the lateral auxiliary switch
from the side of the motor starter
protector.




