SIRIUS 3RT2 contactors/contactor assemblies
2.9 Dimension drawings (dimensions in mm)
SIRIUS Innovations
290 System Manual, 01/2011, A8E56203870002-03
3RH201./3RH21..(0LA0) contactor relays with extended operating range in spring-loaded connection
system

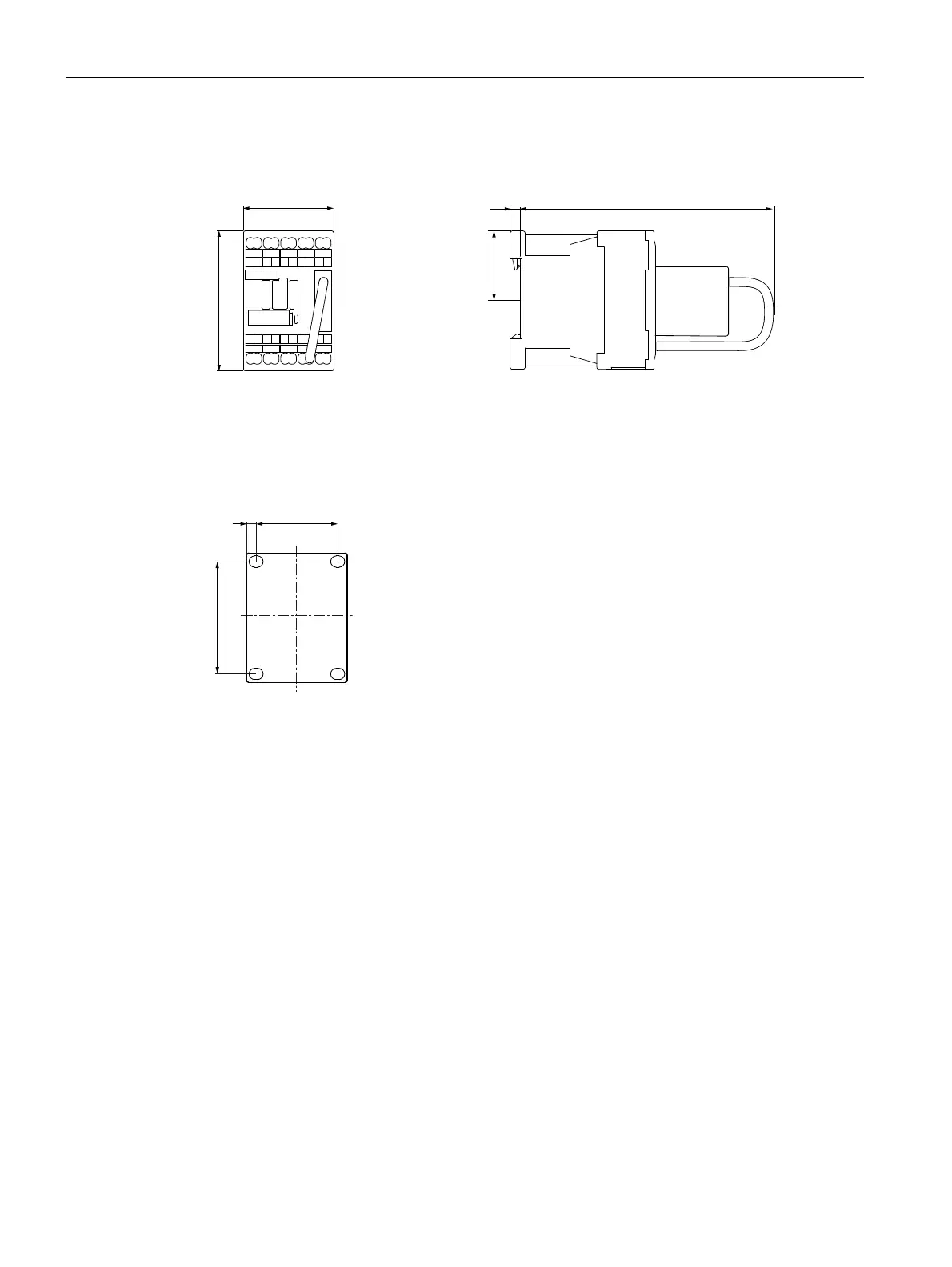

Figure 2-44 3RH201. and 3RH21.. contactor relays with extended operating range (spring-loaded
connection system)
Drilling plan for 3RT2.1.-1/3RT2.1.-4./3RT2.1.-2 contactors and 3RH21.. 1/3RH21..-4/3RH21..-
2 contactor relays
50
35
5
Figure 2-45 Drilling plan for contactors and contactor relays (size S00)
