SIRIUS 3RV2 motor starter protectors
4.9 Accessories
SIRIUS Innovations
420 System Manual, 01/2011, A8E56203870002-03

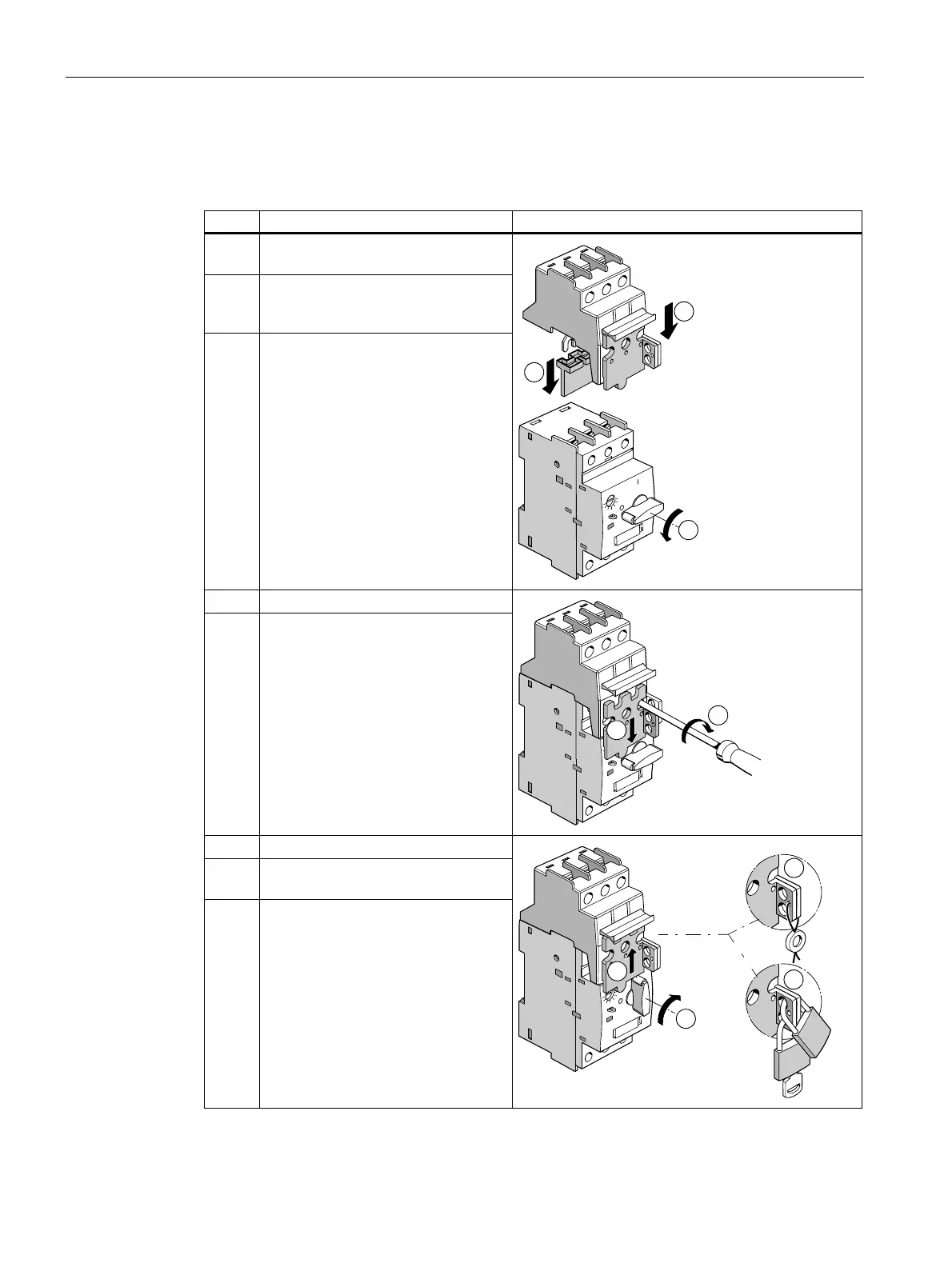

Mounting the disconnector module
Table 4- 20 Mounting the disconnector module
Step Operating instruction Figure
1 Set the rotary button on the motor
starter protector to O.
2 Remove the protective cover from the
terminal lugs on the disconnector
module.
3 Set the disconnector module down on
the motor starter protector. Make sure
that the terminal lugs on the
disconnector module slot into the
corresponding openings.



4 Slide the closing lockout down.
5 Screw the main conductor terminals
tight on the motor starter protector.


6 Slide the closing lockout up.
7 Set the rotary button on the motor
starter protector to I.
8 Secure the disconnector module so
that the isolating plug cannot be
removed when the motor starter
protector is active.




