SIRIUS 3RU2/3RB3 overload relays
5.9 Accessories
SIRIUS Innovations
528 System Manual, 01/2011, A8E56203870002-03

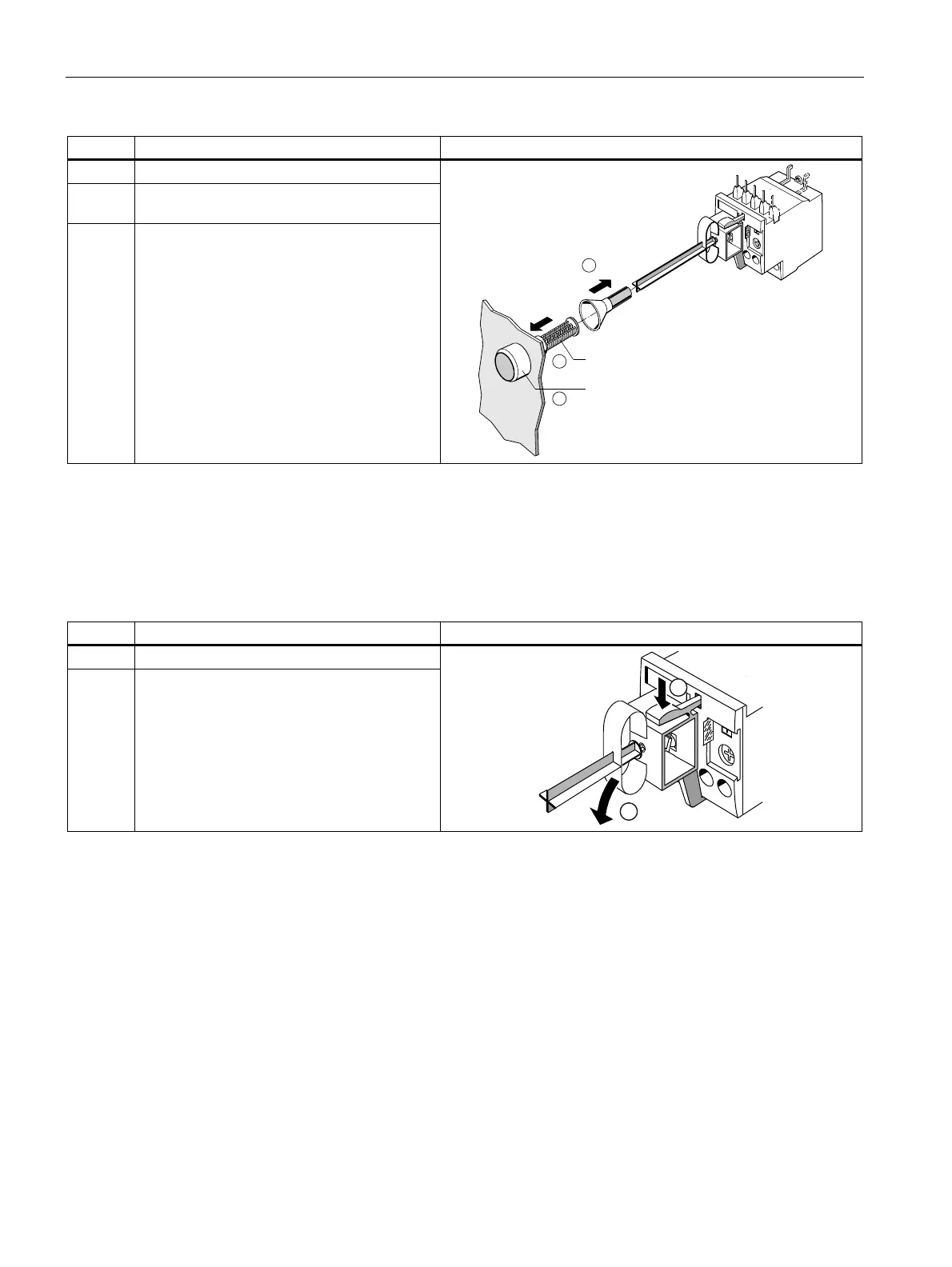

Step Operating instruction Figure
3 Attach the former to the release slide.
3 Fit the pushbutton (3SB3000-0EA11) in the
front cover.
4 (Optional) Attach the pushbutton to the
extension plunger (3SX1335).
3SX1335
3SB3000-0EA11
3
4
5
Disassembly
The figure below shows how to disassemble the holder based on the example of the
3RU21 thermal overload relay:
Table 5- 25 Disassembling the release slide
Step Operating instruction Figure
1 Press the locking latch down.
2 Tilt the module toward you and take it off the
overload relay.


