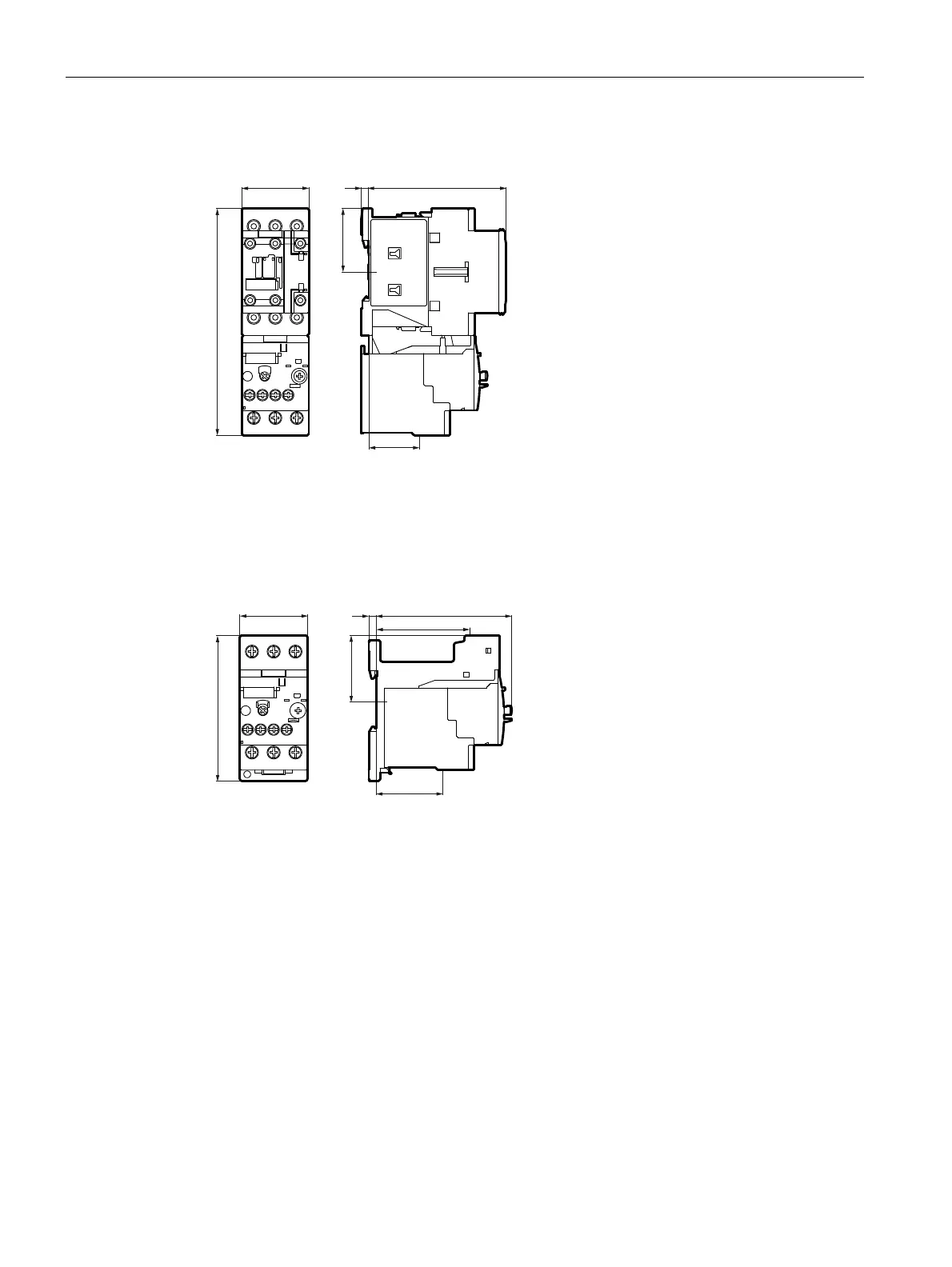

5.11 Dimension drawings (dimensions in mm)
SIRIUS Innovations
554 System Manual, 01/2011, A8E56203870002-03
3RU2126-..B0 (S0)
43
5
a
152
4545
b
a AC: 92; DC: 102
b AC: 34; DC: 44
Figure 5-11 3RU2126-..B0
3RU2126-4.B1 (S0)
44
5
90
97
45
62
44
Figure 5-12 3RU2126-4.B1
